E52 Z8 S62 Roadster / Rear Axle/ Rear Axle Support Wheel Suspension
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

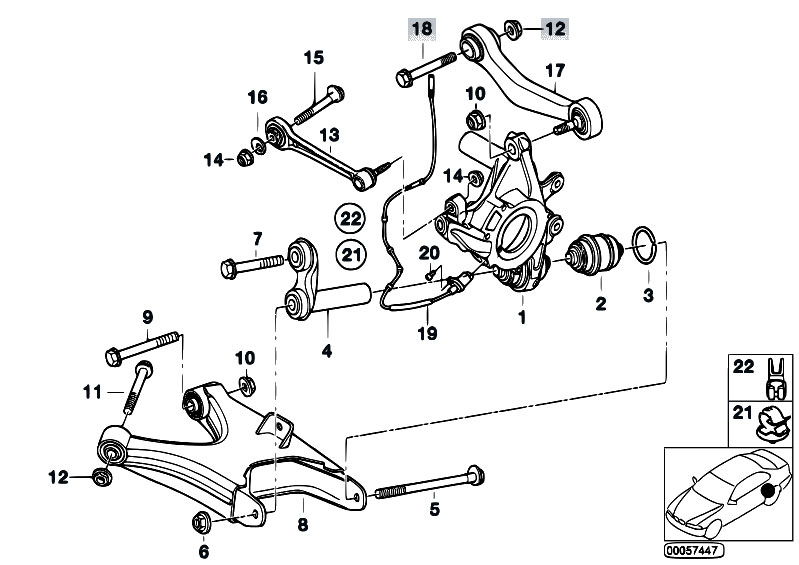

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33326753013 | Wheel carrier, rear left | 5.140 kg | 985.02 €985.02 $ | ||||
| 1 | 33326753014 | Wheel carrier, rear right | 5.140 kg | 985.02 €985.02 $ | ||||
| 2 | 33326767748 | Ball joint | 0.540 kg | 87.99 €87.99 $ | ||||
| 3 | 33321091687 | Snap ring | 0.010 kg | 5.01 €5.01 $ | ||||
| 4 | 33326770749 | INTEGRAL LINK | 0.670 kg | 165.76 €165.76 $ | ||||
| 5 | 33326751096 | ECCENTRIC BOLT | M16X1,5X255 | 0.395 kg | 15.16 €15.16 $ | |||
| 6 | 33326760383 | Self-locking collar nut | M16X1,5-10 ZNS3 | 0.060 kg | 11.39 €11.39 $ | |||
| 7 | 33321091583 | Hex Bolt with washer | M12X1,5X67 ZNS | 0.080 kg | 2.18 €2.18 $ | |||
| 7 | 33326763463 | Hex Bolt with washer | M12X1,5X67 ZNS3 | 0.080 kg | 5.51 €5.51 $ | |||
| 8 | 33326750829 | LEFT SWING PART | 5.250 kg | 1,324.20 €1,324.20 $ | ||||
| 8 | 33326750830 | RIGHT SWING PART | 5.250 kg | 1,324.20 €1,324.20 $ | ||||
| 9 | 33321096593 | Collar screw | M14X1,5X98-10.9 | 0.140 kg | 14.66 €14.66 $ | |||
| 10 | 33306760349 | Self-locking collar nut | M14X1,5-10 ZNS3 | 0.040 kg | 4.27 €4.27 $ | |||
| 11 | 33321096746 | Hexagon collar screw | M12X1,5X92 ZNS | 0.104 kg | 2.60 €2.60 $ | |||
| 11 | 33326760392 | Hex screw with collar | M12X1,5X92-10.9 | 0.100 kg | 8.58 €8.58 $ | |||
| 12 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.22 €1.22 $ | |||
| 13 | 33326779820 | Guiding suspension link with mounting | 0.463 kg | 343.56 €343.56 $ | ||||
| 14 | 33306760587 | Hex nut with flange | M10-10 ZNS3 | 0.010 kg | 1.37 €1.37 $ | |||
| 15 | 33321093456 | Original OEM part | 0.100 kg | 3.76 €3.76 $ | ||||
| 15 | 33306760591 | ECCENTRIC BOLT | M10X66 ZNS3 | 0.060 kg | 12.42 €12.42 $ | |||
| 16 | 33321093455 | Original OEM part | 0.100 kg | 1.11 €1.11 $ | ||||
| 16 | 33306760592 | Eccentric flat washer | 0.010 kg | 5.03 €5.03 $ | ||||
| 17 | 33326770059 | Wishbone, left | 1.382 kg | 450.61 €450.61 $ | ||||
| 17 | 33326770060 | Right wishbone | 1.382 kg | 450.61 €450.61 $ | ||||
| 18 | 33321094603 | Original OEM part | 0.100 kg | 1.62 €1.62 $ | ||||
| 18 | 33326760389 | Collar screw | M12X1,5X70-10.9 | 0.080 kg | 10.19 €10.19 $ | |||
| 19 | 34526756374 | Pulse generator, ABS | 0.062 kg | 222.95 €222.95 $ | ||||
| 20 | 07119901438 | Fillister head screw | M6X16-ZNS | 0.005 kg | 0.29 €0.29 $ | |||
| 21 | 61138368029 | Cable clamp | 0.000 kg | 1.08 €1.08 $ | ||||
| 22 | 34521164096 | Bracket ABS-trigger contact | 0.001 kg | 1.30 €1.30 $ |
