E60 520d M47N2 Sedan / Engine/ Cylinder Head Cover
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

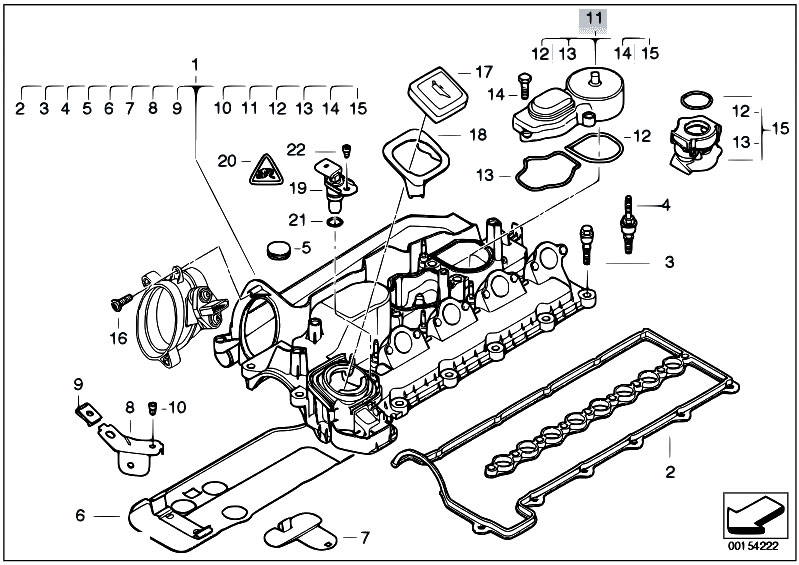

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11127799223 | Cylinder head cover | 3.550 kg | 540.19 €540.19 $ | ||||
| 2 | 11127794495 | Profile-gasket | 0.153 kg | 90.65 €90.65 $ | ||||
| 3 | 11120006838 | Set fixing element, exterior | 0.290 kg | 43.24 €43.24 $ | ||||
| 3 | 11120036233 | Set fixing element, exterior | 0.298 kg | 70.93 €70.93 $ | ||||
| 4 | 11120146841 | Original OEM part | 0.100 kg | 41.80 €41.80 $ | ||||
| 4 | 11120036236 | Set fixing element, interior | 0.186 kg | 63.54 €63.54 $ | ||||
| 5 | 11122247705 | Blind plug | 0.000 kg | 2.55 €2.55 $ | ||||
| 6 | 11127792458 | HEAT PROTECTION SHIELD | 0.237 kg | 118.08 €118.08 $ | ||||
| 7 | 11122248580 | Cover lid | 0.030 kg | 26.75 €26.75 $ | ||||
| 8 | 11127787978 | Holder, cover | 0.028 kg | 51.43 €51.43 $ | ||||
| 9 | 51127070202 | Clip nut | M6-ZNS3 | 0.000 kg | 1.49 €1.49 $ | |||
| 10 | 07119910390 | Fillister head with washer | M6X12-Z1-ZNS | 0.006 kg | 0.24 €0.24 $ | |||
| 10 | 07119903055 | Fillister head with washer | M6X12-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 11 | 11127799224 | Breather | 0.290 kg | 127.69 €127.69 $ | ||||
| 12 | 11127793165 | Profile-gasket | 0.005 kg | 60.42 €60.42 $ | ||||
| 13 | 11127793166 | Profile-gasket | 0.005 kg | 13.59 €13.59 $ | ||||
| 14 | 11712248899 | Hex Bolt | 0.010 kg | 2.35 €2.35 $ | ||||
| 15 | 11127799367 | OIL SEPARATOR | 0.083 kg | 47.96 €47.96 $ | ||||
| 16 | 11127791155 | Plastic bolt | 5,0X19,5 | 0.000 kg | 1.46 €1.46 $ | |||
| 16 | 11127805414 | Plastic bolt | 5,0X19,5 | 0.000 kg | 4.45 €4.45 $ | |||
| 17 | 11127509328 | Cover lid | 0.050 kg | 30.71 €30.71 $ | ||||
| 18 | 11127787977 | Profile-gasket | 0.040 kg | 21.25 €21.25 $ | ||||
| 19 | 13627792256 | Pulse generator, camshaft | 0.020 kg | 123.40 €123.40 $ | ||||
| 20 | 12527507257 | Socket housing | 0.010 kg | 4.87 €4.87 $ | ||||
| 21 | 13627796699 | O-ring | 17X2,8 | 0.000 kg | 4.74 €4.74 $ | |||
| 22 | 11127791155 | Plastic bolt | 5,0X19,5 | 0.000 kg | 1.46 €1.46 $ | |||
| 22 | 11127805414 | Plastic bolt | 5,0X19,5 | 0.000 kg | 4.45 €4.45 $ |
