E60 535d M57N Sedan / Engine/ Oil Supply Turbocharger
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

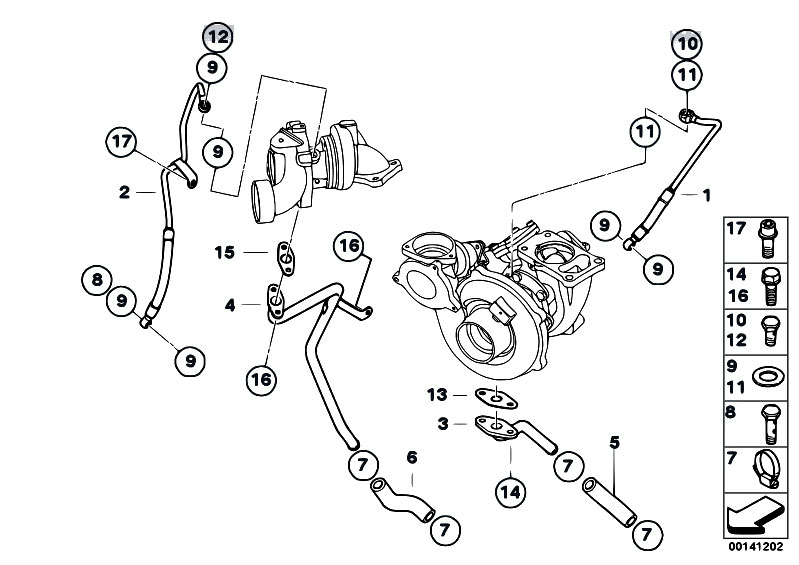

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11427792245 | Oil pipe | 0.100 kg | 74.31 €74.31 $ | ||||
| 2 | 11427792243 | Oil pipe | 0.120 kg | 67.80 €67.80 $ | ||||
| 3 | 11427792246 | Return pipe | 0.120 kg | 67.80 €67.80 $ | ||||
| 4 | 11427792244 | Return pipe | 0.240 kg | 91.26 €91.26 $ | ||||
| 5 | 11422247921 | Hose | 0.030 kg | 17.14 €17.14 $ | ||||
| 6 | 11427794552 | Hose | 0.040 kg | 29.37 €29.37 $ | ||||
| 7 | 07129952109 | Hose clamp | L18-24 | 0.012 kg | 1.88 €1.88 $ | |||
| 8 | 11427792255 | HOLLOW BOLT | M10X1X30 | 0.020 kg | 11.46 €11.46 $ | |||
| 9 | 07119905041 | Gasket ring | A10X15-CU | 0.001 kg | 0.40 €0.40 $ | |||
| 10 | 07119905196 | HOLLOW BOLT | M12X1,5X24 | 0.010 kg | 14.71 €14.71 $ | |||
| 11 | 07119963129 | Gasket ring | A12X15-CU | 0.000 kg | 0.47 €0.47 $ | |||
| 12 | 11422244609 | HOLLOW BOLT | M10X1X19 | 0.010 kg | 7.30 €7.30 $ | |||
| 13 | 11427792254 | Gasket Asbestos Free | 0.010 kg | 21.50 €21.50 $ | ||||
| 14 | 07119904375 | Fillister head screw | M8X20-8.8-ZNS3 | 0.010 kg | 1.03 €1.03 $ | |||
| 15 | 11422246091 | Gasket Asbestos Free | 0.000 kg | 8.05 €8.05 $ | ||||
| 16 | 07119905964 | Hex Bolt | M6X14-ZNNIV SI | 0.005 kg | 0.49 €0.49 $ | |||
| 17 | 07129903984 | Isa screw | M8X16-8.8-ZNS3 | 0.010 kg | 2.36 €2.36 $ |
