E61 525i M54 Touring / Steering/ Power Steering Oil Pipe Dynamic Drive
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

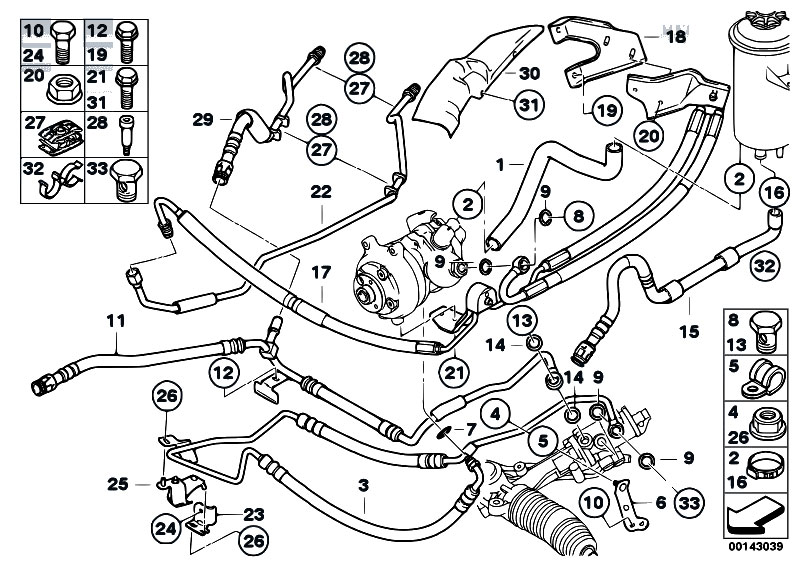

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 32416761509 | Suction pipe Dynamic Drive | 0.160 kg | 68.67 €68.67 $ | ||||
| 1 | 32416761509 | Suction pipe Dynamic Drive | 0.160 kg | 68.67 €68.67 $ | ||||
| 2 | 32416763470 | Hose clamp | D= 25MM | 0.010 kg | 3.76 €3.76 $ | |||
| 2 | 32416763470 | Hose clamp | D= 25MM | 0.010 kg | 3.76 €3.76 $ | |||
| 3 | 32416766139 | Expansion hose | 0.690 kg | 388.64 €388.64 $ | ||||
| 3 | 32416766139 | Expansion hose | 0.690 kg | 388.64 €388.64 $ | ||||
| 4 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 4 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 4 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 4 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 5 | 12141305028 | Clamp | D=10/6,4 | 0.010 kg | 26.83 €26.83 $ | |||
| 5 | 12141305028 | Clamp | D=10/6,4 | 0.010 kg | 26.83 €26.83 $ | |||
| 6 | 32416765192 | Bracket, expansion hose | 0.020 kg | 10.08 €10.08 $ | ||||
| 6 | 32416765192 | Bracket, expansion hose | 0.020 kg | 10.08 €10.08 $ | ||||
| 7 | 64508390601 | Gasket ring | D=7,65MM | 0.000 kg | 1.74 €1.74 $ | |||
| 7 | 64508390601 | Gasket ring | D=7,65MM | 0.000 kg | 1.74 €1.74 $ | |||
| 8 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.87 €1.87 $ | |||
| 8 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.87 €1.87 $ | |||
| 8 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.74 €5.74 $ | |||
| 8 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.74 €5.74 $ | |||
| 9 | 32411093596 | Gasket ring | A14X20-CUSN | 0.002 kg | 1.39 €1.39 $ | |||
| 9 | 32411093596 | Gasket ring | A14X20-CUSN | 0.002 kg | 1.39 €1.39 $ | |||
| 9 | 07119906464 | Gasket ring | A14X18-CUSN | 0.001 kg | 0.57 €0.57 $ | |||
| 9 | 07119906464 | Gasket ring | A14X18-CUSN | 0.001 kg | 0.57 €0.57 $ | |||
| 9 | 07119906464 | Gasket ring | A14X18-CUSN | 0.001 kg | 0.57 €0.57 $ | |||
| 9 | 07119906464 | Gasket ring | A14X18-CUSN | 0.001 kg | 0.57 €0.57 $ | |||
| 10 | 07119902937 | Hex Bolt | M6X15-U1-8.8 | 0.010 kg | 1.00 €1.00 $ | |||
| 10 | 07119902937 | Hex Bolt | M6X15-U1-8.8 | 0.010 kg | 1.00 €1.00 $ | |||
| 11 | 32416765678 | Return pipe | 0.580 kg | 193.56 €193.56 $ | ||||
| 11 | 32416772945 | Return pipe | 0.580 kg | 184.25 €184.25 $ | ||||
| 11 | 32416766140 | Return pipe | 0.650 kg | 193.56 €193.56 $ | ||||
| 11 | 32416772947 | Return pipe | 0.640 kg | 314.33 €314.33 $ | ||||
| 12 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 12 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 12 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 12 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 13 | 32411094909 | HOLLOW BOLT | M16X28 | 0.040 kg | 4.40 €4.40 $ | |||
| 13 | 32411094909 | HOLLOW BOLT | M16X28 | 0.040 kg | 4.40 €4.40 $ | |||
| 13 | 32416783887 | HOLLOW BOLT | M16X28 | 0.040 kg | 6.07 €6.07 $ | |||
| 13 | 32416783887 | HOLLOW BOLT | M16X28 | 0.040 kg | 6.07 €6.07 $ | |||
| 13 | 32416783887 | HOLLOW BOLT | M16X28 | 0.040 kg | 6.07 €6.07 $ | |||
| 13 | 32416783887 | HOLLOW BOLT | M16X28 | 0.040 kg | 6.07 €6.07 $ | |||
| 14 | 32411093597 | Gasket ring | A16X22-CUSN | 0.002 kg | 1.30 €1.30 $ | |||
| 14 | 32411093597 | Gasket ring | A16X22-CUSN | 0.002 kg | 1.30 €1.30 $ | |||
| 15 | 32416761514 | Radiator return line | 0.160 kg | 76.73 €76.73 $ | ||||
| 15 | 32416761514 | Radiator return line | 0.160 kg | 76.73 €76.73 $ | ||||
| 16 | 32416751127 | Hose clamp | 0.010 kg | 2.05 €2.05 $ | ||||
| 16 | 32416751127 | Hose clamp | 0.010 kg | 2.05 €2.05 $ | ||||
| 17 | 32416766388 | Expansion hose Dynamic Drive | I | 1.350 kg | 418.79 €418.79 $ | |||
| 17 | 32416766388 | Expansion hose Dynamic Drive | I | 1.350 kg | 418.79 €418.79 $ | |||
| 18 | 32416761522 | Bracket, expansion hose | 0.116 kg | 22.13 €22.13 $ | ||||
| 18 | 32416761522 | Bracket, expansion hose | 0.116 kg | 22.13 €22.13 $ | ||||
| 19 | 07119902968 | Hex Bolt with washer | M8X20-Z1-ZNS3 | 0.014 kg | 0.71 €0.71 $ | |||
| 19 | 07119902968 | Hex Bolt with washer | M8X20-Z1-ZNS3 | 0.014 kg | 0.71 €0.71 $ | |||
| 20 | 07119900560 | Self-locking hex nut | M6-ZNS | 0.003 kg | 0.12 €0.12 $ | |||
| 20 | 07119900560 | Self-locking hex nut | M6-ZNS | 0.003 kg | 0.12 €0.12 $ | |||
| 20 | 07119905949 | Self-locking hex nut | M6-8-ZNNIV SI | 0.004 kg | 0.69 €0.69 $ | |||
| 20 | 07119905949 | Self-locking hex nut | M6-8-ZNNIV SI | 0.004 kg | 0.69 €0.69 $ | |||
| 21 | 07119901436 | Hex Bolt with washer | M6X14-Z1-ZNS | 0.010 kg | 0.22 €0.22 $ | |||
| 21 | 07119901436 | Hex Bolt with washer | M6X14-Z1-ZNS | 0.010 kg | 0.22 €0.22 $ | |||
| 22 | 32416761516 | Expansion hose Dynamic Drive | II | 0.330 kg | 82.72 €82.72 $ | |||
| 22 | 32416761516 | Expansion hose Dynamic Drive | II | 0.330 kg | 82.72 €82.72 $ | |||
| 23 | 32416761521 | Bracket, expansion hose | 0.020 kg | 11.26 €11.26 $ | ||||
| 23 | 32416761521 | Bracket, expansion hose | 0.020 kg | 11.26 €11.26 $ | ||||
| 24 | 32416756161 | Hex Bolt | M6X18MM | 0.010 kg | 0.69 €0.69 $ | |||
| 24 | 32416756161 | Hex Bolt | M6X18MM | 0.010 kg | 0.69 €0.69 $ | |||
| 24 | 32416782036 | Hex Bolt | M6X18MM | 0.010 kg | 3.49 €3.49 $ | |||
| 24 | 32416782036 | Hex Bolt | M6X18MM | 0.010 kg | 3.49 €3.49 $ | |||
| 25 | 32416761520 | Holder with rubber mounting | 0.070 kg | 12.06 €12.06 $ | ||||
| 25 | 32416761520 | Holder with rubber mounting | 0.070 kg | 12.06 €12.06 $ | ||||
| 25 | 32416779942 | Holder with rubber mounting | 0.070 kg | 23.42 €23.42 $ | ||||
| 25 | 32416779942 | Holder with rubber mounting | 0.070 kg | 23.42 €23.42 $ | ||||
| 26 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 26 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 26 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 26 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 27 | 32416756132 | Pipe support | 0.020 kg | 13.99 €13.99 $ | ||||
| 27 | 32416756132 | Pipe support | 0.020 kg | 13.99 €13.99 $ | ||||
| 28 | 32416756159 | Collar screw | M6 | 0.020 kg | 1.65 €1.65 $ | |||
| 28 | 32416756159 | Collar screw | M6 | 0.020 kg | 1.65 €1.65 $ | |||
| 28 | 32416781748 | Collar screw | M6 | 0.020 kg | 8.47 €8.47 $ | |||
| 28 | 32416781748 | Collar screw | M6 | 0.020 kg | 8.47 €8.47 $ | |||
| 29 | 32416761518 | Return pipe Dynamic Drive | 0.230 kg | 161.23 €161.23 $ | ||||
| 29 | 32416761518 | Return pipe Dynamic Drive | 0.230 kg | 161.23 €161.23 $ | ||||
| 30 | 32416761527 | Heat resistant plate | 0.080 kg | 13.45 €13.45 $ | ||||
| 30 | 32416761527 | Heat resistant plate | 0.080 kg | 13.45 €13.45 $ | ||||
| 31 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 31 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 31 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 31 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 33 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.87 €1.87 $ | |||
| 33 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.87 €1.87 $ | |||
| 33 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.74 €5.74 $ | |||
| 33 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.74 €5.74 $ | |||
| 33 | 32411093730 | Banjo bolt with check valve | M14X1,5X27,4 | 0.030 kg | 8.70 €8.70 $ | |||
| 33 | 32411093730 | Banjo bolt with check valve | M14X1,5X27,4 | 0.030 kg | 8.70 €8.70 $ | |||
| 33 | 32416781261 | Banjo bolt with check valve | M14X1,5X27,4 | 0.030 kg | 23.23 €23.23 $ | |||
| 33 | 32416781261 | Banjo bolt with check valve | M14X1,5X27,4 | 0.030 kg | 23.23 €23.23 $ |
