E61 535d M57N Touring / Engine/ Cylinder Head Cover
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

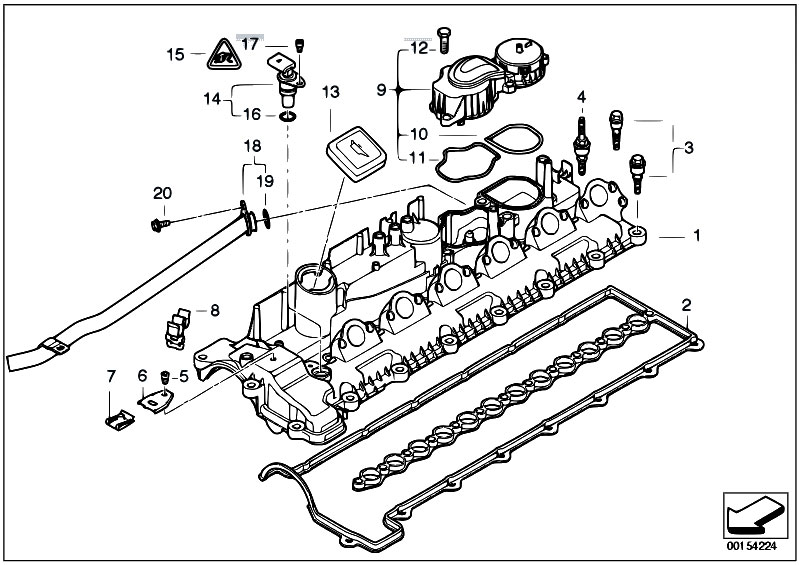

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11127792939 | Cylinder head cover | 3.270 kg | 391.84 €391.84 $ | ||||
| 2 | 11127793249 | Original OEM part | 0.100 kg | 31.34 €31.34 $ | ||||
| 2 | 11127796378 | Profile-gasket | 0.200 kg | 100.64 €100.64 $ | ||||
| 3 | 11120036235 | Set fixing element, exterior | 0.370 kg | 322.22 €322.22 $ | ||||
| 4 | 11120006843 | Original OEM part | 0.100 kg | 40.82 €40.82 $ | ||||
| 5 | 07119910390 | Fillister head with washer | M6X12-Z1-ZNS | 0.006 kg | 0.24 €0.24 $ | |||
| 6 | 11127787691 | Metal bracket | 0.011 kg | 15.25 €15.25 $ | ||||
| 7 | 51127070202 | Clip nut | M6-ZNS3 | 0.000 kg | 1.49 €1.49 $ | |||
| 8 | 11127796023 | Hose clamp | D=6/8MM | 0.002 kg | 6.10 €6.10 $ | |||
| 9 | 11127794175 | Breather | 0.279 kg | 115.63 €115.63 $ | ||||
| 10 | 11127793165 | Profile-gasket | 0.005 kg | 60.42 €60.42 $ | ||||
| 11 | 11127793166 | Profile-gasket | 0.005 kg | 13.59 €13.59 $ | ||||
| 12 | 11712248899 | Hex Bolt | 0.010 kg | 2.35 €2.35 $ | ||||
| 13 | 11127509328 | Cover lid | 0.050 kg | 30.71 €30.71 $ | ||||
| 14 | 13627792256 | Pulse generator, camshaft | 0.020 kg | 123.40 €123.40 $ | ||||
| 15 | 12527507257 | Socket housing | 0.010 kg | 4.87 €4.87 $ | ||||
| 16 | 13627796699 | O-ring | 17X2,8 | 0.000 kg | 4.74 €4.74 $ | |||
| 17 | 11127791155 | Plastic bolt | 5,0X19,5 | 0.000 kg | 1.46 €1.46 $ | |||
| 18 | 11127792301 | Vent pipe | 0.260 kg | 93.31 €93.31 $ | ||||
| 19 | 11127798103 | O-ring | 20,22X3,53 | 0.001 kg | 6.74 €6.74 $ | |||
| 20 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ |
