E61N 525xd M57N2 Touring / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

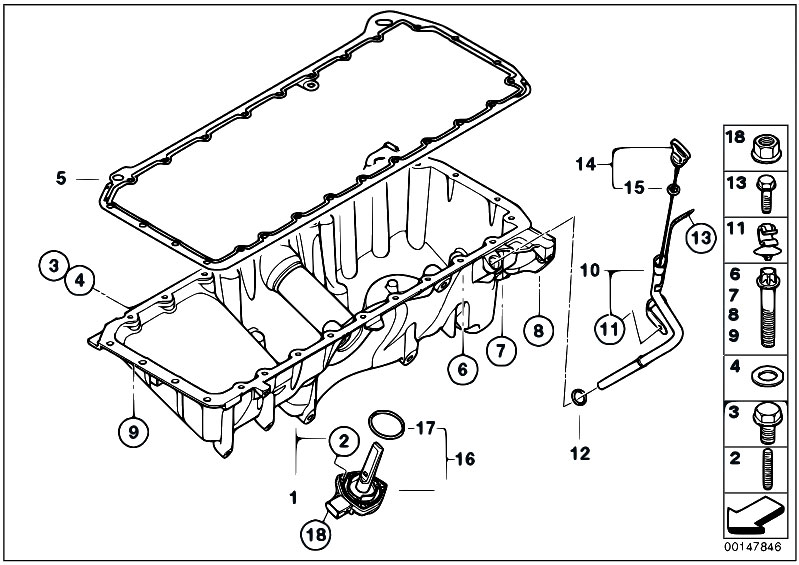

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11137806222 | Oil pan | 4.960 kg | 1,258.88 €1,258.88 $ | ||||
| 2 | 07129904544 | Stud bolt | M6X30-ZNNIV SI | 0.010 kg | 2.80 €2.80 $ | |||
| 3 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.22 €5.22 $ | |||
| 4 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 5 | 11137802669 | Gasket Steel | 0.160 kg | 42.35 €42.35 $ | ||||
| 6 | 11137800619 | Torx bolt | M6X22 | 0.010 kg | 1.19 €1.19 $ | |||
| 7 | 11137800622 | Torx bolt | M6X60 | 0.020 kg | 1.89 €1.89 $ | |||
| 8 | 11137800623 | Torx bolt | M6X100 | 0.020 kg | 2.54 €2.54 $ | |||
| 9 | 11137800621 | Torx bolt | M8X30 | 0.010 kg | 1.49 €1.49 $ | |||
| 10 | 11437793022 | Guide tube | 0.230 kg | 195.13 €195.13 $ | ||||
| 11 | 13532245954 | Cable clamp | 0.000 kg | 5.70 €5.70 $ | ||||
| 12 | 11437794484 | O-ring | 11,7X3 | 0.000 kg | 3.19 €3.19 $ | |||
| 13 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ | |||
| 14 | 11437801395 | Dipstick | 0.020 kg | 27.84 €27.84 $ | ||||
| 15 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.04 €1.04 $ | |||
| 16 | 12617567723 | Oil levelling sensor | 0.150 kg | 174.99 €174.99 $ | ||||
| 17 | 12611744292 | Gasket ring | 0.000 kg | 6.42 €6.42 $ | ||||
| 18 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ |
