E65 745d M67N Sedan / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

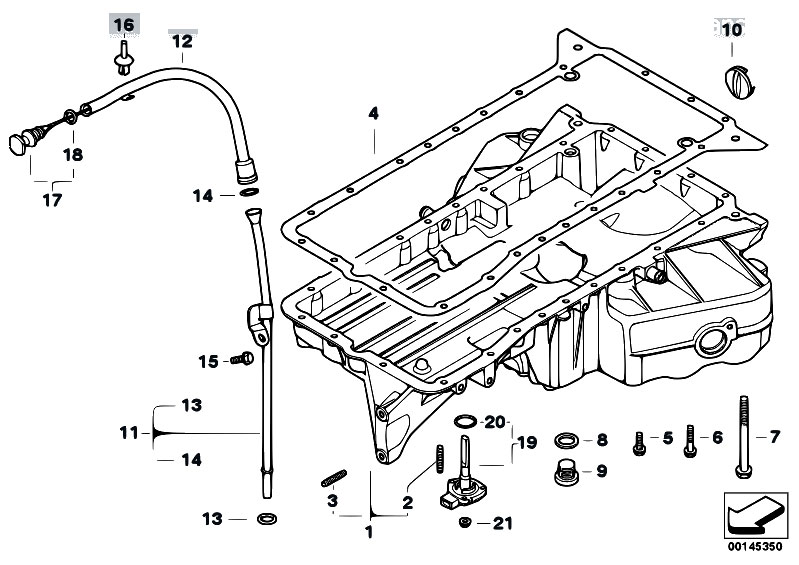

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11137792441 | Oil pan | 7.860 kg | 872.12 €872.12 $ | ||||
| 2 | 07129904544 | Stud bolt | M6X30-ZNNIV SI | 0.010 kg | 2.80 €2.80 $ | |||
| 3 | 07129903965 | Stud bolt | M8X45-8.8-ZNS3 | 0.013 kg | 3.65 €3.65 $ | |||
| 4 | 11137798479 | Gasket Steel | 0.081 kg | 81.60 €81.60 $ | ||||
| 5 | 07119902924 | Hex Bolt with washer | M6X22-U1-ZNS3 | 0.007 kg | 0.75 €0.75 $ | |||
| 6 | 11137800621 | Torx bolt | M8X30 | 0.010 kg | 1.49 €1.49 $ | |||
| 7 | 11132246990 | Original OEM part | 0.100 kg | 1.49 €1.49 $ | ||||
| 7 | 11137800624 | Torx bolt | M8X80 | 0.030 kg | 22.87 €22.87 $ | |||
| 8 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 9 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.22 €5.22 $ | |||
| 10 | 11137789024 | Cover lid | 0.030 kg | 11.77 €11.77 $ | ||||
| 11 | 11437795623 | Guide tube, bottom | 0.010 kg | 64.53 €64.53 $ | ||||
| 12 | 11437795746 | Guide tube, top | 0.010 kg | 107.72 €107.72 $ | ||||
| 13 | 11437791820 | O-ring | 9,7X3 | 0.000 kg | 2.99 €2.99 $ | |||
| 14 | 11431287541 | O-ring | 14,5X3 | 0.000 kg | 1.91 €1.91 $ | |||
| 15 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ | |||
| 16 | 51161881149 | Expanding rivet | 0.000 kg | 0.30 €0.30 $ | ||||
| 17 | 11437798787 | Dipstick | 0.050 kg | 27.84 €27.84 $ | ||||
| 18 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.04 €1.04 $ | |||
| 19 | 12617567723 | Oil levelling sensor | 0.150 kg | 177.07 €177.07 $ | ||||
| 20 | 12611744292 | Gasket ring | 0.000 kg | 6.42 €6.42 $ | ||||
| 21 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ |
