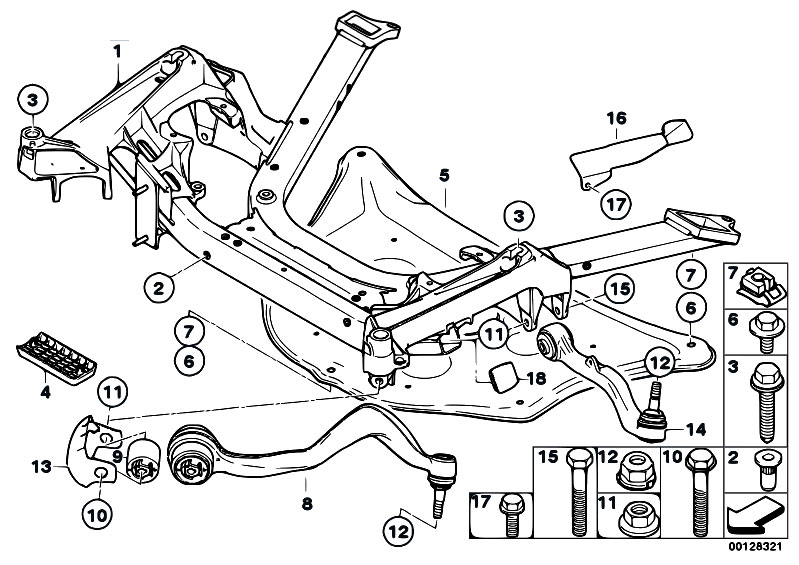

Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
1 | 31106769459 | Front axle support | 11.910 kg | 983.55 €983.55 $ | ||||
1 | 31116782457 | Front axle support | 11.880 kg | 1,256.84 €1,256.84 $ | ||||
2 | 17117571134 | Blind rivet nut, flat headed | M6 | 0.000 kg | 1.70 €1.70 $ | |||
3 | 31106770256 | Hexagon screw with flange | M12X1,5X65-10.9 | 0.090 kg | 8.07 €8.07 $ | |||
4 | 31116752307 | JACK FIXTURE | 0.040 kg | 7.04 €7.04 $ | ||||
5 | 31106774186 | Reinforcement plate | 2.230 kg | 148.72 €148.72 $ | ||||
6 | 31106772199 | Hexagon screw with flange | M10X35-10.9ZNS3 | 0.040 kg | 3.85 €3.85 $ | |||
7 | 31106779393 | PLUG-IN NUT | M10-10-ZNS3 | 0.020 kg | 4.65 €4.65 $ | |||
8 | 31126774831 | Tension strut with hydr. mount, left | 2.080 kg | 263.30 €263.30 $ | ||||
8 | 31126774832 | Tension strut with hydr. mount, right | 1.960 kg | 263.30 €263.30 $ | ||||
9 | 31120304308 | Set rubber mounting f pull rod | 0.983 kg | 76.55 €76.55 $ | ||||
10 | 31121093465 | Hex Bolt with washer | M12X1,5X120 | 0.110 kg | 2.43 €2.43 $ | |||
10 | 31106769441 | Hex Bolt with washer | M12X1,5X120 | 0.110 kg | 12.06 €12.06 $ | |||
11 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.91 €1.91 $ | |||
12 | 31106755474 | Flange nut with washer | M14X1,5-10 | 0.080 kg | 1.81 €1.81 $ | |||
14 | 31126777937 | Wishbone, left | 1.200 kg | 263.30 €263.30 $ | ||||
14 | 31126777938 | Right wishbone | 1.200 kg | 263.30 €263.30 $ | ||||
15 | 31106779386 | Hexagon screw with flange | M12X1,5X100 | 0.040 kg | 2.51 €2.51 $ | |||
15 | 33176760343 | Hex Bolt with washer | M12X100-10.9 | 0.100 kg | 7.04 €7.04 $ | |||
16 | 32416763178 | Heat Protection Plate Right | 0.077 kg | 38.56 €38.56 $ | ||||
16 | 32416763179 | Heat Protection Plate Right | 0.043 kg | 29.33 €29.33 $ | ||||
17 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
17 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
17 | 07119905399 | Hex Bolt with washer | M6X18-U1 | 0.010 kg | 0.43 €0.43 $ | |||
17 | 07119905399 | Hex Bolt with washer | M6X18-U1 | 0.010 kg | 0.43 €0.43 $ | |||
18 | 31116757537 | Blind plug | 0.010 kg | 3.04 €3.04 $ |
