E66 730Ld M57N2 Sedan / Fuel Supply/ Fuel Tank Attaching Parts
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

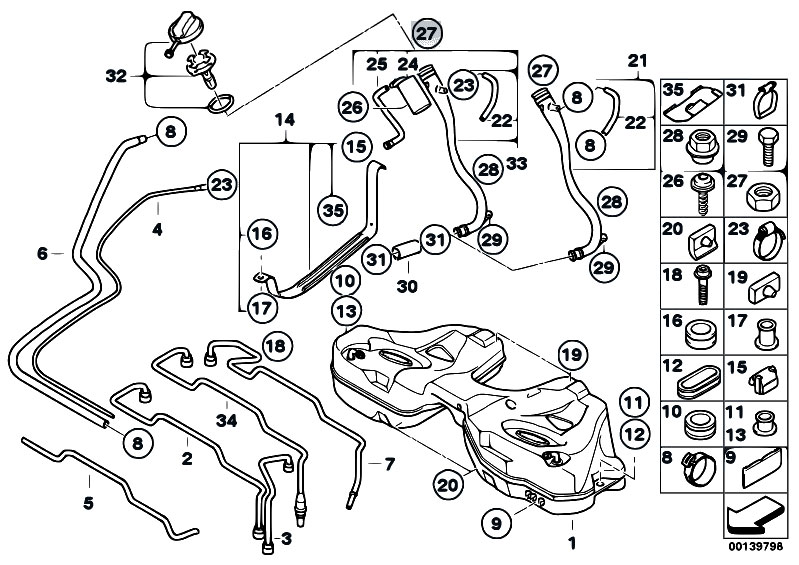

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 16116760647 | Plastic fuel tank with left sensor | 11.246 kg | 1,263.12 €1,263.12 $ | ||||
| 1 | 16117199709 | Plastic fuel tank with left sensor | 11.980 kg | 1,238.35 €1,238.35 $ | ||||
| 2 | 16116752840 | Fuel supply/return line | 0.060 kg | 64.48 €64.48 $ | ||||
| 3 | 16116760537 | FUEL RETURN LINE | 0.030 kg | 67.30 €67.30 $ | ||||
| 4 | 16117177177 | Vent line, right | 0.063 kg | 73.09 €73.09 $ | ||||
| 5 | 16116752843 | Vent line, left | 0.040 kg | 65.80 €65.80 $ | ||||
| 6 | 16117177178 | Vent pipe | 0.147 kg | 87.72 €87.72 $ | ||||
| 7 | 16116752845 | Supply line for independent heating | 0.030 kg | 67.30 €67.30 $ | ||||
| 8 | 16131181316 | Hose clamp | 0.000 kg | 2.91 €2.91 $ | ||||
| 10 | 16111182609 | Rubber grommet | 0.010 kg | 3.41 €3.41 $ | ||||
| 11 | 16111184871 | Spacer bushing, slot | 0.020 kg | 7.95 €7.95 $ | ||||
| 12 | 16111184870 | Rubber grommet, slot | 0.010 kg | 3.30 €3.30 $ | ||||
| 12 | 16117194854 | Spacer bushing, slot | 0.030 kg | 8.42 €8.42 $ | ||||
| 13 | 16111184869 | Spacer bush | 0.030 kg | 7.95 €7.95 $ | ||||
| 13 | 16117194853 | Spacer bush | 0.020 kg | 8.26 €8.26 $ | ||||
| 14 | 16116752443 | Holding strap | 0.490 kg | 17.46 €17.46 $ | ||||
| 14 | 16117195768 | Holding strap | 0.490 kg | 53.05 €53.05 $ | ||||
| 15 | 16111183136 | Damper rubber | 0.000 kg | 10.91 €10.91 $ | ||||
| 16 | 16111182454 | Rubber grommet | 0.003 kg | 3.39 €3.39 $ | ||||
| 17 | 16111182545 | Spacer | 0.010 kg | 1.26 €1.26 $ | ||||
| 17 | 16117195118 | Spacer | 0.010 kg | 13.42 €13.42 $ | ||||
| 18 | 07119904806 | Fillister head screw | M8X30-U2-PF-8.8 | 0.020 kg | 0.40 €0.40 $ | |||
| 19 | 16116750477 | Rubber spacer | 0.010 kg | 16.12 €16.12 $ | ||||
| 20 | 16111183134 | Rubber spacer | 0.010 kg | 16.12 €16.12 $ | ||||
| 21 | 16117177179 | PLASTIC FILLER PIPE | 0.800 kg | 185.09 €185.09 $ | ||||
| 21 | 16117178312 | Original OEM part | 0.100 kg | 146.62 €146.62 $ | ||||
| 21 | 16117003058 | PLASTIC FILLER PIPE | 0.790 kg | 200.47 €200.47 $ | ||||
| 21 | 16117199713 | PLASTIC FILLER PIPE | 0.800 kg | 283.40 €283.40 $ | ||||
| 22 | 16127176998 | Fuel hose | 18X23MM | 0.261 kg | 90.18 €90.18 $ | |||
| 23 | 16121180240 | Hose clamp | 12,8-15,3 | 0.000 kg | 1.34 €1.34 $ | |||
| 27 | 07129900299 | Hex nut with plate | BM6 | 0.005 kg | 0.92 €0.92 $ | |||
| 27 | 07129903792 | Hex nut | BM6-8-ZNS3 | 0.000 kg | 0.32 €0.32 $ | |||
| 28 | 16131183133 | Plastic nut for coarse threaded pin | 0.000 kg | 2.04 €2.04 $ | ||||
| 29 | 07119902023 | Original OEM part | 0.100 kg | 0.24 €0.24 $ | ||||
| 29 | 07119903997 | Hex Bolt with washer | M6X16-U2-ZNS3 | 0.010 kg | 0.51 €0.51 $ | |||
| 30 | 16117175218 | Hose | 0.270 kg | 149.22 €149.22 $ | ||||
| 30 | 16117185363 | Hose | 0.240 kg | 159.62 €159.62 $ | ||||
| 31 | 11537504272 | Hose clamp | L32-50 | 0.020 kg | 4.39 €4.39 $ | |||
| 32 | 16117193381 | Filler cap | 0.100 kg | 45.28 €45.28 $ | ||||
| 35 | 16117162088 | Clip, protective cover | 0.020 kg | 6.57 €6.57 $ |
Click on any disabled (gray) menu to maximize it.
Choose your subcategory
- Fuel feed
- Fuel Lines
- Fuel Pump And Fuel Level Sensor
- Fuel tank
- Fuel Tank Attaching Parts
- Vent
