E66 730Ld M57N2 Sedan / Rear Axle/ Rear Axle Support Wheel Suspension
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

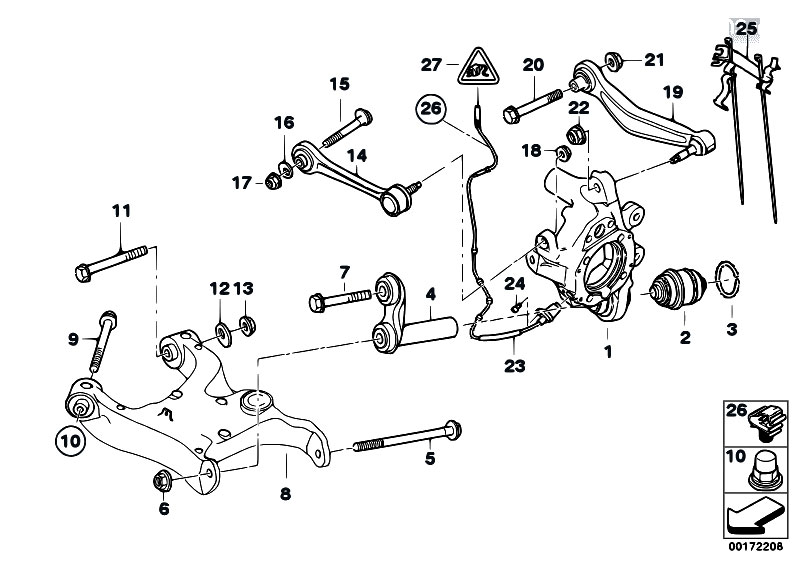

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33326763119 | Wheel carrier, rear left | 2.880 kg | 977.64 €977.64 $ | ||||
| 1 | 33326763120 | Wheel carrier, rear right | 2.880 kg | 891.77 €891.77 $ | ||||
| 1 | 33326775079 | Wheel carrier, rear left | 2.900 kg | 712.21 €712.21 $ | ||||
| 1 | 33326775080 | Wheel carrier, rear right | 2.900 kg | 712.21 €712.21 $ | ||||
| 2 | 33326767748 | Ball joint | 0.540 kg | 87.99 €87.99 $ | ||||
| 3 | 33321091687 | Snap ring | 0.010 kg | 5.12 €5.12 $ | ||||
| 4 | 33326770749 | INTEGRAL LINK | 0.670 kg | 165.76 €165.76 $ | ||||
| 5 | 33326754632 | Original OEM part | 0.100 kg | 12.15 €12.15 $ | ||||
| 5 | 33306760598 | Hex Bolt | M16X275 ZNS3 | 0.440 kg | 27.29 €27.29 $ | |||
| 6 | 33326760383 | Self-locking collar nut | M16X1,5-10 ZNS3 | 0.060 kg | 10.46 €10.46 $ | |||
| 7 | 33321091583 | Hex Bolt with washer | M12X1,5X67 ZNS | 0.080 kg | 2.15 €2.15 $ | |||
| 7 | 33326763463 | Hex Bolt with washer | M12X1,5X67 ZNS3 | 0.080 kg | 8.60 €8.60 $ | |||
| 8 | 33326770769 | LEFT SWING PART | 3.800 kg | 535.18 €535.18 $ | ||||
| 8 | 33326770770 | RIGHT SWING PART | 3.800 kg | 535.18 €535.18 $ | ||||
| 9 | 33321096773 | Hex Bolt | M12X1,5X98 ZNS | 0.110 kg | 2.38 €2.38 $ | |||
| 9 | 33306760393 | Hex Bolt | M12X1,5X98 ZNS3 | 0.110 kg | 11.27 €11.27 $ | |||
| 10 | 33326768397 | Cap nut | M12X1,5-10 | 0.030 kg | 11.29 €11.29 $ | |||
| 11 | 33321095103 | Original OEM part | 0.100 kg | 7.53 €7.53 $ | ||||
| 11 | 33306760593 | ECCENTRIC BOLT | M14X100 ZNS3 | 0.150 kg | 7.34 €7.34 $ | |||
| 12 | 33326760594 | Eccentric flat washer | 0.030 kg | 2.13 €2.13 $ | ||||
| 12 | 33306786187 | Eccentric flat washer | 0.030 kg | 4.34 €4.34 $ | ||||
| 13 | 33306760349 | Self-locking collar nut | M14X1,5-10 ZNS3 | 0.040 kg | 3.84 €3.84 $ | |||
| 14 | 33326777424 | Guiding suspension link w rubber mount | 0.360 kg | 214.00 €214.00 $ | ||||
| 14 | 33326775083 | Guiding suspens. link w rubber mount lft | 0.410 kg | 228.86 €228.86 $ | ||||
| 14 | 33326775084 | Guiding suspens. link w rubber mount rgh | 0.410 kg | 228.86 €228.86 $ | ||||
| 15 | 33321093456 | Original OEM part | 0.100 kg | 3.73 €3.73 $ | ||||
| 15 | 33306760591 | ECCENTRIC BOLT | M10X66 ZNS3 | 0.060 kg | 12.42 €12.42 $ | |||
| 16 | 33321093455 | Original OEM part | 0.100 kg | 1.12 €1.12 $ | ||||
| 16 | 33306760592 | Eccentric flat washer | 0.010 kg | 5.03 €5.03 $ | ||||
| 17 | 33306760587 | Hex nut with flange | M10-10 ZNS3 | 0.010 kg | 1.89 €1.89 $ | |||
| 17 | 33326768900 | Self-locking hex nut | M10-10 ZNS3 | 0.010 kg | 1.24 €1.24 $ | |||
| 18 | 33321092382 | Self-locking collar nut | M10-10 ZNS | 0.019 kg | 1.01 €1.01 $ | |||
| 18 | 33326760376 | Self-locking collar nut | M10-10 ZNS3 | 0.020 kg | 3.19 €3.19 $ | |||
| 18 | 33326760374 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.030 kg | 5.92 €5.92 $ | |||
| 19 | 33306772241 | Wishbone, left | 0.900 kg | 305.75 €305.75 $ | ||||
| 19 | 33306772242 | Right wishbone | 0.900 kg | 278.91 €278.91 $ | ||||
| 20 | 33306760391 | Hexagon collar screw | M12X1.5X92 ZNS3 | 0.110 kg | 8.00 €8.00 $ | |||
| 21 | 33321093103 | Original OEM part | 0.100 kg | 1.37 €1.37 $ | ||||
| 21 | 33326760374 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.030 kg | 5.92 €5.92 $ | |||
| 22 | 33321092384 | Original OEM part | 0.100 kg | 2.30 €2.30 $ | ||||
| 22 | 33326760380 | Combination nut | M14X1,5-10ZNS3 | 0.040 kg | 7.33 €7.33 $ | |||
| 23 | 34526771709 | Pulse generator, DSC rear | 0.070 kg | 123.91 €123.91 $ | ||||
| 24 | 07119904105 | Fillister head screw | M6X16-8.8-ZNS3 | 0.010 kg | 0.40 €0.40 $ | |||
| 25 | 33181182957 | LEFT BRACKET F PULSE GENERATOR ABS | 0.020 kg | 9.72 €9.72 $ | ||||
| 25 | 33181182958 | RIGHT BRACKET F PULSE GENERATOR ABS | 0.020 kg | 9.72 €9.72 $ | ||||
| 26 | 34521164653 | Cable clip | 0.000 kg | 0.69 €0.69 $ | ||||
| 27 | 61131392246 | Universal socket housing uncoded | 2 POL. | 0.004 kg | 9.77 €9.77 $ |
