E66 730Li M54 Sedan / Steering/ Power Steering Oil Pipe Dynamic Drive
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

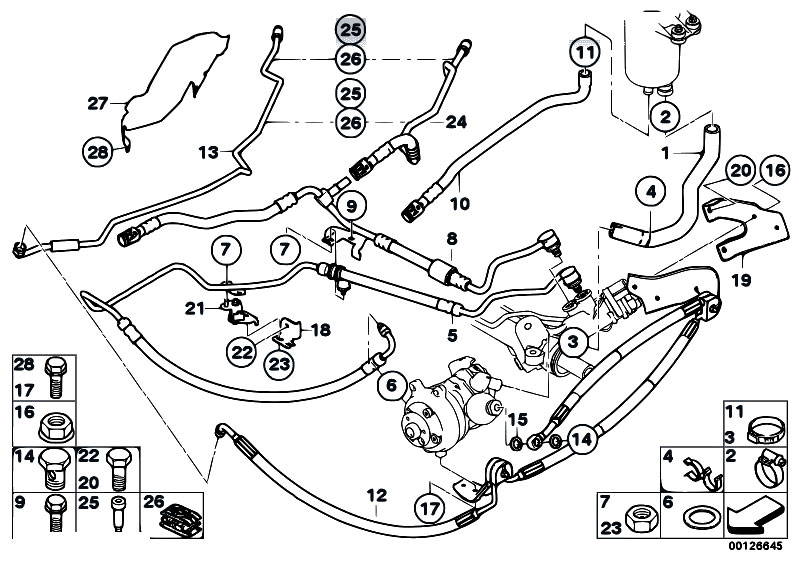

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 32416762656 | Suction pipe | 0.170 kg | 69.45 €69.45 $ | ||||
| 2 | 64218367179 | Hose clamp | L16-30 | 0.010 kg | 2.80 €2.80 $ | |||
| 3 | 32416763470 | Hose clamp | D= 25MM | 0.010 kg | 3.76 €3.76 $ | |||
| 4 | 12511309471 | Hose clamp | D=18/D=25 | 0.010 kg | 10.92 €10.92 $ | |||
| 5 | 32416764680 | Expansion hose | 0.760 kg | 248.84 €248.84 $ | ||||
| 6 | 64508390601 | Gasket ring | D=7,65MM | 0.000 kg | 1.74 €1.74 $ | |||
| 7 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 7 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 8 | 32416762659 | Return pipe | 0.600 kg | 211.48 €211.48 $ | ||||
| 9 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 9 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 10 | 32416762660 | Radiator return line | 0.130 kg | 74.20 €74.20 $ | ||||
| 11 | 32416751127 | Hose clamp | 0.010 kg | 2.05 €2.05 $ | ||||
| 12 | 32416762661 | Expansion hose Dynamic Drive | I | 1.490 kg | 452.73 €452.73 $ | |||
| 12 | 32416773937 | Expansion hose Dynamic Drive | I | 1.500 kg | 659.23 €659.23 $ | |||
| 13 | 32416762662 | Expansion hose Dynamic Drive | II | 0.320 kg | 228.62 €228.62 $ | |||
| 14 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.87 €1.87 $ | |||
| 14 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.74 €5.74 $ | |||
| 15 | 32411093596 | Gasket ring | A14X20-CUSN | 0.002 kg | 1.39 €1.39 $ | |||
| 15 | 07119906464 | Gasket ring | A14X18-CUSN | 0.001 kg | 0.57 €0.57 $ | |||
| 15 | 07119906464 | Gasket ring | A14X18-CUSN | 0.001 kg | 0.57 €0.57 $ | |||
| 16 | 07119900560 | Self-locking hex nut | M6-ZNS | 0.003 kg | 0.12 €0.12 $ | |||
| 16 | 07119905949 | Self-locking hex nut | M6-8-ZNNIV SI | 0.004 kg | 0.69 €0.69 $ | |||
| 17 | 07119900250 | Hex Bolt with washer | M6X16-Z1-ZNS | 0.004 kg | 0.13 €0.13 $ | |||
| 17 | 07119904524 | Hex Bolt with washer | M6X16-U1-8.8 | 0.006 kg | 0.58 €0.58 $ | |||
| 18 | 32416756426 | Bracket f expansion hose | 0.020 kg | 13.42 €13.42 $ | ||||
| 19 | 32416761522 | Bracket, expansion hose | 0.116 kg | 22.13 €22.13 $ | ||||
| 20 | 88100301778 | Hex Bolt | M8X20-8.8-ZNS | 0.016 kg | 0.28 €0.28 $ | |||
| 20 | 07119902681 | Hex Bolt | M8X20-8.8-ZNS | 0.016 kg | 0.71 €0.71 $ | |||
| 20 | 07119902968 | Hex Bolt with washer | M8X20-Z1-ZNS3 | 0.014 kg | 0.71 €0.71 $ | |||
| 21 | 32416758494 | Holder with rubber mounting | 0.090 kg | 15.44 €15.44 $ | ||||
| 21 | 32416779940 | Holder with rubber mounting | 0.090 kg | 37.51 €37.51 $ | ||||
| 22 | 32416756161 | Hex Bolt | M6X18MM | 0.010 kg | 0.69 €0.69 $ | |||
| 22 | 32416782036 | Hex Bolt | M6X18MM | 0.010 kg | 3.49 €3.49 $ | |||
| 23 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 23 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 24 | 32416762664 | Return pipe Dynamic Drive | 0.250 kg | 122.85 €122.85 $ | ||||
| 25 | 32416756159 | Collar screw | M6 | 0.020 kg | 1.65 €1.65 $ | |||
| 25 | 32416781748 | Collar screw | M6 | 0.020 kg | 8.47 €8.47 $ | |||
| 26 | 32416756132 | Pipe support | 0.020 kg | 13.99 €13.99 $ | ||||
| 27 | 31146754024 | Heat resistant plate | 0.090 kg | 23.13 €23.13 $ | ||||
| 28 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
| 28 | 07119905399 | Hex Bolt with washer | M6X18-U1 | 0.010 kg | 0.43 €0.43 $ |
