E71 X6 30dX M57N2 SAC / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

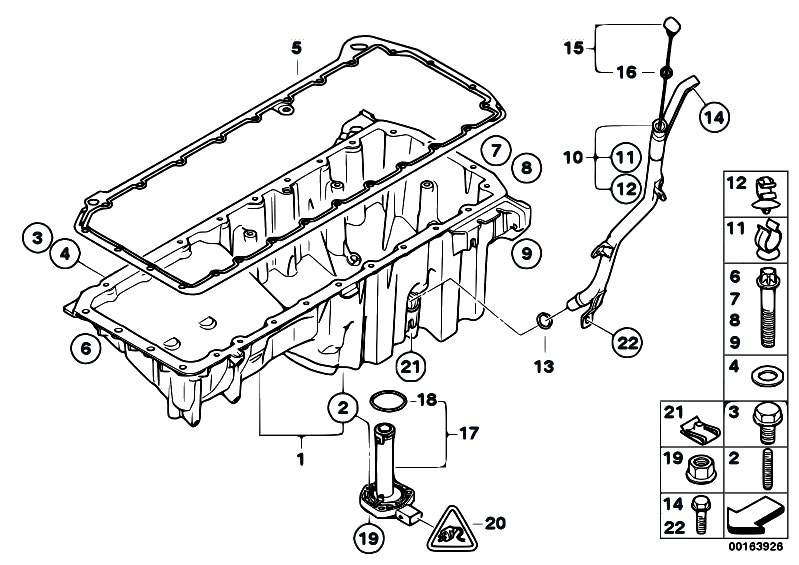

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11137796325 | Oil pan | 4.910 kg | 785.33 €785.33 $ | ||||
| 2 | 07129904544 | Stud bolt | M6X30-ZNNIV SI | 0.010 kg | 2.80 €2.80 $ | |||
| 3 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.22 €5.22 $ | |||
| 4 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 5 | 11137802669 | Gasket Steel | 0.160 kg | 42.86 €42.86 $ | ||||
| 6 | 11137800619 | Torx bolt | M6X22 | 0.010 kg | 1.19 €1.19 $ | |||
| 7 | 11137800622 | Torx bolt | M6X60 | 0.020 kg | 1.89 €1.89 $ | |||
| 8 | 11137800621 | Torx bolt | M8X30 | 0.010 kg | 1.49 €1.49 $ | |||
| 9 | 11137800623 | Torx bolt | M6X100 | 0.020 kg | 2.54 €2.54 $ | |||
| 10 | 11437800688 | Guide tube | 0.270 kg | 84.50 €84.50 $ | ||||
| 11 | 13537791440 | Hose clamp | D=17MM/21MM | 0.000 kg | 2.70 €2.70 $ | |||
| 12 | 13532245954 | Cable clamp | 0.000 kg | 5.83 €5.83 $ | ||||
| 13 | 11437794698 | O-ring | 14X3 | 0.000 kg | 2.35 €2.35 $ | |||
| 14 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ | |||
| 15 | 11437800091 | Dipstick | 0.030 kg | 27.84 €27.84 $ | ||||
| 16 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.04 €1.04 $ | |||
| 17 | 12617567723 | Oil levelling sensor | 0.150 kg | 177.07 €177.07 $ | ||||
| 18 | 12611744292 | Gasket ring | 0.000 kg | 6.42 €6.42 $ | ||||
| 19 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 20 | 61133333333 | Plug, see part info in 'ZI' column | 0.000 kg | 14.52 €14.52 $ | ||||
| 21 | 11427789289 | Clip nut | M6-ZNS3 | 0.010 kg | 2.77 €2.77 $ | |||
| 22 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ |
