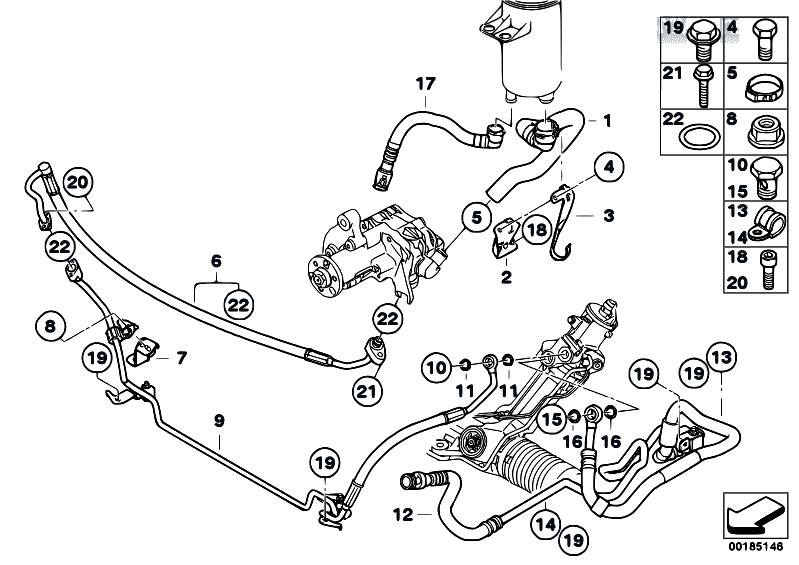

Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
1 | 32416779937 | Suction pipe | 0.270 kg | 70.62 €70.62 $ | ||||
2 | 32416782839 | Holder, suction line, steering | 0.080 kg | 3.92 €3.92 $ | ||||
2 | 11727511099 | Hose clamp | 0.000 kg | 5.31 €5.31 $ | ||||
3 | 32416779959 | Holder, suction line, steering | 0.070 kg | 8.30 €8.30 $ | ||||
4 | 07119906126 | Hex Bolt | M6X14 | 0.010 kg | 0.35 €0.35 $ | |||
5 | 32416763470 | Hose clamp | D= 25MM | 0.010 kg | 3.68 €3.68 $ | |||
6 | 32416786394 | Expansion hose, part 1 | 0.550 kg | 267.68 €267.68 $ | ||||
7 | 32416779955 | Bracket, expansion hose | 0.090 kg | 11.60 €11.60 $ | ||||
8 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
9 | 32416786413 | Expansion hose, part 2 | 0.810 kg | 294.34 €294.34 $ | ||||
9 | 32416786414 | Expansion hose, part 2 | 0.700 kg | 231.33 €231.33 $ | ||||
10 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.74 €5.74 $ | |||
11 | 07119906464 | Gasket ring | A14X18-CUSN | 0.001 kg | 0.57 €0.57 $ | |||
12 | 32416779952 | Return pipe | 1.500 kg | 225.03 €225.03 $ | ||||
12 | 32416790809 | Return pipe | 0.930 kg | 307.87 €307.87 $ | ||||
12 | 32416779952 | Return pipe | 1.500 kg | 225.03 €225.03 $ | ||||
12 | 32416779953 | Return pipe | 1.510 kg | 225.03 €225.03 $ | ||||
12 | 32416779948 | Return pipe | 0.840 kg | 307.87 €307.87 $ | ||||
12 | 32416779953 | Return pipe | 1.510 kg | 225.03 €225.03 $ | ||||
13 | 32416775829 | Clamp | 0.010 kg | 12.65 €12.65 $ | ||||
13 | 32416790460 | Clamp | 0.010 kg | 6.04 €6.04 $ | ||||
13 | 32416781057 | Pipe clamp | 0.010 kg | 5.07 €5.07 $ | ||||
14 | 32416775829 | Clamp | 0.010 kg | 12.65 €12.65 $ | ||||
14 | 32416790460 | Clamp | 0.010 kg | 6.04 €6.04 $ | ||||
15 | 32416783887 | HOLLOW BOLT | M16X28 | 0.040 kg | 6.07 €6.07 $ | |||
16 | 07119906463 | Gasket ring | A16X20-CUSN | 0.000 kg | 0.67 €0.67 $ | |||
17 | 32416788043 | Radiator return line | 0.140 kg | 208.96 €208.96 $ | ||||
17 | 32416792492 | Radiator return line | 0.140 kg | 90.25 €90.25 $ | ||||
17 | 32416788044 | Radiator return line | 0.140 kg | 208.96 €208.96 $ | ||||
18 | 07119904105 | Fillister head screw | M6X16-8.8-ZNS3 | 0.010 kg | 0.40 €0.40 $ | |||
19 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
20 | 07119906652 | Fillister head screw | M6X20-10.9-ZNS3 | 0.010 kg | 0.89 €0.89 $ | |||
21 | 07119906650 | Fillister head screw | M8X35-10.9-ZNS3 | 0.020 kg | 0.84 €0.84 $ | |||
22 | 32416788696 | O-ring | 11X1,8 HNBR | 0.001 kg | 13.77 €13.77 $ |
