E82 123d N47S Coupe / Engine/ Vacum Control Engine Turbo Charger
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

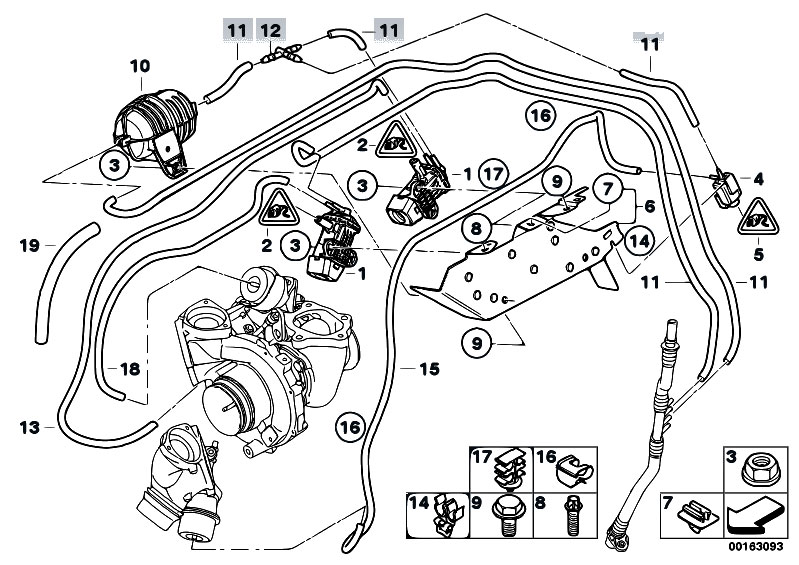

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11657808032 | Original OEM part | 0.100 kg | 115.85 €115.85 $ | ||||
| 1 | 11657811814 | PRESSURE CONVERTER | 0.150 kg | 119.83 €119.83 $ | ||||
| 1 | 11657811814 | PRESSURE CONVERTER | 0.150 kg | 119.83 €119.83 $ | ||||
| 2 | 12527804179 | Socket housing, MLK | 2 POL. | 0.003 kg | 3.72 €3.72 $ | |||
| 2 | 61133333333 | Plug, see part info in 'ZI' column | 0.000 kg | 14.21 €14.21 $ | ||||
| 3 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ | |||
| 4 | 11747810831 | Electric valve | 0.070 kg | 50.73 €50.73 $ | ||||
| 5 | 61133333333 | Plug, see part info in 'ZI' column | 0.000 kg | 14.21 €14.21 $ | ||||
| 6 | 11657803734 | Bracket | 0.580 kg | 66.31 €66.31 $ | ||||
| 6 | 11657811833 | Bracket | 0.590 kg | 66.31 €66.31 $ | ||||
| 6 | 11657823403 | Bracket | 0.570 kg | 66.31 €66.31 $ | ||||
| 7 | 61138365536 | Bracket, plug connection grey | 0.000 kg | 2.12 €2.12 $ | ||||
| 8 | 11127805414 | Plastic bolt | 5,0X19,5 | 0.000 kg | 4.45 €4.45 $ | |||
| 9 | 07119904517 | Hex Bolt with washer | M6X12-U1-8.8 | 0.010 kg | 0.40 €0.40 $ | |||
| 10 | 11657799790 | Vacuum tank | 0.140 kg | 59.81 €59.81 $ | ||||
| 11 | 11747797129 | Vacuum hose | 3,5X2,0 | 0.038 kg | 46.72 €46.72 $ | |||
| 12 | 11721439973 | T-CONNECTOR | 0.000 kg | 2.61 €2.61 $ | ||||
| 13 | 11657796879 | VACUUM HOSE BLUE | 3,5X2,0 | 0.040 kg | 46.72 €46.72 $ | |||
| 14 | 11657807213 | Clip | 0.000 kg | 4.84 €4.84 $ | ||||
| 15 | 11657796857 | VACUUM HOSE RED | 3,5X2,0 | 0.039 kg | 46.72 €46.72 $ | |||
| 16 | 12521437136 | Clip | 0.000 kg | 1.20 €1.20 $ | ||||
| 17 | 11657807216 | Clip | 0.000 kg | 3.60 €3.60 $ | ||||
| 18 | 11657797185 | VACUUM HOSE WHITE | 3,5X2,0 | 0.040 kg | 18.25 €18.25 $ | |||
| 19 | 11657807276 | Heat protection | 0.020 kg | 24.42 €24.42 $ |
