E82 123d N47S Coupe / Heater And Air Conditioning/ Coolant Lines
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

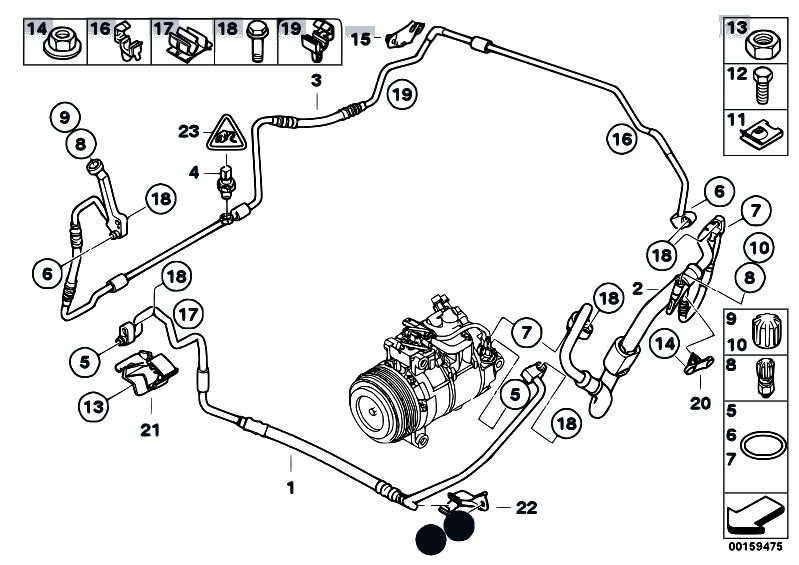

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 64536989308 | Pressure hose, compressor-condenser | 0.350 kg | 118.94 €118.94 $ | ||||
| 2 | 64536989309 | Original OEM part | 0.100 kg | 189.32 €189.32 $ | ||||
| 2 | 64509168365 | SUCTION PIPE EVAPORATOR-COMPRESSOR | 1.030 kg | 200.96 €200.96 $ | ||||
| 3 | 64539151737 | Pressure hose,condenser,evaporator | 0.420 kg | 219.72 €219.72 $ | ||||
| 4 | 64539141957 | Pressure sensor | 0.040 kg | 48.41 €48.41 $ | ||||
| 5 | 64508375741 | Gasket ring | D=10,8 MM | 0.000 kg | 3.74 €3.74 $ | |||
| 6 | 64508374959 | Gasket ring | 9,5X2,5 | 0.000 kg | 8.07 €8.07 $ | |||
| 7 | 64538375742 | Gasket ring | D=13,7 MM | 0.000 kg | 9.18 €9.18 $ | |||
| 8 | 64536922944 | Valve | 0.000 kg | 8.85 €8.85 $ | ||||
| 9 | 64538390638 | Cap | R134A | 0.000 kg | 2.43 €2.43 $ | |||
| 10 | 64538390633 | Cap | R134A | 0.003 kg | 2.61 €2.61 $ | |||
| 10 | 64538387437 | Cap | SAUG | 0.000 kg | 2.35 €2.35 $ | |||
| 11 | 11427789289 | Clip nut | M6-ZNS3 | 0.010 kg | 2.77 €2.77 $ | |||
| 12 | 51341950474 | Hex Bolt | 0.007 kg | 2.49 €2.49 $ | ||||
| 13 | 07129904859 | Hex nut | BM6-8-ZNS3 | 0.000 kg | 0.77 €0.77 $ | |||
| 14 | 07146938618 | Self-locking hex nut | M6 | 0.000 kg | 1.77 €1.77 $ | |||
| 15 | 64536939333 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.010 kg | 5.31 €5.31 $ | ||||
| 16 | 64536930042 | DUAL CLIP | 0.010 kg | 3.05 €3.05 $ | ||||
| 16 | 64509169522 | DUAL CLIP | 0.010 kg | 19.04 €19.04 $ | ||||
| 17 | 64536951634 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.000 kg | 3.00 €3.00 $ | ||||
| 18 | 07119905720 | Fillister head with washer | M8X30-U1-ZNS3 | 0.020 kg | 0.71 €0.71 $ | |||
| 19 | 64538369549 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.000 kg | 5.00 €5.00 $ | ||||
| 20 | 64536946346 | Filler connection bracket | 0.010 kg | 15.95 €15.95 $ | ||||
| 21 | 64509126972 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.020 kg | 13.79 €13.79 $ | ||||
| 22 | 64509126971 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.010 kg | 8.16 €8.16 $ | ||||
| 23 | 61138365348 | Universal socket housing uncoded | 3 POL. | 0.000 kg | 5.95 €5.95 $ |
