E89 Z4 23i N52N Roadster / Bodywork/ Engine Hood Mounting Parts
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

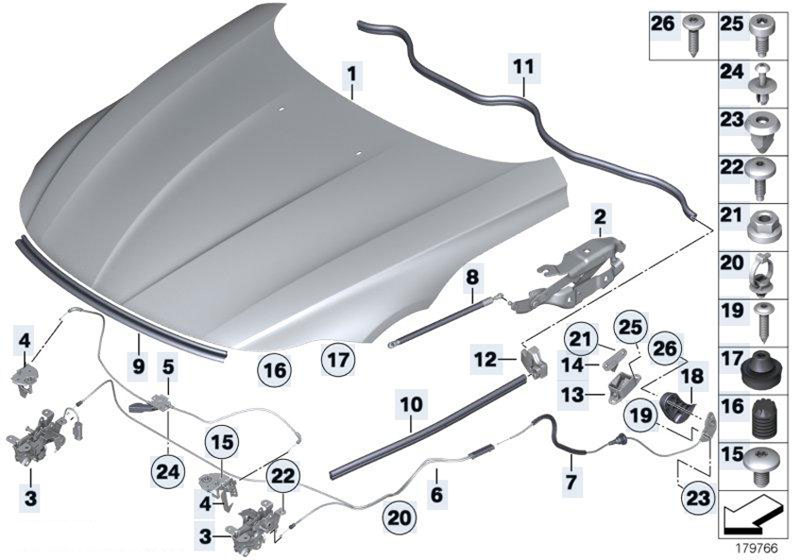

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 41007191522 | Hood | 17.000 kg | 778.94 €778.94 $ | ||||
| 2 | 41617225127 | LEFT ENGINE HOOD HINGE | 1.490 kg | 76.16 €76.16 $ | ||||
| 2 | 41617225128 | RIGHT ENGINE HOOD HINGE | 1.490 kg | 76.16 €76.16 $ | ||||
| 3 | 51237002907 | Lock f hood, left | 0.740 kg | 70.66 €70.66 $ | ||||
| 3 | 51237207225 | Hood lock with micro switch, right | 0.490 kg | 70.66 €70.66 $ | ||||
| 4 | 51237183763 | Upper lock section, left | 0.250 kg | 55.12 €55.12 $ | ||||
| 4 | 51237183764 | Upper lock section, right | 0.250 kg | 55.12 €55.12 $ | ||||
| 5 | 51237191529 | Arrester hook actuator | 0.170 kg | 36.49 €36.49 $ | ||||
| 6 | 51237144923 | Bowden cable | 0.170 kg | 28.74 €28.74 $ | ||||
| 6 | 51237191530 | Bowden cable | 0.180 kg | 28.74 €28.74 $ | ||||
| 7 | 51237191517 | ENGINE HOOD MECHANISM | 0.140 kg | 36.49 €36.49 $ | ||||
| 7 | 51237191518 | ENGINE HOOD MECHANISM | 0.140 kg | 36.49 €36.49 $ | ||||
| 8 | 51237191528 | Gas pressurized spring | 370N | 0.320 kg | 64.03 €64.03 $ | |||
| 9 | 51767191526 | FRONT ENGINE HOOD SEALING | 0.330 kg | 71.26 €71.26 $ | ||||
| 10 | 51767191515 | LATERAL ENGINE HOOD SEALING | 0.170 kg | 24.52 €24.52 $ | ||||
| 11 | 51767191527 | REAR ENGINE HOOD SEALING | 0.300 kg | 54.82 €54.82 $ | ||||
| 12 | 51767211201 | Moulded part left | 0.010 kg | 9.02 €9.02 $ | ||||
| 12 | 51767211202 | Moulded part right | 0.010 kg | 23.84 €23.84 $ | ||||
| 13 | 51767191507 | Bump stop, bottom left | 0.080 kg | 7.60 €7.60 $ | ||||
| 13 | 51767191508 | Bump stop, bottom right | 0.080 kg | 34.36 €34.36 $ | ||||
| 14 | 51237217707 | Bump stop, left | 0.020 kg | 10.89 €10.89 $ | ||||
| 14 | 51237217708 | Bump stop, right | 0.020 kg | 14.68 €14.68 $ | ||||
| 15 | 41617068715 | Torx-bolt with washer | ISA M6X12 | 0.001 kg | 2.70 €2.70 $ | |||
| 16 | 51248254063 | Stop buffer | 0.010 kg | 5.05 €5.05 $ | ||||
| 17 | 51237207527 | SPACER HOLDER | 0.000 kg | 9.47 €9.47 $ | ||||
| 18 | 51238223163 | Lever f engine hood mechanism | 0.040 kg | 20.92 €20.92 $ | ||||
| 18 | 51238223164 | Lever f engine hood mechanism | 0.050 kg | 20.92 €20.92 $ | ||||
| 19 | 07129905220 | Screw | TS5X16-ZNS3 | 0.000 kg | 1.76 €1.76 $ | |||
| 20 | 61138375988 | Cable strap with bracket | Ш=7,9 / L=150 | 0.000 kg | 0.75 €0.75 $ | |||
| 21 | 41248147832 | Hex nut with flange | M6 | 0.000 kg | 1.99 €1.99 $ | |||
| 21 | 41248147832 | Hex nut with flange | M6 | 0.000 kg | 1.99 €1.99 $ | |||
| 22 | 07147119148 | OVAL HEAD SCREW WITH WASHER | ISA M6X21 | 0.010 kg | 0.71 €0.71 $ | |||
| 23 | 51127020321 | Expanding nut | 0.000 kg | 0.74 €0.74 $ | ||||
| 24 | 51168197908 | Expanding rivet | 0.000 kg | 0.54 €0.54 $ | ||||
| 25 | 07146967731 | Screw, self tapping | M6X14,5 ZNS3 | 0.000 kg | 0.74 €0.74 $ | |||
| 26 | 07119904350 | Screw, self tapping | ST4,8X19MM | 0.003 kg | 0.75 €0.75 $ |
