E89 Z4 23i N52N Roadster / Sliding Roof Folding Top/ Anbauteile
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

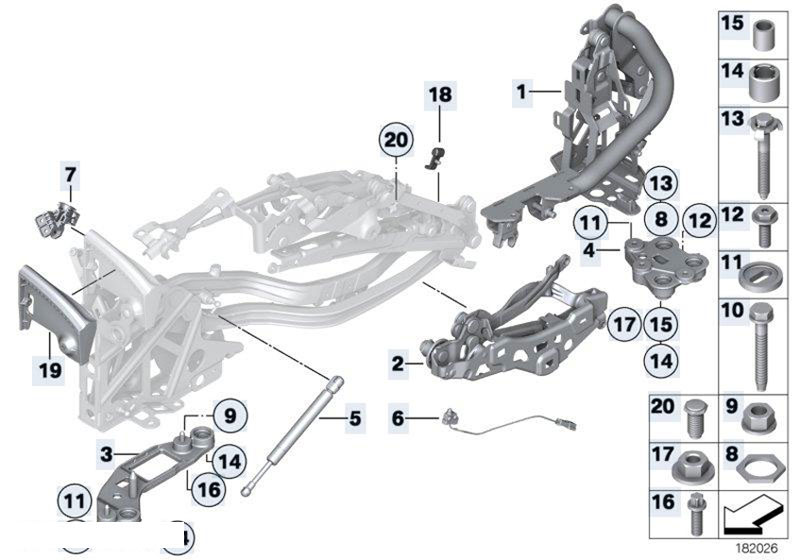

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 54377188243 | Rear-end kinematics, left | 3.680 kg | 560.85 €560.85 $ | ||||
| 1 | 54377188244 | Rear-end kinematics, right | 3.700 kg | 560.85 €560.85 $ | ||||
| 2 | 54377192955 | Coupler, left | 2.000 kg | 358.30 €358.30 $ | ||||
| 2 | 54377192956 | Coupler, right | 1.900 kg | 358.30 €358.30 $ | ||||
| 3 | 54377192947 | Bracket, main bearing, left | 0.510 kg | 128.56 €128.56 $ | ||||
| 3 | 54377192948 | Bracket, main bearing, right | 0.510 kg | 287.38 €287.38 $ | ||||
| 4 | 54377192957 | Console, rear module, left | 0.460 kg | 154.24 €154.24 $ | ||||
| 4 | 54377192958 | Console, rear module, right | 0.460 kg | 154.24 €154.24 $ | ||||
| 5 | 54377212634 | Gas pressurized spring | 0.180 kg | 63.28 €63.28 $ | ||||
| 6 | 54377228585 | Microswitch, coupling fastener, left | 0.020 kg | 69.43 €69.43 $ | ||||
| 6 | 54377228586 | Microswitch, coupling fastener, right | 0.020 kg | 69.43 €69.43 $ | ||||
| 7 | 54377256885 | Stowage lock, soft top | 0.078 kg | 99.92 €99.92 $ | ||||
| 8 | 07146952441 | Hex nut | M24X1 | 0.010 kg | 3.26 €3.26 $ | |||
| 9 | 07129904862 | Hex nut with plate | M8-ZNS3 | 0.010 kg | 1.56 €1.56 $ | |||
| 10 | 07119906660 | Hexagon screw with locating tip | M8X54 | 0.020 kg | 1.41 €1.41 $ | |||
| 11 | 07149110673 | Washer | 0.030 kg | 4.42 €4.42 $ | ||||
| 12 | 41617065160 | Hex Bolt with washer | M8X24 | 0.010 kg | 3.19 €3.19 $ | |||
| 13 | 07146986928 | Hexagon screw with locating tip | 0.040 kg | 6.69 €6.69 $ | ||||
| 14 | 07147157830 | THREADED SLEEVE | 0.040 kg | 24.32 €24.32 $ | ||||
| 15 | 07147135926 | Threaded plug | 0.010 kg | 6.15 €6.15 $ | ||||
| 16 | 54377175264 | Screw | 0.020 kg | 5.24 €5.24 $ | ||||
| 17 | 07147144953 | Hex nut with plate | M8-Z2 | 0.010 kg | 2.23 €2.23 $ | |||
| 18 | 54377256883 | Bump stop | 0.254 kg | 43.40 €43.40 $ | ||||
| 19 | 54377256884 | Bump stop | 0.082 kg | 42.55 €42.55 $ | ||||
| 20 | 54377236261 | Stopper bolt | 0.010 kg | 32.48 €32.48 $ |
