E89 Z4 30i N52N Roadster / Vehicle Trim/ Reinforcement Body
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

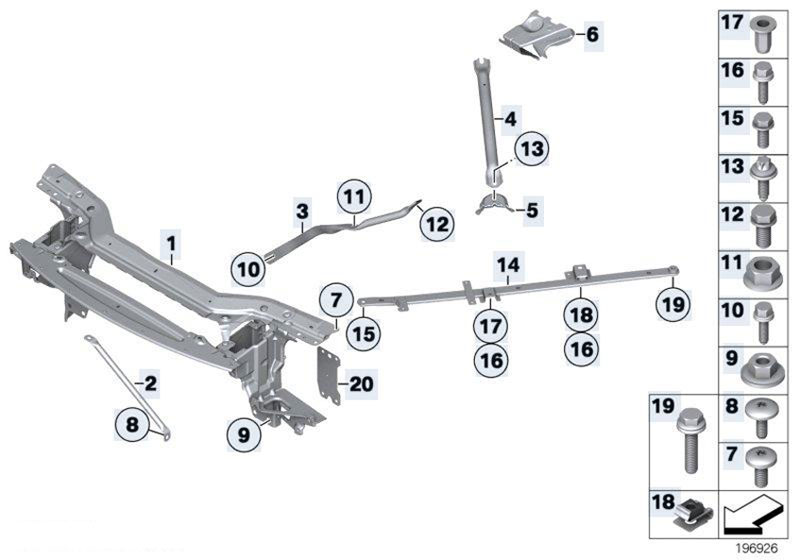

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 51647192177 | Original OEM part | 0.100 kg | 449.00 €449.00 $ | ||||
| 2 | 51647192193 | V-strut, front panel | 0.120 kg | 76.32 €76.32 $ | ||||
| 3 | 51617135647 | Diagonal rod, front, left | 1.150 kg | 71.65 €71.65 $ | ||||
| 3 | 51617135648 | Diagonal rod, front, right | 1.140 kg | 71.65 €71.65 $ | ||||
| 4 | 51617190432 | Strut brace | 0.790 kg | 110.26 €110.26 $ | ||||
| 5 | 41007224903 | Mounting, suspension cross-brace, left | 0.230 kg | 35.68 €35.68 $ | ||||
| 5 | 41007224904 | Mounting, suspension cross-brace, right | 0.200 kg | 35.99 €35.99 $ | ||||
| 6 | 41117224927 | Mounting, suspension cross-brace, middle | 0.680 kg | 87.95 €87.95 $ | ||||
| 6 | 41117224928 | Mounting, suspension cross-brace, middle | 0.670 kg | 31.59 €31.59 $ | ||||
| 7 | 07147026396 | Torx-bolt with washer | ISA M8X20 | 0.020 kg | 2.51 €2.51 $ | |||
| 8 | 07146959923 | Torx bolt | ISA M6X18 SW | 0.010 kg | 1.05 €1.05 $ | |||
| 9 | 51117070183 | Hex nut with plate | M8 | 0.010 kg | 1.41 €1.41 $ | |||
| 10 | 33326768354 | Hex screw with collar | M10X33-10.9 | 0.040 kg | 3.55 €3.55 $ | |||
| 11 | 07119904670 | Flange nut | M10-10-ZNS3 | 0.010 kg | 0.63 €0.63 $ | |||
| 12 | 07119905147 | Hex Bolt with washer | M10X25-10.9ZNS3 | 0.030 kg | 1.09 €1.09 $ | |||
| 13 | 07146954965 | ASA-Bolt with circlip | M12X1.5X39 | 0.070 kg | 5.35 €5.35 $ | |||
| 14 | 51617190995 | V-strut, front-axle carrier, left | 1.880 kg | 195.08 €195.08 $ | ||||
| 14 | 51617190996 | V-strut, front-axle carrier, right | 1.880 kg | 195.08 €195.08 $ | ||||
| 15 | 07119905502 | Hex Bolt | M12X30 | 0.043 kg | 2.13 €2.13 $ | |||
| 16 | 33326768354 | Hex screw with collar | M10X33-10.9 | 0.040 kg | 3.55 €3.55 $ | |||
| 17 | 07147199279 | Blind rivet nut | M10 | 0.020 kg | 2.51 €2.51 $ | |||
| 18 | 31116768715 | CAGE NUT | 0.020 kg | 4.92 €4.92 $ | ||||
| 19 | 51716966566 | Hexagon screw with flange | M10X45 | 0.050 kg | 8.96 €8.96 $ | |||
| 20 | 51647233749 | Spacer plate | 0,5MM | 0.080 kg | 10.97 €10.97 $ | |||
| 20 | 51647229191 | Spacer plate | 1,0MM | 0.140 kg | 16.22 €16.22 $ | |||
| 20 | 51647233750 | Spacer plate | 2,0MM | 0.280 kg | 17.50 €17.50 $ |
