E89 Z4 35i N54 Roadster / Pedals/ Pedal Assembly W Over Centre Helper Spring
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

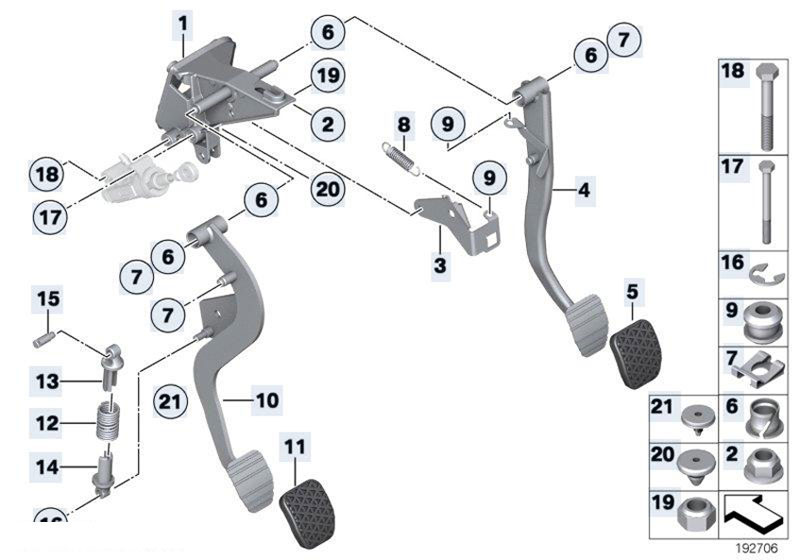

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 35103414589 | Supporting bracket, foot controls | 0.600 kg | 71.04 €71.04 $ | ||||
| 2 | 07119904295 | Self-locking collar nut | M8-8-ZNS3 | 0.010 kg | 0.40 €0.40 $ | |||
| 3 | 35006785886 | Bracket f stop light and clutch switch | 0.080 kg | 25.63 €25.63 $ | ||||
| 4 | 35006785888 | Brake pedal | 0.520 kg | 57.86 €57.86 $ | ||||
| 4 | 35006785890 | Brake pedal | 0.500 kg | 57.86 €57.86 $ | ||||
| 5 | 35211160422 | Rubber pad | 0.050 kg | 6.01 €6.01 $ | ||||
| 5 | 35211160658 | Rubber pad | 0.040 kg | 7.00 €7.00 $ | ||||
| 6 | 35211158290 | Bush bearing | 0.000 kg | 2.54 €2.54 $ | ||||
| 7 | 35206779548 | Flat fuses | B10-ZNS3 | 0.000 kg | 5.35 €5.35 $ | |||
| 8 | 35216762723 | Brake pedal return spring | 0.010 kg | 8.33 €8.33 $ | ||||
| 9 | 35411113728 | Grommet | D=7,5MM | 0.000 kg | 3.15 €3.15 $ | |||
| 10 | 35006785893 | CLUTCH PEDAL | 0.940 kg | 49.62 €49.62 $ | ||||
| 10 | 35006785894 | CLUTCH PEDAL | 0.960 kg | 31.17 €31.17 $ | ||||
| 11 | 35211108634 | Rubber pad | 0.030 kg | 5.11 €5.11 $ | ||||
| 11 | 35311160659 | Rubber pad | 0.040 kg | 7.04 €7.04 $ | ||||
| 12 | 35311165566 | Compression spring | L=58MM | 0.050 kg | 18.15 €18.15 $ | |||
| 13 | 35311161719 | Bracket, compression spring | GRAU | 0.010 kg | 7.18 €7.18 $ | |||
| 14 | 35301164381 | Bracket, compression spring | SCHWARZ | 0.010 kg | 7.18 €7.18 $ | |||
| 15 | 35303416956 | Pin for over-centre helper spring | D=8MM/L=24,5MM | 0.010 kg | 3.49 €3.49 $ | |||
| 16 | 07119904660 | Circlip | 5-ZNS3 | 0.001 kg | 1.07 €1.07 $ | |||
| 17 | 07119902997 | Hex Bolt | M6X65 ZNS3 | 0.020 kg | 1.18 €1.18 $ | |||
| 18 | 07119902976 | Hex Bolt | M6X45 8.8 ZNS3 | 0.010 kg | 0.99 €0.99 $ | |||
| 19 | 07129904876 | Hex nut | M6-8-ZNS3 | 0.000 kg | 0.55 €0.55 $ | |||
| 20 | 35311103849 | Clutch pedal stop buffer | 0.000 kg | 1.99 €1.99 $ | ||||
| 21 | 35316750569 | Clutch pedal stop buffer | 0.010 kg | 4.24 €4.24 $ |
