E90 320i N43 Sedan / Engine/ Intake Manifold System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

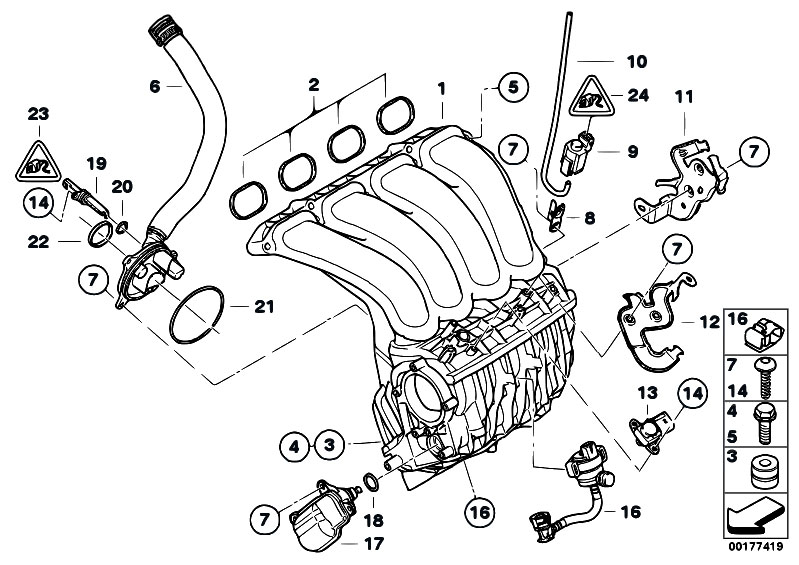

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11617546981 | Intake manifold | 4.360 kg | 742.60 €742.60 $ | ||||
| 2 | 11617546983 | Set of profile gaskets | 0.010 kg | 25.46 €25.46 $ | ||||
| 3 | 11617561390 | Decoupling element | 0.030 kg | 11.68 €11.68 $ | ||||
| 4 | 07119905533 | Hex Bolt with washer | M8X35-U1 | 0.020 kg | 0.89 €0.89 $ | |||
| 5 | 07119903918 | Hex Bolt with washer | M7X50-U1 | 0.020 kg | 1.46 €1.46 $ | |||
| 6 | 11617561386 | Adapter plate | 0.180 kg | 31.18 €31.18 $ | ||||
| 7 | 11617533331 | Screw | K60X22 | 0.000 kg | 0.91 €0.91 $ | |||
| 8 | 11617561387 | Bracket for electric changeover valve | 0.020 kg | 16.58 €16.58 $ | ||||
| 9 | 11741742712 | Electric valve | 0.070 kg | 56.16 €56.16 $ | ||||
| 10 | 11747797129 | Vacuum hose | 3,5X2,0 | 0.038 kg | 46.72 €46.72 $ | |||
| 11 | 11617546989 | Bracket, cable harness | 0.160 kg | 41.45 €41.45 $ | ||||
| 12 | 11617546988 | Bracket, cable harness | 0.160 kg | 41.45 €41.45 $ | ||||
| 13 | 13627542623 | Differential pressure sensor | 0.030 kg | 65.86 €65.86 $ | ||||
| 14 | 11617533330 | Screw | K50X14 | 0.000 kg | 2.84 €2.84 $ | |||
| 15 | 13907550387 | Fuel tank ventilation valve with pipe | 0.120 kg | 120.85 €120.85 $ | ||||
| 16 | 11617561388 | Pipe clip | 0.010 kg | 5.27 €5.27 $ | ||||
| 17 | 11617546982 | Actuator | 0.220 kg | 365.51 €365.51 $ | ||||
| 18 | 11617514883 | O-ring | 18X3,55 | 0.000 kg | 4.24 €4.24 $ | |||
| 19 | 11617550466 | Heating element | 0.010 kg | 35.22 €35.22 $ | ||||
| 20 | 11617559693 | O-ring | 0.000 kg | 5.10 €5.10 $ | ||||
| 21 | 11617588255 | O-ring | 0.004 kg | 8.66 €8.66 $ | ||||
| 22 | 11617588256 | Gasket ring | 0.001 kg | 5.89 €5.89 $ | ||||
| 23 | 12527507529 | Socket housing | 0.000 kg | 4.00 €4.00 $ | ||||
| 24 | 12521427615 | Socket housing | 2 POL. | 0.006 kg | 3.37 €3.37 $ |
