E90 320si N45 Sedan / Engine/ Valve Timing Gear Camshaft Valves
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

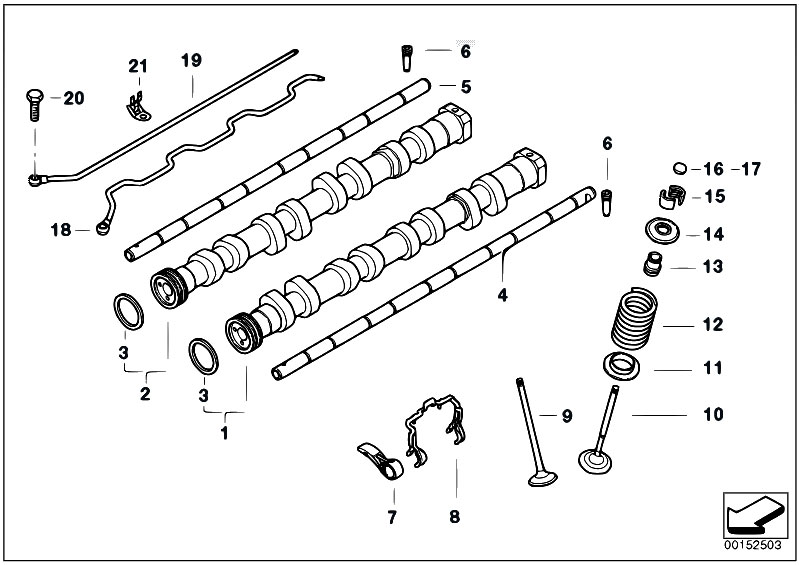

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11317552290 | Inlet camshaft | 1.972 kg | 1,113.03 €1,113.03 $ | ||||
| 2 | 11317552292 | Outlet camshaft | 1.972 kg | 1,113.03 €1,113.03 $ | ||||
| 3 | 11311705512 | Rectangring | 0.000 kg | 10.04 €10.04 $ | ||||
| 4 | 11337548526 | Valve-lever shaft, inlet | 0.300 kg | 103.26 €103.26 $ | ||||
| 5 | 11337548527 | Valve-lever shaft, outlet | 0.300 kg | 96.00 €96.00 $ | ||||
| 6 | 11317830885 | Screw | M10X1 | 0.010 kg | 4.23 €4.23 $ | |||
| 7 | 11337549034 | DRAG LEVER | 0.036 kg | 74.62 €74.62 $ | ||||
| 8 | 11337551126 | Spring clip | 0.020 kg | 23.46 €23.46 $ | ||||
| 9 | 11347541341 | Exhaust valve | 0.040 kg | 119.74 €119.74 $ | ||||
| 10 | 11347541340 | Intake valve | 0.040 kg | 39.12 €39.12 $ | ||||
| 11 | 11347685434 | LOWER SPRING POCKET | 0.010 kg | 5.87 €5.87 $ | ||||
| 12 | 11347671091 | Valve spring | 0.030 kg | 13.88 €13.88 $ | ||||
| 13 | 11340032548 | Repair kit valve seal ring | 0.027 kg | 95.79 €95.79 $ | ||||
| 14 | 11347541342 | Upper spring plate | 0.010 kg | 15.72 €15.72 $ | ||||
| 15 | 11341438142 | Valve collet | D=5 | 0.000 kg | 1.30 €1.30 $ | |||
| 16 | 11347832276 | Adjusting plate | 1,96 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832277 | Adjusting plate | 2,00 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832278 | Adjusting plate | 2,04 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832279 | Adjusting plate | 2,08 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832280 | Adjusting plate | 2,12 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832281 | Adjusting plate | 2,16 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832282 | Adjusting plate | 2,20 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832283 | Adjusting plate | 2,24 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832284 | Adjusting plate | 2,28 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832285 | Adjusting plate | 2,32 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832286 | Adjusting plate | 2,36 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832287 | Adjusting plate | 2,40 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832288 | Adjusting plate | 2,44 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 16 | 11347832289 | Adjusting plate | 2,48 MM | 0.000 kg | 4.81 €4.81 $ | |||
| 17 | 11340031525 | Set of small adjustment plates | 1,72-2,60MM | 0.752 kg | 670.57 €670.57 $ | |||
| 18 | 11127552235 | Oil spray tube, inlet side | 0.030 kg | 87.34 €87.34 $ | ||||
| 19 | 11127548552 | Oil spray tube, outlet side | 0.030 kg | 75.91 €75.91 $ | ||||
| 20 | 11127523715 | HOLLOW BOLT | M7X16 | 0.007 kg | 4.87 €4.87 $ | |||
| 21 | 11127551986 | Clamp | 0.000 kg | 4.11 €4.11 $ |
