OB
E90 325d M57N2 Sedan / Seats/ Front Seat Rail Electrical Single Parts
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

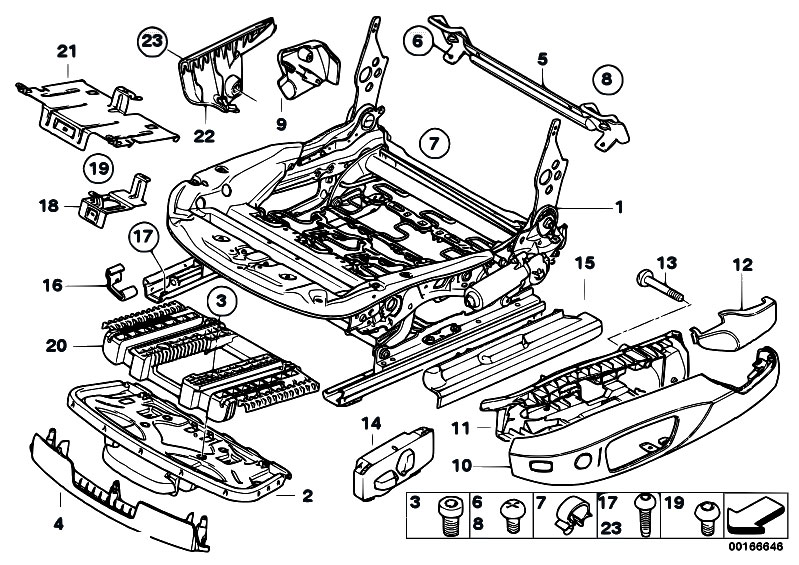

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 52109114599 | Electrical seat mechanism, left | 12.770 kg | 968.14 €968.14 $ | ||||
| 1 | 52109114600 | Electrical seat mechanism, right | 12.770 kg | 968.14 €968.14 $ | ||||
| 1 | 52107135541 | Electrical seat mechanism, left | 13.900 kg | 1,422.06 €1,422.06 $ | ||||
| 1 | 52107135542 | Electrical seat mechanism, right | 13.900 kg | 1,422.06 €1,422.06 $ | ||||
| 1 | 52107135539 | Electrical seat mechanism, left | 13.900 kg | 1,422.06 €1,422.06 $ | ||||
| 1 | 52107135540 | Electrical seat mechanism, right | 13.900 kg | 1,422.06 €1,422.06 $ | ||||
| 2 | 52107161311 | Carrier thigh support | 0.580 kg | 69.30 €69.30 $ | ||||
| 3 | 52107160653 | Screw, self tapping | BL 7,2X22 | 0.010 kg | 2.41 €2.41 $ | |||
| 4 | 52106958659 | Seat trim, left | SCHWARZ | 0.070 kg | 45.27 €45.27 $ | |||
| 4 | 52106958660 | Seat trim right | SCHWARZ | 0.070 kg | 45.27 €45.27 $ | |||
| 4 | 52106958665 | Seat trim, left | GRAU | 0.070 kg | 45.27 €45.27 $ | |||
| 4 | 52106958666 | Seat trim right | GRAU | 0.080 kg | 45.27 €45.27 $ | |||
| 4 | 52106958667 | Seat trim, left | BEIGE | 0.070 kg | 45.27 €45.27 $ | |||
| 4 | 52106958668 | Seat trim right | BEIGE | 0.080 kg | 45.27 €45.27 $ | |||
| 5 | 52107129838 | Isofix bracket | 0.450 kg | 50.04 €50.04 $ | ||||
| 6 | 07147144879 | Fillister head screw | M6X12 | 0.010 kg | 1.76 €1.76 $ | |||
| 6 | 07147144879 | Fillister head screw | M6X12 | 0.010 kg | 1.76 €1.76 $ | |||
| 7 | 61131267476 | Cable holder | D=12,8MM | 0.000 kg | 2.82 €2.82 $ | |||
| 8 | 07147144880 | Fillister head screw | M5X8 | 0.000 kg | 4.16 €4.16 $ | |||
| 9 | 52107118479 | Trim, seat inner left | SCHWARZ | 0.020 kg | 24.14 €24.14 $ | |||
| 9 | 52107118480 | Trim, seat inner right | SCHWARZ | 0.020 kg | 27.25 €27.25 $ | |||
| 9 | 52107157389 | Trim, seat inner left | GRAU | 0.020 kg | 24.14 €24.14 $ | |||
| 9 | 52107157390 | Trim, seat inner right | GRAU | 0.020 kg | 24.14 €24.14 $ | |||
| 9 | 52107157391 | Trim, seat inner left | BEIGE | 0.020 kg | 24.14 €24.14 $ | |||
| 9 | 52107157392 | Trim, seat inner right | BEIGE | 0.020 kg | 24.14 €24.14 $ | |||
| 10 | 52106972453 | Trim, seat, outer left | SCHWARZ | 0.202 kg | 12.50 €12.50 $ | |||
| 10 | 52106972454 | Trim, seat, outer right | SCHWARZ | 0.202 kg | 12.50 €12.50 $ | |||
| 10 | 52106972459 | Trim, seat, outer left | GRAU | 0.202 kg | 23.13 €23.13 $ | |||
| 10 | 52106972460 | Trim, seat, outer right | GRAU | 0.202 kg | 23.95 €23.95 $ | |||
| 10 | 52106972461 | Trim, seat, outer left | BEIGE | 0.202 kg | 23.95 €23.95 $ | |||
| 10 | 52106972462 | Trim, seat, outer right | BEIGE | 0.202 kg | 23.95 €23.95 $ | |||
| 10 | 52106979645 | Trim, seat, outer left | SCHWARZ | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979651 | Trim, seat, outer left | GRAU | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979653 | Trim, seat, outer left | BEIGE | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979646 | Trim, seat, outer right | SCHWARZ | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979652 | Trim, seat, outer right | GRAU | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979654 | Trim, seat, outer right | BEIGE | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979645 | Trim, seat, outer left | SCHWARZ | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979646 | Trim, seat, outer right | SCHWARZ | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979651 | Trim, seat, outer left | GRAU | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979652 | Trim, seat, outer right | GRAU | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979653 | Trim, seat, outer left | BEIGE | 0.200 kg | 60.38 €60.38 $ | |||
| 10 | 52106979654 | Trim, seat, outer right | BEIGE | 0.200 kg | 60.38 €60.38 $ | |||
| 11 | 52106979655 | Support f left seat adjustment | 0.170 kg | 51.91 €51.91 $ | ||||
| 11 | 52106979656 | Support f right seat adjustment | 0.170 kg | 51.91 €51.91 $ | ||||
| 12 | 52107140515 | Cover, belt catch left | SCHWARZ | 0.030 kg | 3.87 €3.87 $ | |||
| 12 | 52107140516 | Cover, belt catch right | SCHWARZ | 0.030 kg | 3.95 €3.95 $ | |||
| 12 | 52107157413 | Cover, belt catch left | GRAU | 0.029 kg | 3.95 €3.95 $ | |||
| 12 | 52107157414 | Cover, belt catch right | GRAU | 0.029 kg | 3.95 €3.95 $ | |||
| 12 | 52107157415 | Cover, belt catch left | BEIGE | 0.029 kg | 3.95 €3.95 $ | |||
| 12 | 52107157416 | Cover, belt catch right | BEIGE | 0.029 kg | 3.95 €3.95 $ | |||
| 12 | 52106979625 | Cover, belt catch left | SCHWARZ | 0.030 kg | 36.22 €36.22 $ | |||
| 12 | 52106979626 | Cover, belt catch right | SCHWARZ | 0.030 kg | 36.22 €36.22 $ | |||
| 12 | 52106979631 | Cover, belt catch left | GRAU | 0.030 kg | 36.22 €36.22 $ | |||
| 12 | 52106979632 | Cover, belt catch right | GRAU | 0.030 kg | 36.22 €36.22 $ | |||
| 12 | 52106979633 | Cover, belt catch left | BEIGE | 0.030 kg | 36.22 €36.22 $ | |||
| 12 | 52106979634 | Cover, belt catch right | BEIGE | 0.030 kg | 36.22 €36.22 $ | |||
| 13 | 07146954883 | Fillister head screw | M6 | 0.013 kg | 2.69 €2.69 $ | |||
| 13 | 07146964281 | Fillister head screw | M6 | 0.010 kg | 2.45 €2.45 $ | |||
| 14 | 61316954129 | Seat adjustment switch, left | 0.200 kg | 260.49 €260.49 $ | ||||
| 14 | 61316954130 | Seat adjustment switch, right | 0.200 kg | 252.09 €252.09 $ | ||||
| 14 | 61316936979 | SWITCH SEAT ADJUSTING FRONT LEFT | 0.180 kg | 256.37 €256.37 $ | ||||
| 14 | 61316936980 | SWITCH SEAT ADJUSTING FRONT RIGHT | 0.180 kg | 256.37 €256.37 $ | ||||
| 14 | 61316936983 | SWITCH SEAT ADJUSTING FRONT LEFT | 0.240 kg | 256.37 €256.37 $ | ||||
| 14 | 61316936984 | SWITCH SEAT ADJUSTING FRONT RIGHT | 0.240 kg | 252.09 €252.09 $ | ||||
| 15 | 52107118501 | COVERING SEAT RAIL LEFT | 0.060 kg | 45.27 €45.27 $ | ||||
| 15 | 52107118502 | COVERING SEAT RAIL RIGHT | 0.060 kg | 45.27 €45.27 $ | ||||
| 16 | 52109110103 | Covering cap, seat rail | SCHWARZ | 0.000 kg | 19.29 €19.29 $ | |||
| 16 | 52109110104 | Covering cap, seat rail | SCHWARZ | 0.000 kg | 24.14 €24.14 $ | |||
| 17 | 07147146686 | Fillister head screw | 0.030 kg | 3.87 €3.87 $ | ||||
| 18 | 52107140863 | Bracket, control unit | 0.050 kg | 32.92 €32.92 $ | ||||
| 19 | 07147148547 | Fillister head screw | M4X8 | 0.000 kg | 1.51 €1.51 $ | |||
| 20 | 52107161312 | Connection element for thigh support | 0.100 kg | 17.64 €17.64 $ | ||||
| 21 | 52107152229 | BRACKET CONTROL UNIT LEFT | 0.170 kg | 26.52 €26.52 $ | ||||
| 21 | 52107152230 | BRACKET CONTROL UNIT RIGHT | 0.170 kg | 26.52 €26.52 $ | ||||
| 22 | 52107160593 | Cover, belt buckle guard, left | SCHWARZ | 0.020 kg | 24.14 €24.14 $ | |||
| 22 | 52107160594 | Cover, belt buckle guard, right | SCHWARZ | 0.020 kg | 24.14 €24.14 $ | |||
| 23 | 07146956577 | Fillister head screw | M5X10 | 0.000 kg | 1.61 €1.61 $ |
