E91 320i N46N Touring / Engine/ Intake Manifold System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

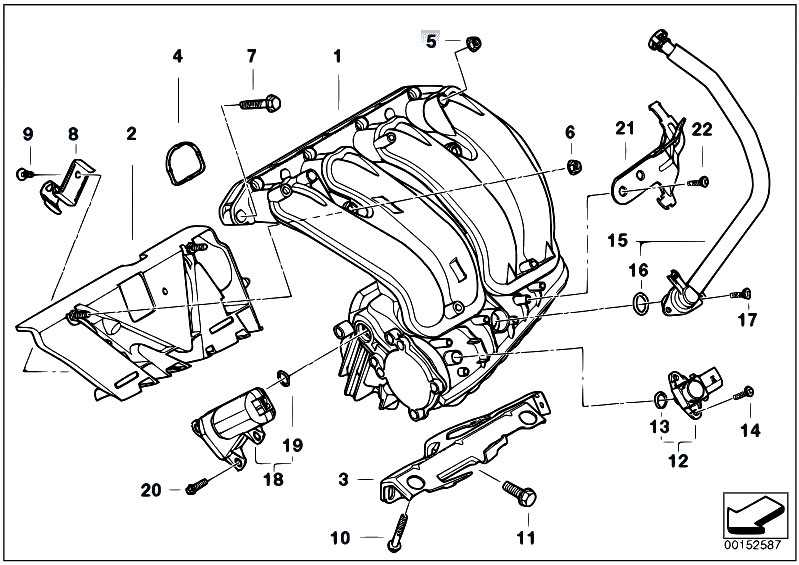

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11617560235 | Intake manifold | 4.300 kg | 742.60 €742.60 $ | ||||
| 2 | 11617509718 | Support | 0.290 kg | 60.52 €60.52 $ | ||||
| 3 | 11617541013 | Intake manifold support | 0.591 kg | 66.31 €66.31 $ | ||||
| 4 | 11617530703 | Set of profile gaskets | 0.010 kg | 38.17 €38.17 $ | ||||
| 5 | 07129905541 | Hex nut with plate | AM7 ZNNIV SI | 0.000 kg | 0.78 €0.78 $ | |||
| 6 | 07129904869 | Hex nut | BM6-8-ZNS3 | 0.010 kg | 1.04 €1.04 $ | |||
| 7 | 07119903918 | Hex Bolt with washer | M7X50-U1 | 0.020 kg | 1.46 €1.46 $ | |||
| 8 | 11617503521 | BRACKET KNOCK SENSOR | 0.010 kg | 6.62 €6.62 $ | ||||
| 9 | 11617533331 | Screw | K60X22 | 0.000 kg | 0.91 €0.91 $ | |||
| 10 | 11617533343 | Torx-bolt with washer | M6X27 | 0.010 kg | 10.53 €10.53 $ | |||
| 11 | 07119905394 | Hex Bolt with washer | M8X25-8.8-ZNNIV | 0.020 kg | 0.75 €0.75 $ | |||
| 12 | 13627542623 | Differential pressure sensor | 0.030 kg | 65.86 €65.86 $ | ||||
| 13 | 12147518425 | O-ring | 9,25X1,78 | 0.000 kg | 0.11 €0.11 $ | |||
| 13 | 13627515272 | O-ring | 0.001 kg | 6.92 €6.92 $ | ||||
| 14 | 11617533330 | Screw | K50X14 | 0.000 kg | 2.84 €2.84 $ | |||
| 15 | 11617560236 | Vent hose | 0.140 kg | 53.08 €53.08 $ | ||||
| 16 | 11617533329 | O-ring | 23,6X3,55 | 0.000 kg | 7.39 €7.39 $ | |||
| 17 | 11617533331 | Screw | K60X22 | 0.000 kg | 0.91 €0.91 $ | |||
| 18 | 11617511383 | Actuator | 0.200 kg | 365.51 €365.51 $ | ||||
| 19 | 11617514883 | O-ring | 18X3,55 | 0.000 kg | 4.24 €4.24 $ | |||
| 20 | 11617533344 | Torx-bolt with washer | M6X18 | 0.010 kg | 2.99 €2.99 $ | |||
| 21 | 11617530707 | Bracket, cable harness | 0.100 kg | 41.45 €41.45 $ | ||||
| 22 | 11617533331 | Screw | K60X22 | 0.000 kg | 0.91 €0.91 $ |
