E92 335d M57N2 Coupe / Vehicle Electrical System/ Single Parts Distribution Box Front
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

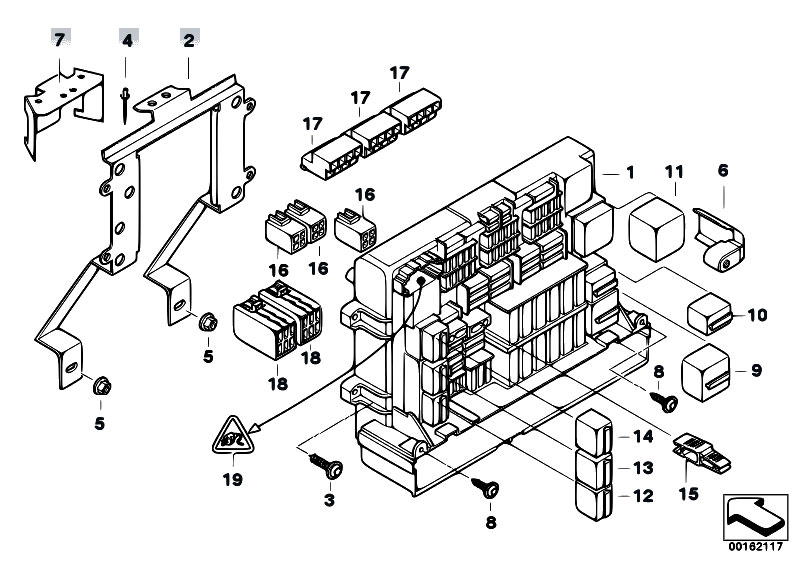

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 61146978270 | Power distribution box, front | 0.810 kg | 487.81 €487.81 $ | ||||
| 1 | 61146906622 | Original OEM part | 0.100 kg | 102.89 €102.89 $ | ||||
| 1 | 61146978271 | Power distribution box, front | 0.810 kg | 500.96 €500.96 $ | ||||
| 2 | 61148384627 | Original OEM part | 0.100 kg | 8.70 €8.70 $ | ||||
| 2 | 61149119047 | BRACKET CURRENT DISTRIBUTOR | 0.310 kg | 9.41 €9.41 $ | ||||
| 3 | 07147142048 | Fillister head screw | 0.000 kg | 1.57 €1.57 $ | ||||
| 4 | 07146952638 | Blind rivet | 0.000 kg | 1.50 €1.50 $ | ||||
| 5 | 07119904022 | Hex nut | M6 | 0.003 kg | 0.89 €0.89 $ | |||
| 6 | 61146906612 | Cover, power distribution box B+ | 0.010 kg | 1.12 €1.12 $ | ||||
| 7 | 61148384625 | Spring | 0.010 kg | 1.13 €1.13 $ | ||||
| 8 | 07129904962 | Screw | NS-TS4X12-ZNFE | 0.000 kg | 1.54 €1.54 $ | |||
| 9 | 12631742690 | Relay changer salmon red | 0.030 kg | 19.08 €19.08 $ | ||||
| 10 | 61316919113 | Relay, change-over contact, black | 0.020 kg | 19.08 €19.08 $ | ||||
| 11 | 61366901469 | Relay, make contact | 0.040 kg | 19.08 €19.08 $ | ||||
| 12 | 61366980177 | Relay, changeover contact, green | 0.020 kg | 19.08 €19.08 $ | ||||
| 13 | 61316919113 | Relay, change-over contact, black | 0.020 kg | 19.08 €19.08 $ | ||||
| 14 | 61366980177 | Relay, changeover contact, green | 0.020 kg | 19.08 €19.08 $ | ||||
| 15 | 61146936578 | Fuse clip | 0.000 kg | 2.30 €2.30 $ | ||||
| 16 | 61146938604 | Universal socket housing DFK40 | 6 POL. | 0.010 kg | 3.20 €3.20 $ | |||
| 17 | 61146937068 | Universal socket housing MDK3 | 10+5 POL. | 0.010 kg | 1.52 €1.52 $ | |||
| 18 | 61146937066 | Universal socket housing MAK8 | 6 POL. | 0.020 kg | 6.70 €6.70 $ | |||
| 19 | 61136925614 | Universal socket housing, hybrid | 6+4 POL. | 0.010 kg | 14.84 €14.84 $ |
