E93 M3 S65 Cabrio / Engine/ Lubrication System Oil Pump
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

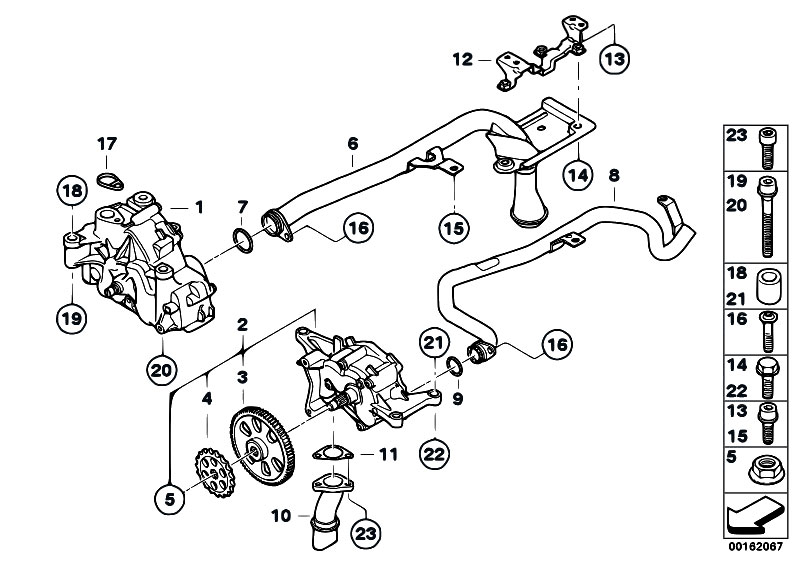

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11417838311 | Oil pump | 2.620 kg | 2,701.08 €2,701.08 $ | ||||
| 2 | 11417838312 | Oil suction pump | 1.840 kg | 749.83 €749.83 $ | ||||
| 3 | 11367840409 | GEAR WHEEL | 0.370 kg | 118.45 €118.45 $ | ||||
| 6 | 11417838525 | Suction pipe | 0.460 kg | 161.04 €161.04 $ | ||||
| 7 | 11417839832 | O-ring | 25X2 | 0.000 kg | 3.85 €3.85 $ | |||
| 8 | 11417838526 | Return pipe | 0.300 kg | 55.00 €55.00 $ | ||||
| 9 | 11417839833 | O-ring | 19X2 | 0.000 kg | 3.24 €3.24 $ | |||
| 10 | 11417838527 | Suction pipe | 0.090 kg | 69.01 €69.01 $ | ||||
| 11 | 11417838534 | Gasket | 0.000 kg | 5.34 €5.34 $ | ||||
| 12 | 11417838524 | Bracket Oil Pipe | 0.080 kg | 44.75 €44.75 $ | ||||
| 13 | 07129905692 | Isa screw with washer | M6X20-ZNNIV SI | 0.010 kg | 2.12 €2.12 $ | |||
| 14 | 07119905693 | Hex Bolt with washer | M6X14-U1 | 0.010 kg | 1.42 €1.42 $ | |||
| 15 | 07129905692 | Isa screw with washer | M6X20-ZNNIV SI | 0.010 kg | 2.12 €2.12 $ | |||
| 16 | 07129904819 | Torx-bolt with washer | M6X16-U1 | 0.006 kg | 0.92 €0.92 $ | |||
| 17 | 11427838016 | Gasket | 0.000 kg | 5.00 €5.00 $ | ||||
| 18 | 11121726238 | Dowel | D=10,5MM | 0.000 kg | 1.05 €1.05 $ | |||
| 19 | 07129905861 | Isa screw with washer | M8X60-ZNNIV SI | 0.026 kg | 3.43 €3.43 $ | |||
| 20 | 07129905602 | Isa screw with washer | M8X110-ZNNIV SI | 0.039 kg | 4.69 €4.69 $ | |||
| 21 | 11121726242 | Dowel | D=8,5X9MM | 0.000 kg | 1.04 €1.04 $ | |||
| 22 | 07119905429 | Hex Bolt with washer | M6X30-U1 | 0.010 kg | 2.41 €2.41 $ | |||
| 23 | 07129901130 | Isa screw | M6X20-8.8 | 0.010 kg | 0.89 €0.89 $ |
