F02 730Ld N57 Sedan / Bodywork/ Floor Panel Trunk Wheel Housing Rear
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

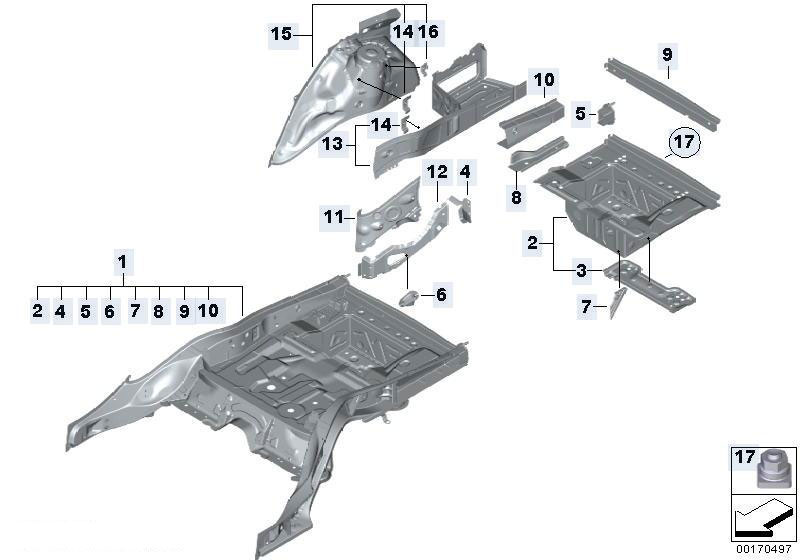

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 41117204105 | Trunk floor | 53.640 kg | 2,606.18 €2,606.18 $ | ||||
| 2 | 41127204116 | Luggage-compartment floor, rear | 12.660 kg | 1,041.25 €1,041.25 $ | ||||
| 3 | 41117204117 | Support, air supply system rear | 0.900 kg | 64.26 €64.26 $ | ||||
| 4 | 41117204107 | Support, partition, left | 0.140 kg | 16.06 €16.06 $ | ||||
| 4 | 41117204108 | Support, partition, right | 0.140 kg | 16.06 €16.06 $ | ||||
| 5 | 41117204106 | Mount, bumper | 0.890 kg | 44.55 €44.55 $ | ||||
| 7 | 41117204111 | Support, air supply unit, left | 0.140 kg | 17.02 €17.02 $ | ||||
| 7 | 41117204112 | Support, air supply unit, right | 0.140 kg | 18.21 €18.21 $ | ||||
| 8 | 41117204113 | Left side member | 0.360 kg | 91.81 €91.81 $ | ||||
| 8 | 41117204114 | Right side member | 0.330 kg | 91.81 €91.81 $ | ||||
| 9 | 41117204115 | Rear cross member | 0.730 kg | 97.32 €97.32 $ | ||||
| 10 | 41117204137 | LEFT SIDE MEMBER EXTENSION | 1.340 kg | 57.21 €57.21 $ | ||||
| 10 | 41117204138 | RIGHT SIDE MEMBER EXTENSION | 1.340 kg | 114.76 €114.76 $ | ||||
| 11 | 41117204087 | Closing plate, longitudinal member, left | 1.390 kg | 114.76 €114.76 $ | ||||
| 11 | 41117204088 | Closing plate, longitudinal member,right | 1.370 kg | 53.01 €53.01 $ | ||||
| 12 | 41117204089 | Reinforcement for side member, left | 1.150 kg | 164.38 €164.38 $ | ||||
| 12 | 41117204090 | Reinforcement for side member, right | 1.150 kg | 164.38 €164.38 $ | ||||
| 13 | 41127204103 | Trunk floor left | 4.720 kg | 586.30 €586.30 $ | ||||
| 13 | 41127204104 | Trunk floor right | 4.420 kg | 203.71 €203.71 $ | ||||
| 14 | 41147204101 | Holder,activat.carbon contain.,front | 0.050 kg | 2.68 €2.68 $ | ||||
| 15 | 41007204097 | Rear left wheelhouse, inner half | 7.140 kg | 534.81 €534.81 $ | ||||
| 15 | 41007204098 | Rear right wheelhouse, inner half | 7.300 kg | 534.81 €534.81 $ | ||||
| 16 | 41147204102 | Bracket, activated charcoal filter, rear | 0.020 kg | 3.01 €3.01 $ | ||||
| 17 | 07147182215 | EARTH PIN | M8X12 | 0.020 kg | 3.38 €3.38 $ | |||
| 17 | 41118367249 | EARTH PIN | M6X12 | 0.030 kg | 4.15 €4.15 $ |
