F02 730Ld N57 Sedan / Bodywork/ Front Door Hinge Door Brake
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

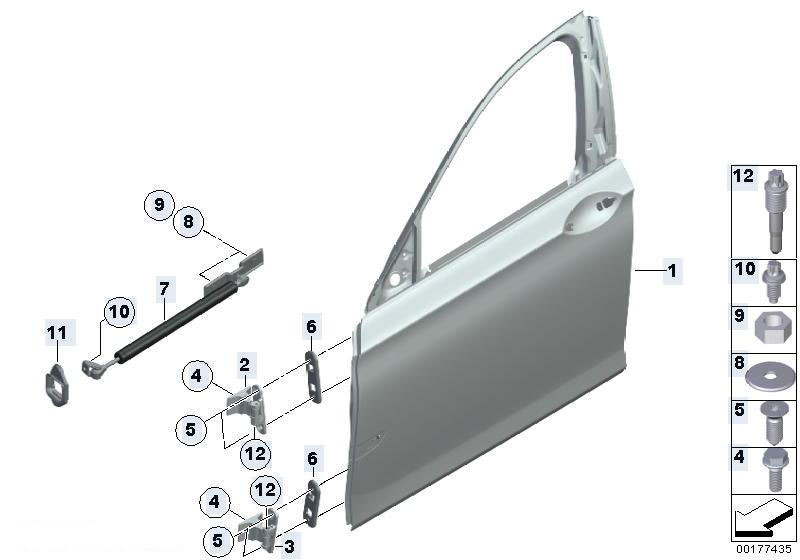

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 41007203977 | Door front left | 11.710 kg | 1,439.24 €1,439.24 $ | ||||
| 1 | 41007203978 | Door, front, right | 11.480 kg | 1,440.26 €1,440.26 $ | ||||
| 2 | 41007203983 | LEFT UPPER FRONT DOOR HINGE | 0.500 kg | 59.25 €59.25 $ | ||||
| 2 | 41007203984 | RIGHT UPPER FRONT DOOR HINGE | 0.500 kg | 59.25 €59.25 $ | ||||
| 3 | 41007203985 | LEFT LOWER FRONT DOOR HINGE | 0.510 kg | 59.25 €59.25 $ | ||||
| 3 | 41007203986 | RIGHT LOWER FRONT DOOR HINGE | 0.510 kg | 109.25 €109.25 $ | ||||
| 4 | 07147184165 | Hex Bolt | M12X36 | 0.050 kg | 4.01 €4.01 $ | |||
| 5 | 07147184164 | Torx-countersunk screw | ISA M8X28 | 0.010 kg | 1.14 €1.14 $ | |||
| 6 | 41517019874 | Compensating plate | 0,5MM | 0.010 kg | 13.23 €13.23 $ | |||
| 7 | 51217177615 | Door brake, front left | 0.770 kg | 136.98 €136.98 $ | ||||
| 7 | 51217177616 | Door brake, front right | 0.770 kg | 136.98 €136.98 $ | ||||
| 8 | 16117698872 | Washer | D=32 | 0.000 kg | 4.06 €4.06 $ | |||
| 9 | 07119904032 | Hex nut | M8-8-ZNS3 | 0.000 kg | 0.32 €0.32 $ | |||
| 10 | 07146980141 | Torx-bolt with washer | ASA M8X20 | 0.020 kg | 0.60 €0.60 $ | |||
| 11 | 51217177619 | Front door brake gasket | 0.020 kg | 22.14 €22.14 $ | ||||
| 12 | 51217188082 | Pin | 0.030 kg | 9.27 €9.27 $ |
