F02 730Ld N57 Sedan / Bodywork/ Partition Trunk Floor Parts
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

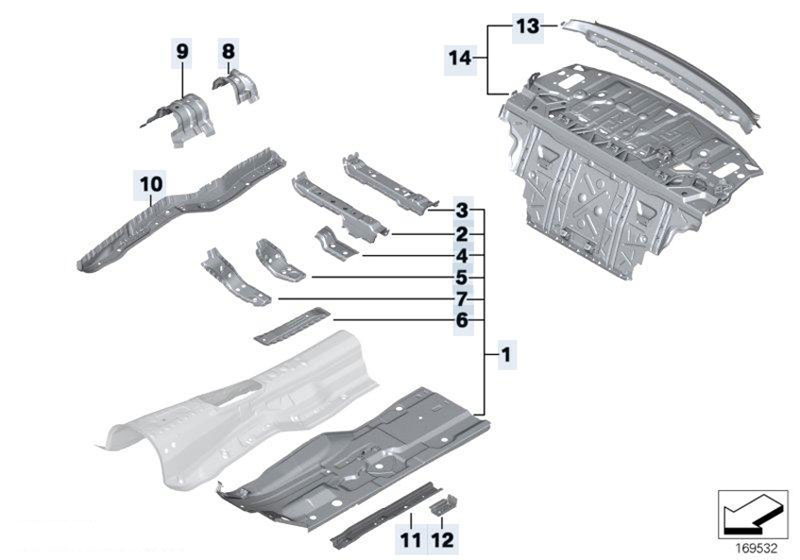

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 41127204141 | Floor panel left | 13.780 kg | 379.80 €379.80 $ | ||||
| 1 | 41127204142 | Floor panel right | 13.250 kg | 323.02 €323.02 $ | ||||
| 2 | 41117204173 | LEFT FRONT SEAT CONSOLE | 1.850 kg | 141.90 €141.90 $ | ||||
| 2 | 41117204174 | RIGHT FRONT SEAT CONSOLE | 1.920 kg | 88.69 €88.69 $ | ||||
| 3 | 41117204175 | LEFT REAR SEAT CONSOLE | 1.450 kg | 53.20 €53.20 $ | ||||
| 3 | 41117204176 | RIGHT REAR SEAT CONSOLE | 1.450 kg | 53.20 €53.20 $ | ||||
| 4 | 41117204145 | Reinforcement, seat console, left | 0.360 kg | 10.19 €10.19 $ | ||||
| 4 | 41117204146 | Reinforcement, seat console, right | 0.410 kg | 6.24 €6.24 $ | ||||
| 5 | 41117204147 | Reinforcement, tunnel, rear left | 0.430 kg | 39.91 €39.91 $ | ||||
| 5 | 41117204148 | Reinforcement, tunnel, rear right | 0.430 kg | 39.71 €39.71 $ | ||||
| 6 | 41117204151 | Engine support reinforcement | 0.600 kg | 150.66 €150.66 $ | ||||
| 7 | 41117204149 | Reinforcement, tunnel, front left | 0.610 kg | 39.21 €39.21 $ | ||||
| 7 | 41117204150 | Reinforcement, tunnel, front right | 0.600 kg | 15.45 €15.45 $ | ||||
| 8 | 41117204164 | Bracket for propel. shaft centre bearing | 0.660 kg | 45.62 €45.62 $ | ||||
| 9 | 41127204183 | Reinforcement tunnel | 1.350 kg | 61.69 €61.69 $ | ||||
| 10 | 41117204189 | Console, gearbox support, left | 8.320 kg | 198.62 €198.62 $ | ||||
| 10 | 41117204190 | Console, gearbox support, right | 3.010 kg | 198.62 €198.62 $ | ||||
| 11 | 41117204181 | EXTENSION ENGINE SUPPORT LEFT | 1.060 kg | 164.38 €164.38 $ | ||||
| 11 | 41117204182 | EXTENSION ENGINE SUPPORT RIGHT | 1.060 kg | 164.38 €164.38 $ | ||||
| 12 | 41127204177 | Top, engine support extension | 0.230 kg | 18.33 €18.33 $ | ||||
| 13 | 41117204093 | REAR WINDOW FRAME BOTTOM PART | 1.690 kg | 114.76 €114.76 $ | ||||
| 14 | 41347204092 | Partition trunk | 16.450 kg | 340.97 €340.97 $ |
