F02 730Ld N57 Sedan / Bodywork/ Rear Door Hinge Door Brake
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

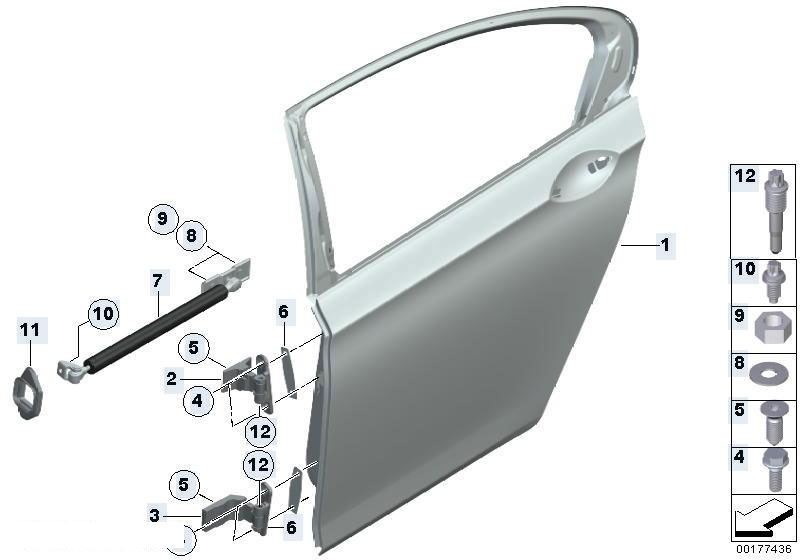

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 41007203981 | Door, rear left | 10.820 kg | 1,814.09 €1,814.09 $ | ||||
| 1 | 41007203982 | Door, rear right | 10.820 kg | 1,815.36 €1,815.36 $ | ||||
| 2 | 41007203987 | Hinge, rear door, upper, left | 0.510 kg | 59.25 €59.25 $ | ||||
| 2 | 41007203988 | Hinge, rear door, upper, right | 0.510 kg | 59.25 €59.25 $ | ||||
| 3 | 41007203989 | Hinge, rear door, lower, left | 0.590 kg | 59.25 €59.25 $ | ||||
| 3 | 41007203990 | Hinge, rear door, lower, right | 0.590 kg | 59.25 €59.25 $ | ||||
| 4 | 07147184165 | Hex Bolt | M12X36 | 0.050 kg | 4.01 €4.01 $ | |||
| 5 | 07147184164 | Torx-countersunk screw | ISA M8X28 | 0.010 kg | 1.14 €1.14 $ | |||
| 6 | 41517019874 | Compensating plate | 0,5MM | 0.010 kg | 13.23 €13.23 $ | |||
| 7 | 51227177647 | Door brake, rear left | 0.680 kg | 136.98 €136.98 $ | ||||
| 7 | 51227177648 | Door brake, rear right | 0.680 kg | 136.98 €136.98 $ | ||||
| 8 | 16117698872 | Washer | D=32 | 0.000 kg | 4.06 €4.06 $ | |||
| 9 | 07119904032 | Hex nut | M8-8-ZNS3 | 0.000 kg | 0.32 €0.32 $ | |||
| 10 | 07146980141 | Torx-bolt with washer | ASA M8X20 | 0.020 kg | 0.60 €0.60 $ | |||
| 11 | 51217177651 | Gasket door brake rear | 0.020 kg | 22.14 €22.14 $ | ||||
| 12 | 51217188082 | Pin | 0.030 kg | 9.27 €9.27 $ |
