F02 730Ld N57 Sedan / Engine/ Intake Manifold Agr With Flap Control
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

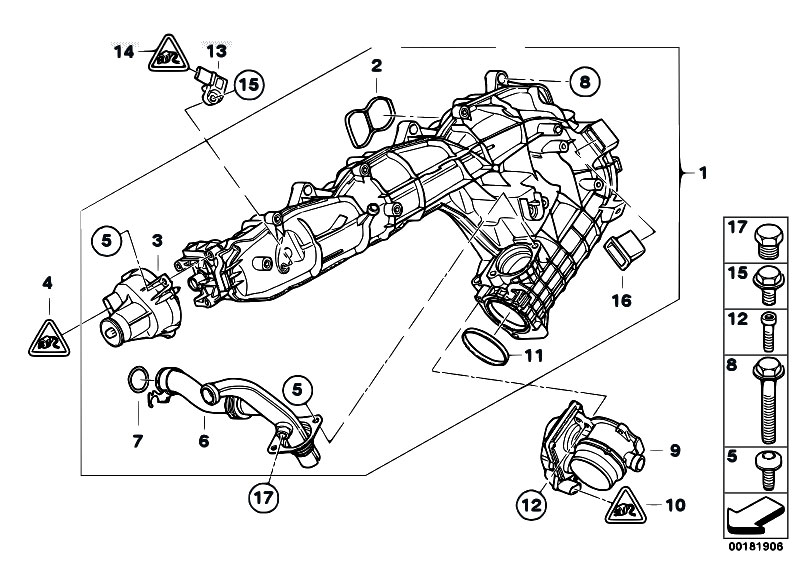

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11617800088 | Intake manifold with flap control | 3.040 kg | 938.48 €938.48 $ | ||||
| 2 | 11617807480 | Profile-gasket | 0.000 kg | 15.09 €15.09 $ | ||||
| 3 | 11617811300 | Adjuster unit | 0.283 kg | 297.16 €297.16 $ | ||||
| 4 | 61133333333 | Plug, see part info in 'ZI' column | 0.000 kg | 14.52 €14.52 $ | ||||
| 5 | 11617805175 | Plastic bolt | 6,0X18 | 0.010 kg | 4.70 €4.70 $ | |||
| 6 | 11617807481 | Pipe | 0.250 kg | 307.98 €307.98 $ | ||||
| 7 | 11617807482 | O-ring | 25X3,7 | 0.000 kg | 3.18 €3.18 $ | |||
| 8 | 11617807483 | Fastening elements | 0.020 kg | 16.37 €16.37 $ | ||||
| 9 | 13547806231 | Throttle | 0.620 kg | 588.93 €588.93 $ | ||||
| 10 | 12527540419 | Socket housing | HFM | 0.000 kg | 4.80 €4.80 $ | |||
| 11 | 11617801943 | Profile-gasket | 0.000 kg | 9.06 €9.06 $ | ||||
| 12 | 07119905629 | Fillister head screw | M6X20-U1-8.8 | 0.010 kg | 0.81 €0.81 $ | |||
| 13 | 13627804742 | Sensor, boost pressure | 0.020 kg | 102.65 €102.65 $ | ||||
| 14 | 12521427789 | Receptacle housing | 3-POL | 0.008 kg | 4.35 €4.35 $ | |||
| 15 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 16 | 17111712911 | Rubber mounting | 0.010 kg | 4.00 €4.00 $ | ||||
| 17 | 13627807813 | Screw plug | 0.010 kg | 8.74 €8.74 $ |
