F02 740Li N54 Sedan / Fuel Preparation System/ Charge Air Duct
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

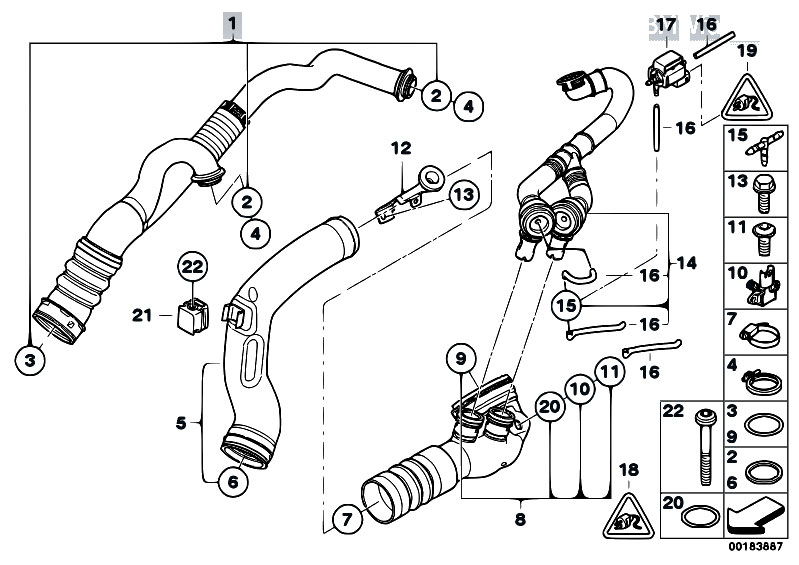

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 13717582313 | Charge-air duct | 0.910 kg | 401.80 €401.80 $ | ||||
| 2 | 13717568030 | O-ring | 0.000 kg | 12.52 €12.52 $ | ||||
| 3 | 11617801974 | Preformed seal | 0.020 kg | 5.41 €5.41 $ | ||||
| 3 | 11618506786 | Preformed seal | 0.000 kg | 10.91 €10.91 $ | ||||
| 4 | 11657558922 | Clamp | 0.030 kg | 11.03 €11.03 $ | ||||
| 5 | 13717582314 | Charge-air duct | 0.560 kg | 297.93 €297.93 $ | ||||
| 6 | 11617801971 | Pre-formed seal | 0.000 kg | 7.89 €7.89 $ | ||||
| 6 | 11618506785 | Pre-formed seal | 0.000 kg | 7.76 €7.76 $ | ||||
| 7 | 07129952127 | Hose clamp | L65-72 | 0.020 kg | 2.54 €2.54 $ | |||
| 8 | 13717571351 | Charge-air duct | 0.600 kg | 189.29 €189.29 $ | ||||
| 8 | 13717594722 | Charge-air duct | 0.550 kg | 422.74 €422.74 $ | ||||
| 9 | 13717568031 | O-ring | 0.010 kg | 14.27 €14.27 $ | ||||
| 10 | 13627551429 | Pressure sensor | 0.020 kg | 105.44 €105.44 $ | ||||
| 11 | 51417067920 | Fillister head screw | TS 5X16 | 0.000 kg | 0.69 €0.69 $ | |||
| 12 | 13717571354 | Bracket, charge-air ducting | 0.070 kg | 52.58 €52.58 $ | ||||
| 13 | 07119905391 | Hex Bolt with washer | M8X55-U1 | 0.020 kg | 1.11 €1.11 $ | |||
| 14 | 13717571352 | Pipe, recirculated air | 0.360 kg | 98.11 €98.11 $ | ||||
| 14 | 13717594721 | Pipe, recirculated air | 0.230 kg | 279.40 €279.40 $ | ||||
| 15 | 13717577743 | Connection piece | 0.001 kg | 5.83 €5.83 $ | ||||
| 16 | 11747797129 | Vacuum hose | 3,5X2,0 | 0.038 kg | 46.72 €46.72 $ | |||
| 17 | 13637591625 | Changeover valve | 0.071 kg | 61.11 €61.11 $ | ||||
| 18 | 61133333333 | Plug, see part info in 'ZI' column | 0.000 kg | 14.21 €14.21 $ | ||||
| 19 | 61133333333 | Plug, see part info in 'ZI' column | 0.000 kg | 14.21 €14.21 $ | ||||
| 20 | 13627532318 | O-ring | 0.000 kg | 6.74 €6.74 $ | ||||
| 21 | 13717582315 | Rubber mounting | 0.050 kg | 11.87 €11.87 $ | ||||
| 22 | 07147582316 | Screw | 0.010 kg | 2.51 €2.51 $ |
