F02 740Li N54 Sedan / Steering/ Hydro Steering Oil Pipes
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

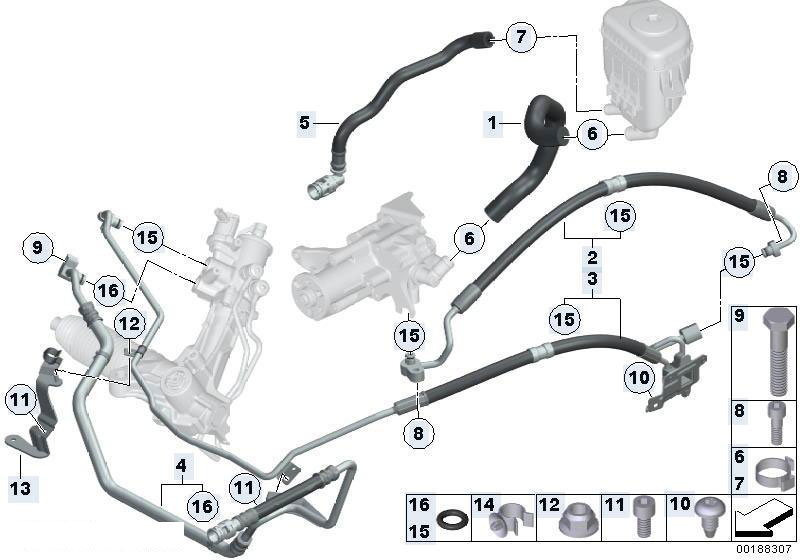

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 32416789570 | Suction pipe | 0.160 kg | 48.52 €48.52 $ | ||||
| 2 | 32416778514 | Expansion hose 1st part | 0.450 kg | 255.88 €255.88 $ | ||||
| 3 | 32416778515 | Expansion hose 2nd part | 0.620 kg | 280.21 €280.21 $ | ||||
| 3 | 32416781956 | Expansion hose 2nd part | 0.770 kg | 306.52 €306.52 $ | ||||
| 4 | 32416781961 | Return pipe | 0.560 kg | 85.52 €85.52 $ | ||||
| 4 | 32416789455 | Return pipe | 0.860 kg | 286.67 €286.67 $ | ||||
| 4 | 32416781962 | Return pipe | 0.550 kg | 291.96 €291.96 $ | ||||
| 4 | 32416789451 | Return pipe, active steering | 0.880 kg | 286.67 €286.67 $ | ||||
| 5 | 32416778520 | Radiator return line | 0.120 kg | 139.35 €139.35 $ | ||||
| 6 | 32416763470 | Hose clamp | D= 25MM | 0.010 kg | 3.68 €3.68 $ | |||
| 7 | 32416751127 | Hose clamp | 0.010 kg | 2.01 €2.01 $ | ||||
| 8 | 07119905833 | Fillister head screw | M8X25-10.9-ZNS3 | 0.010 kg | 0.71 €0.71 $ | |||
| 9 | 07119902910 | Hex Bolt | M8X40-8.8-ZNS3 | 0.020 kg | 1.46 €1.46 $ | |||
| 10 | 31146786689 | Torx screw, self-tapping | M6X13-ZNNIVSI | 0.010 kg | 2.50 €2.50 $ | |||
| 11 | 07119902840 | Fillister head screw | M6X12-ZNS3 | 0.000 kg | 0.40 €0.40 $ | |||
| 12 | 07119902751 | Hex nut | M6-8-ZNS3 | 0.000 kg | 1.61 €1.61 $ | |||
| 13 | 32416788263 | Bracket f expansion hose | 0.130 kg | 33.20 €33.20 $ | ||||
| 14 | 13537792950 | Tubing support | D=17/D=19 | 0.000 kg | 5.39 €5.39 $ | |||
| 14 | 32416767170 | Hose clamp | 0.000 kg | 6.73 €6.73 $ | ||||
| 15 | 32416788696 | O-ring | 11X1,8 HNBR | 0.001 kg | 13.77 €13.77 $ | |||
| 16 | 32416788697 | O-ring | 12X1,8 HNBR | 0.001 kg | 6.69 €6.69 $ |
