E12 520i M10 Sedan / Fuel Preparation System/ Fuel Supply Filter
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

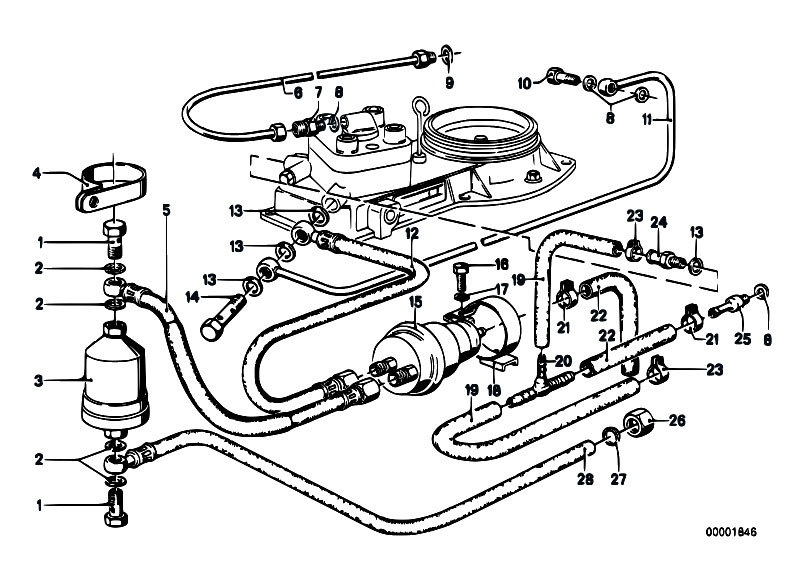

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 32411117181 | HOLLOW BOLT | M14X26 | 0.026 kg | 1.91 €1.91 $ | |||
| 1 | 11361740290 | Original OEM part | 0.100 kg | 2.03 €2.03 $ | ||||
| 1 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.83 €1.83 $ | |||
| 1 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.51 €5.51 $ | |||
| 2 | 07119963201 | Gasket ring | A14X18-CU | 0.001 kg | 0.47 €0.47 $ | |||
| 3 | 00000000000 | 0.00 €0.00 $ | ||||||
| 3 | 13321270039 | Original OEM part | 0.100 kg | 46.87 €46.87 $ | ||||
| 4 | 07129952123 | Hose clamp | L=53-60MM | 0.019 kg | 2.54 €2.54 $ | |||
| 5 | 00000000000 | 0.00 €0.00 $ | ||||||
| 5 | 00000000000 | 0.00 €0.00 $ | ||||||
| 5 | 00000000000 | 0.00 €0.00 $ | ||||||
| 6 | 13311265739 | Original OEM part | 0.100 kg | 29.82 €29.82 $ | ||||
| 6 | 13311265739 | Original OEM part | 0.100 kg | 29.82 €29.82 $ | ||||
| 7 | 00000000000 | 0.00 €0.00 $ | ||||||
| 8 | 07119963042 | Gasket ring | A08X11,5-CU | 0.000 kg | 0.32 €0.32 $ | |||
| 9 | 07119963072 | Gasket ring | A10X13,5-CU | 0.000 kg | 0.32 €0.32 $ | |||
| 10 | 13531264360 | Original OEM part | 0.100 kg | 7.43 €7.43 $ | ||||
| 11 | 00000000000 | 0.00 €0.00 $ | ||||||
| 12 | 00000000000 | 0.00 €0.00 $ | ||||||
| 13 | 07119963129 | Gasket ring | A12X15-CU | 0.000 kg | 0.47 €0.47 $ | |||
| 14 | 00000000000 | 0.00 €0.00 $ | ||||||
| 15 | 00000000000 | 0.00 €0.00 $ | ||||||
| 16 | 07119913466 | Hex Bolt | M6X16-8.8 ZN | 0.004 kg | 0.24 €0.24 $ | |||
| 17 | 07119932099 | WAVE WASHER | B6 | 0.000 kg | 0.41 €0.41 $ | |||
| 17 | 07119904496 | WAVE WASHER | B6-ZNS3 | 0.001 kg | 1.18 €1.18 $ | |||
| 18 | 00000000000 | 0.00 €0.00 $ | ||||||
| 19 | 13311722262 | Original OEM part | 0.100 kg | 8.93 €8.93 $ | ||||
| 19 | 16121180409 | Fuel hose | 8X13MM | 0.143 kg | 46.52 €46.52 $ | |||
| 20 | 00000000000 | 0.00 €0.00 $ | ||||||
| 21 | 16111177646 | Original OEM part | 0.100 kg | 0.66 €0.66 $ | ||||
| 21 | 07129952102 | Hose clamp | L=9-12 | 0.010 kg | 1.73 €1.73 $ | |||
| 22 | 13311272750 | Fuel hose | 6X11MM | 0.122 kg | 65.65 €65.65 $ | |||
| 23 | 07129952104 | Hose clamp | L12-15 | 0.010 kg | 1.68 €1.68 $ | |||
| 24 | 00000000000 | 0.00 €0.00 $ | ||||||
| 25 | 00000000000 | 0.00 €0.00 $ | ||||||
| 26 | 00000000000 | 0.00 €0.00 $ | ||||||
| 27 | 07119970111 | Original OEM part | 0.100 kg | 1.42 €1.42 $ | ||||
| 28 | 00000000000 | 0.00 €0.00 $ |
