E34 540i M60 Touring / Engine/ Upper Timing Case
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

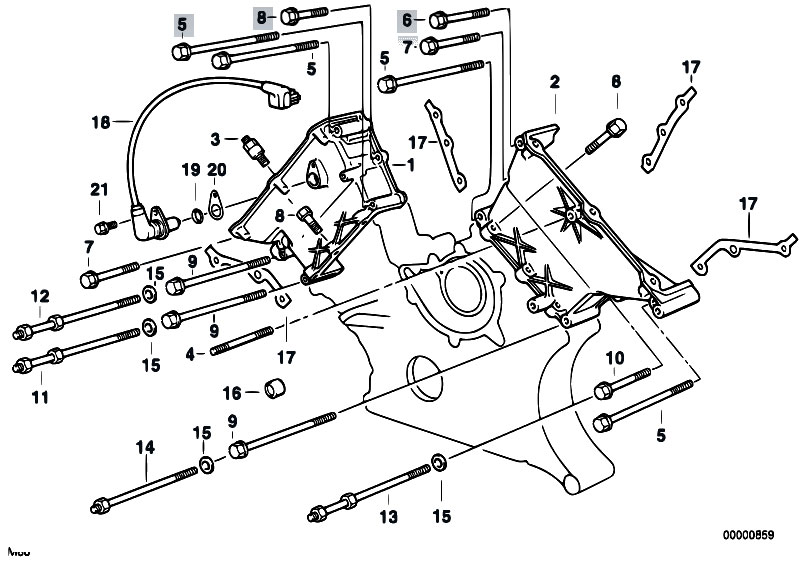

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11141729583 | Timing case cover, top | ZYL.1-4 | 0.698 kg | 105.91 €105.91 $ | |||
| 2 | 11141729585 | Original OEM part | 0.100 kg | 407.59 €407.59 $ | ||||
| 3 | 11121733295 | Stud bolt | 0.013 kg | 13.57 €13.57 $ | ||||
| 4 | 07129908105 | Stud bolt | M6X45 | 0.008 kg | 6.91 €6.91 $ | |||
| 5 | 11141731752 | Hex Bolt with washer | M6X75 | 0.017 kg | 3.61 €3.61 $ | |||
| 5 | 11141747633 | Hex Bolt with washer | M6X80-Z1 | 0.018 kg | 17.37 €17.37 $ | |||
| 6 | 11141731752 | Hex Bolt with washer | M6X75 | 0.017 kg | 3.61 €3.61 $ | |||
| 6 | 11141747633 | Hex Bolt with washer | M6X80-Z1 | 0.018 kg | 17.37 €17.37 $ | |||
| 7 | 11141731753 | Hex Bolt with washer | M6X40 | 0.011 kg | 1.89 €1.89 $ | |||
| 8 | 11141731754 | Hex Bolt with washer | M6X30-Z1 | 0.010 kg | 0.27 €0.27 $ | |||
| 9 | 11141731752 | Hex Bolt with washer | M6X75 | 0.017 kg | 3.61 €3.61 $ | |||
| 9 | 11141747633 | Hex Bolt with washer | M6X80-Z1 | 0.018 kg | 17.37 €17.37 $ | |||
| 10 | 11141731753 | Hex Bolt with washer | M6X40 | 0.011 kg | 1.89 €1.89 $ | |||
| 16 | 11141736758 | Gasket ring | 8,1X3,5X7,7 | 0.000 kg | 4.00 €4.00 $ | |||
| 17 | 11141433305 | GASKET SET CHAIN CASE ASBESTOFREE | ZYL.1-4 | 0.022 kg | 35.60 €35.60 $ | |||
| 17 | 11141433306 | GASKET SET CHAIN CASE ASBESTOFREE | ZYL.5-8 | 0.022 kg | 37.59 €37.59 $ | |||
| 18 | 12141731886 | Camshaft engine speed sensor | 0.106 kg | 107.63 €107.63 $ | ||||
| 19 | 12141727220 | O-ring | 18X2 | 0.001 kg | 1.34 €1.34 $ | |||
| 20 | 12141733000 | INTERMEDIATE PLATE | 0.002 kg | 7.58 €7.58 $ | ||||
| 21 | 07119919913 | Fillister head screw | M6X12 | 0.005 kg | 0.32 €0.32 $ |
