E36 316g M43 Compact / Fuel Preparation System/ Gas Bottle Pressure Tubeing
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

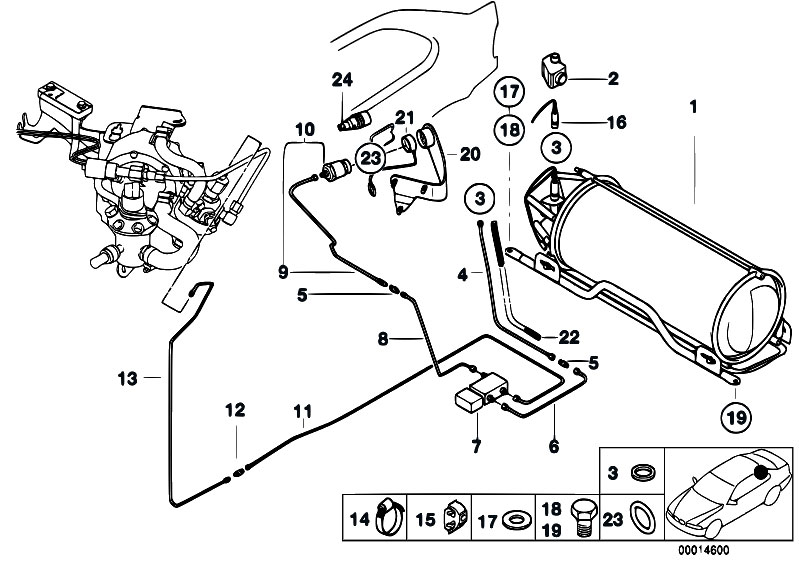

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 13831183452 | GAS BOTTLE WITH SUPPORT | CNG | 107.850 kg | 3,187.56 €3,187.56 $ | |||
| 2 | 13831183393 | Housing | 0.082 kg | 29.72 €29.72 $ | ||||
| 3 | 13831183285 | WASHER-GASKET | 0.002 kg | 8.47 €8.47 $ | ||||
| 4 | 13841183230 | High pressure pipe | 0.086 kg | 47.33 €47.33 $ | ||||
| 5 | 13841183241 | Connection piece | 0.030 kg | 34.49 €34.49 $ | ||||
| 6 | 13841183231 | High pressure pipe | 0.137 kg | 77.38 €77.38 $ | ||||
| 7 | 13851183427 | SHUT-OFF VALVE | CNG | 1.656 kg | 723.54 €723.54 $ | |||
| 8 | 13841183232 | High pressure pipe | 0.166 kg | 77.38 €77.38 $ | ||||
| 9 | 13851183249 | Filler connection | 0.563 kg | 234.35 €234.35 $ | ||||
| 10 | 13851183249 | Filler connection | 0.563 kg | 234.35 €234.35 $ | ||||
| 11 | 13841183443 | High pressure pipe | 0.256 kg | 77.38 €77.38 $ | ||||
| 12 | 13841183438 | Connection piece | 0.024 kg | 35.87 €35.87 $ | ||||
| 13 | 13841183441 | High pressure pipe | 0.263 kg | 77.38 €77.38 $ | ||||
| 14 | 16121176767 | Pipe clip | 0.000 kg | 2.26 €2.26 $ | ||||
| 15 | 61131370421 | Cable holder | D=8MM | 0.000 kg | 4.24 €4.24 $ | |||
| 16 | 13831183226 | Sensor | 0.190 kg | 393.52 €393.52 $ | ||||
| 17 | 72111950659 | Spacer | 0.012 kg | 2.24 €2.24 $ | ||||
| 18 | 72111970620 | Hex Bolt | 7/16X22 | 0.024 kg | 4.35 €4.35 $ | |||
| 19 | 07119900029 | Hex Bolt | M12X20 | 0.038 kg | 2.47 €2.47 $ | |||
| 20 | 13841183251 | Bracket | 0.225 kg | 28.09 €28.09 $ | ||||
| 21 | 13851183250 | Cap | 0.016 kg | 15.19 €15.19 $ | ||||
| 22 | 13841183803 | Vent hose | 0.106 kg | 7.08 €7.08 $ | ||||
| 23 | 13851183940 | O-RING FILLER CONNECTION | 0.001 kg | 17.64 €17.64 $ | ||||
| 24 | 13851183542 | FILLING VALVE ADAPTER | CNG | 0.601 kg | 445.97 €445.97 $ |
