E36 318is M42 Coupe / Engine/ Intake Manifold System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

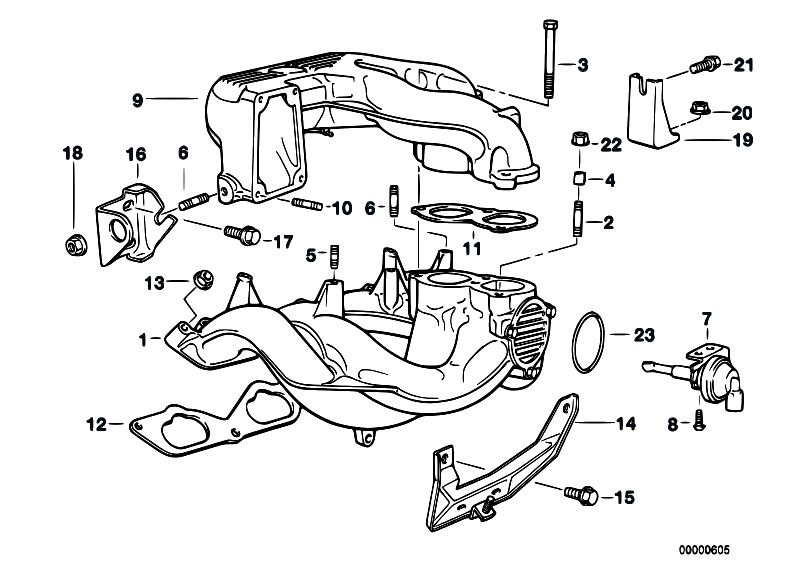

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11611734535 | INTAKE MANIFOLD LOWER PART | 2.880 kg | 554.29 €554.29 $ | ||||
| 2 | 07129908121 | Stud bolt | M7X40 | 0.010 kg | 2.30 €2.30 $ | |||
| 3 | 07119901683 | Hex Bolt with washer | M7X100-Z1 | 0.029 kg | 1.56 €1.56 $ | |||
| 4 | 11121713264 | Dowel | D=9,5MM | 0.000 kg | 9.62 €9.62 $ | |||
| 5 | 07129908100 | Stud bolt | M6X25-ZN | 0.000 kg | 1.68 €1.68 $ | |||
| 6 | 07129908125 | Stud bolt | M7X30 | 0.007 kg | 1.56 €1.56 $ | |||
| 7 | 11611734472 | Vacumm box | 0.053 kg | 90.33 €90.33 $ | ||||
| 8 | 07119906816 | Fillister head screw | M5X12 | 0.003 kg | 0.70 €0.70 $ | |||
| 9 | 11611734254 | INTAKE MANIFOLD UPPER PART | 1.750 kg | 210.93 €210.93 $ | ||||
| 10 | 07129908104 | Stud bolt | M6X40 | 0.007 kg | 8.85 €8.85 $ | |||
| 11 | 11611734490 | Gasket Asbestos Free | 0.008 kg | 9.22 €9.22 $ | ||||
| 12 | 11611734684 | Gasket Asbestos Free | 0.024 kg | 10.77 €10.77 $ | ||||
| 13 | 07129902630 | Hex nut with plate | AM7 | 0.004 kg | 0.22 €0.22 $ | |||
| 14 | 11611734227 | Support | 0.190 kg | 26.52 €26.52 $ | ||||
| 15 | 07119915082 | Hex Bolt with washer | M8X25-Z3 | 0.014 kg | 0.99 €0.99 $ | |||
| 16 | 11611734361 | Shackle | 0.121 kg | 11.06 €11.06 $ | ||||
| 17 | 07119915164 | Hex Bolt with washer | M8X22-Z1 | 0.015 kg | 0.67 €0.67 $ | |||
| 18 | 07129946307 | Hex nut with plate | BM7 | 0.008 kg | 6.41 €6.41 $ | |||
| 19 | 11611247643 | Support | 0.119 kg | 26.52 €26.52 $ | ||||
| 20 | 07129902630 | Hex nut with plate | AM7 | 0.004 kg | 0.22 €0.22 $ | |||
| 21 | 07119900509 | Hex Bolt with washer | M7X16-Z2 | 0.012 kg | 1.03 €1.03 $ | |||
| 22 | 07129902630 | Hex nut with plate | AM7 | 0.004 kg | 0.22 €0.22 $ | |||
| 23 | 11611734225 | O-ring | 65X1,8 | 0.001 kg | 6.83 €6.83 $ |
