E36 318ti M44 Compact / Engine/ Intake Manifold System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

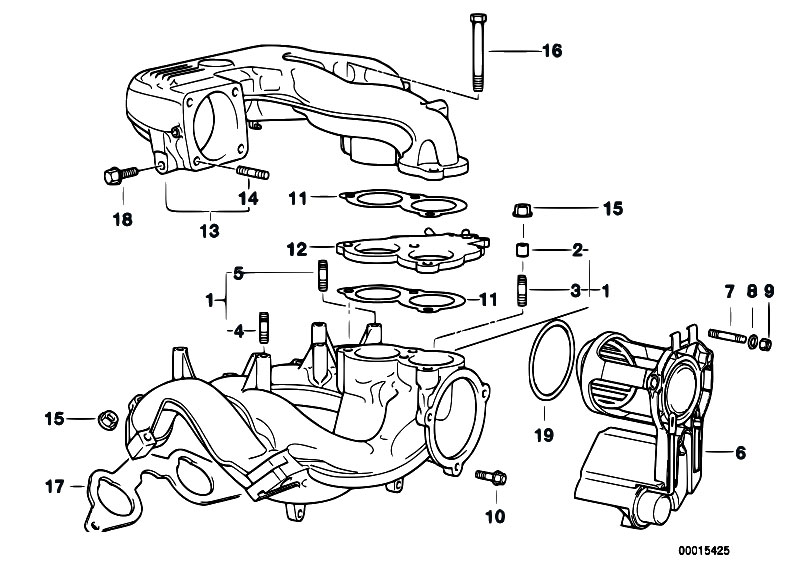

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11611247263 | INTAKE MANIFOLD LOWER PART | 3.154 kg | 188.67 €188.67 $ | ||||
| 2 | 11611739554 | Dowel | D=9,5MM | 0.004 kg | 7.42 €7.42 $ | |||
| 3 | 07129908122 | Stud bolt | M7X55 | 0.014 kg | 5.56 €5.56 $ | |||
| 4 | 07129908100 | Stud bolt | M6X25-ZN | 0.000 kg | 1.68 €1.68 $ | |||
| 5 | 07129908125 | Stud bolt | M7X30 | 0.007 kg | 1.56 €1.56 $ | |||
| 6 | 11611438404 | Adjuster unit | 0.320 kg | 474.02 €474.02 $ | ||||
| 7 | 11611247343 | Stud bolt | 0.010 kg | 2.34 €2.34 $ | ||||
| 8 | 07119931044 | Washer | 6,4 | 0.001 kg | 0.33 €0.33 $ | |||
| 9 | 07119904023 | Hex nut | M6-ZNS3 | 0.000 kg | 0.24 €0.24 $ | |||
| 10 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
| 11 | 11611247478 | Gasket Steel | 0.007 kg | 16.42 €16.42 $ | ||||
| 12 | 11611247752 | FLANGE | 0.248 kg | 99.44 €99.44 $ | ||||
| 13 | 11611247266 | INTAKE MANIFOLD UPPER PART | 2.095 kg | 276.70 €276.70 $ | ||||
| 14 | 07129908103 | Stud bolt | M6X35-ZN | 0.006 kg | 4.01 €4.01 $ | |||
| 15 | 11611435937 | Hex nut with plate | M7 | 0.010 kg | 0.27 €0.27 $ | |||
| 16 | 07119901683 | Hex Bolt with washer | M7X100-Z1 | 0.029 kg | 1.56 €1.56 $ | |||
| 17 | 11611734684 | Gasket Asbestos Free | 0.024 kg | 10.77 €10.77 $ | ||||
| 18 | 07119900509 | Hex Bolt with washer | M7X16-Z2 | 0.012 kg | 1.03 €1.03 $ | |||
| 19 | 11611437690 | O-ring | 76X2 | 0.002 kg | 11.23 €11.23 $ | |||
| 19 | 11611437691 | O-ring | 75X2,5 | 0.002 kg | 11.25 €11.25 $ |
