E36 320i M50 Sedan / Engine Electrical System/ Alternator Parts 90a
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

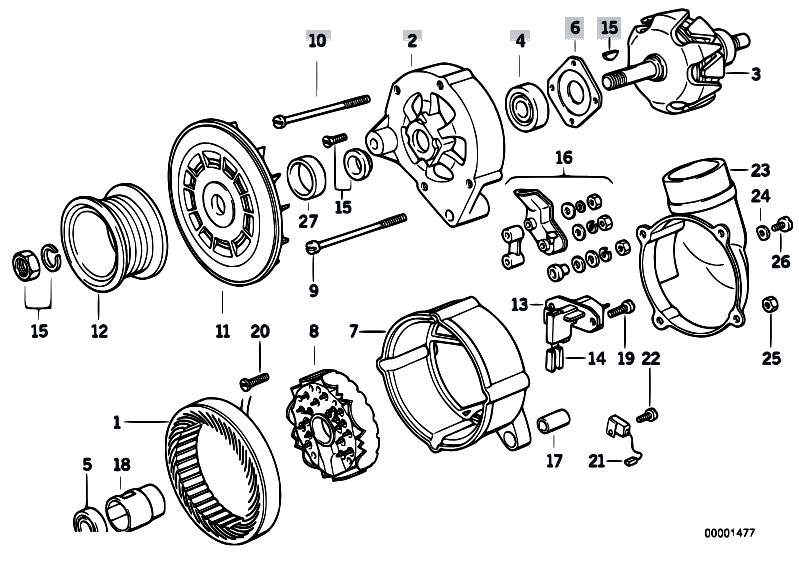

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 12311727759 | STATOR ASSY | 1.254 kg | 218.08 €218.08 $ | ||||
| 2 | 12311738093 | HOUSING ASSY FRONT | 0.618 kg | 0.00 €0.00 $ | ||||
| 3 | 12311738094 | Rotor | 2.446 kg | 0.00 €0.00 $ | ||||
| 4 | 12311747246 | GROOVED BALL BEARING | 52X17X17 | 0.170 kg | 42.09 €42.09 $ | |||
| 5 | 12311739203 | GROOVED BALL BEARING | 32X12X10 | 0.036 kg | 21.52 €21.52 $ | |||
| 6 | 12311747247 | Supporting plate | 0.045 kg | 7.33 €7.33 $ | ||||
| 7 | 12311738098 | HOUSING ASSY REAR | 0.568 kg | 50.39 €50.39 $ | ||||
| 8 | 12311735307 | DIODE ASSY | 0.250 kg | 75.08 €75.08 $ | ||||
| 9 | 12311738099 | Fillister head screw | 0.015 kg | 8.89 €8.89 $ | ||||
| 10 | 12311738101 | Fillister head screw | 0.012 kg | 4.30 €4.30 $ | ||||
| 11 | 12311726934 | Fan wheel | BOSCH/D=146MM | 0.172 kg | 49.71 €49.71 $ | |||
| 12 | 12311738067 | Pulley | D=61,8MM | 0.284 kg | 54.37 €54.37 $ | |||
| 13 | 12311726022 | Voltage regulator | 0.058 kg | 168.67 €168.67 $ | ||||
| 14 | 12311727756 | CARBON BRUSH SET | 0.006 kg | 17.52 €17.52 $ | ||||
| 15 | 12311727762 | REPAIR KIT ROTOR | 0.110 kg | 28.22 €28.22 $ | ||||
| 16 | 12311747252 | Set mounting parts | B+/D* | 0.048 kg | 30.82 €30.82 $ | |||
| 17 | 12311738103 | Bush | 0.044 kg | 9.76 €9.76 $ | ||||
| 18 | 12311735305 | Ring | 0.006 kg | 10.75 €10.75 $ | ||||
| 19 | 12311747251 | Fillister head screw | 0.003 kg | 2.64 €2.64 $ | ||||
| 20 | 12311727753 | Screw | 0.003 kg | 4.00 €4.00 $ | ||||
| 21 | 12311356564 | SUPPRESSION CAPACITOR ALTERNATOR | BOSCH | 0.012 kg | 22.21 €22.21 $ | |||
| 22 | 07119919412 | Fillister head screw | AM5X10 | 0.002 kg | 0.00 €0.00 $ | |||
| 23 | 12311730687 | Intake manifold | BOSCH | 0.095 kg | 30.76 €30.76 $ | |||
| 24 | 07119932047 | WAVE WASHER | B5 | 0.001 kg | 0.04 €0.04 $ | |||
| 25 | 07119922856 | Hex nut | M8-ZNS | 0.005 kg | 0.33 €0.33 $ | |||
| 26 | 07119907627 | Fillister head screw | M5X12 | 0.002 kg | 0.46 €0.46 $ |
