E36 M3 S50 Coupe / Radiator/ Radiator Expansion Tank Frame
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

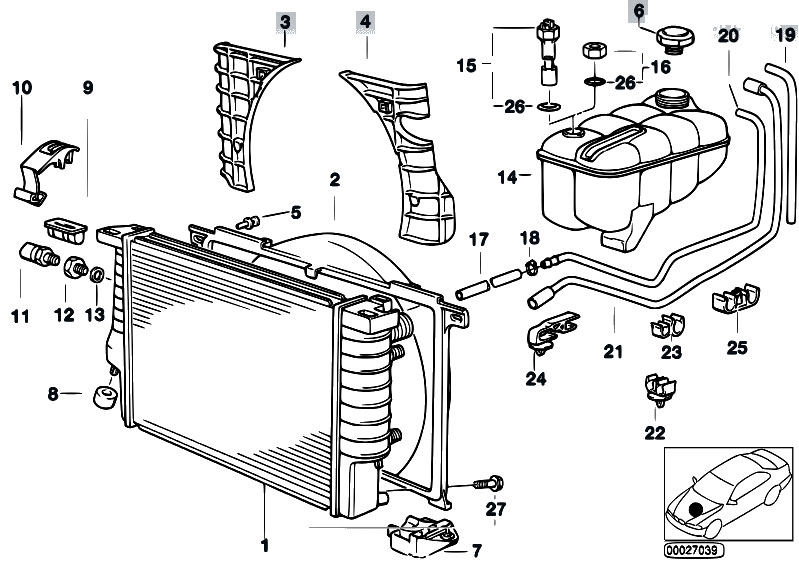

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 17112227281 | Radiator | A=550MM | 4.960 kg | 567.82 €567.82 $ | |||
| 2 | 17112227125 | Fan shroud | 0.401 kg | 0.00 €0.00 $ | ||||
| 2 | 17112227684 | Fan shroud | 0.390 kg | 75.59 €75.59 $ | ||||
| 3 | 17112228090 | Air duct, right | 0.143 kg | 32.74 €32.74 $ | ||||
| 4 | 17112227289 | Air duct, left | 0.058 kg | 32.74 €32.74 $ | ||||
| 5 | 17111712963 | Expanding rivet | 0.000 kg | 0.59 €0.59 $ | ||||
| 6 | 17111742231 | Radiator cap | 2,0BAR | 0.060 kg | 16.13 €16.13 $ | |||
| 7 | 17111723337 | BRACKET LOWER | 0.046 kg | 10.26 €10.26 $ | ||||
| 8 | 17111178412 | RUBBER BUFFER | 0.014 kg | 5.77 €5.77 $ | ||||
| 9 | 17201719414 | Rubber mounting | 0.005 kg | 5.15 €5.15 $ | ||||
| 10 | 17111723341 | Bracket upper | 0.022 kg | 8.68 €8.68 $ | ||||
| 11 | 61311378073 | DOUBLE TEMPERATURE SWITCH | 91/99CEL | 0.052 kg | 90.22 €90.22 $ | |||
| 12 | 07119919146 | Screw plug | M14X1,5-ZN/PBX | 0.016 kg | 1.94 €1.94 $ | |||
| 13 | 07119963201 | Gasket ring | A14X18-CU | 0.001 kg | 0.47 €0.47 $ | |||
| 14 | 17111712641 | EXPANSION TANK | 0.620 kg | 119.81 €119.81 $ | ||||
| 15 | 61311378320 | LEVELLING SWITCH RADIATOR | L=109MM | 0.030 kg | 59.94 €59.94 $ | |||
| 15 | 61312250421 | LEVELLING SWITCH RADIATOR | L=109MM | 0.040 kg | 65.16 €65.16 $ | |||
| 15 | 61318360458 | LEVELLING SWITCH RADIATOR | 0.037 kg | 83.54 €83.54 $ | ||||
| 15 | 61312250421 | LEVELLING SWITCH RADIATOR | L=109MM | 0.040 kg | 65.16 €65.16 $ | |||
| 15 | 61312250421 | LEVELLING SWITCH RADIATOR | L=109MM | 0.040 kg | 65.16 €65.16 $ | |||
| 17 | 17121712736 | Vent hose | 8X13MM | 0.120 kg | 50.31 €50.31 $ | |||
| 18 | 07129952104 | Hose clamp | L12-15 | 0.010 kg | 1.68 €1.68 $ | |||
| 19 | 17122227292 | Hose | 0.023 kg | 25.52 €25.52 $ | ||||
| 20 | 17112227482 | Vent pipe | L=1865MM | 0.046 kg | 39.56 €39.56 $ | |||
| 20 | 17112227483 | Vent pipe | L=1320MM | 0.035 kg | 25.37 €25.37 $ | |||
| 22 | 61131388997 | Cable holder | 0.002 kg | 17.52 €17.52 $ | ||||
| 22 | 17112227543 | Cable clip | 0.003 kg | 6.39 €6.39 $ | ||||
| 23 | 61131369832 | Bracket | 11,5/8,0MM | 0.000 kg | 2.87 €2.87 $ | |||
| 24 | 17112227223 | Hose clamp | 0.004 kg | 7.76 €7.76 $ | ||||
| 25 | 17111719190 | BRACKET EXPANSION TANK | 0.005 kg | 6.69 €6.69 $ | ||||
| 26 | 61311361249 | O-ring | D=19,3X2,4 | 0.001 kg | 5.84 €5.84 $ | |||
| 27 | 17111719384 | Drain plug radiator | M10 | 0.005 kg | 7.80 €7.80 $ |
