E39 530d M57 Touring / Rear Axle/ Single Components For Rear Spring Strut
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

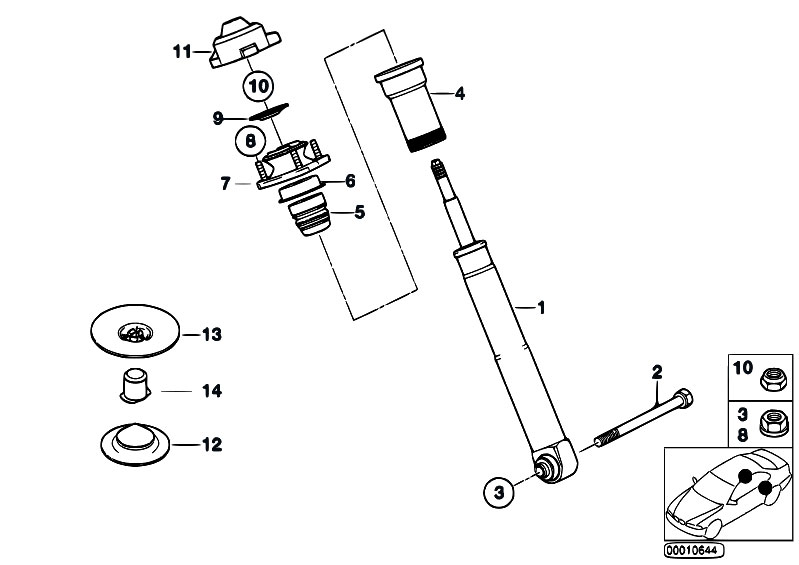

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33521094046 | Shock absorber, rear | 2.258 kg | 267.43 €267.43 $ | ||||
| 1 | 33521094052 | Shock absorber, rear | 2.240 kg | 401.14 €401.14 $ | ||||
| 1 | 33521094057 | Shock absorber, rear | 2.246 kg | 412.95 €412.95 $ | ||||
| 2 | 33521093856 | Hex Bolt | M14X1,5X180 | 0.231 kg | 14.96 €14.96 $ | |||
| 3 | 33321092384 | Original OEM part | 0.100 kg | 2.30 €2.30 $ | ||||
| 3 | 33326760380 | Combination nut | M14X1,5-10ZNS3 | 0.040 kg | 7.06 €7.06 $ | |||
| 4 | 33521092943 | Protection tube | 0.016 kg | 8.95 €8.95 $ | ||||
| 5 | 33531094724 | Additional damper, rear | 0.053 kg | 23.64 €23.64 $ | ||||
| 5 | 33531094065 | Additional damper, rear | 0.036 kg | 23.64 €23.64 $ | ||||
| 5 | 33531093924 | Additional damper, rear | 0.039 kg | 23.64 €23.64 $ | ||||
| 6 | 33521093417 | SUPPORTING CUP | 0.108 kg | 5.35 €5.35 $ | ||||
| 7 | 33521093416 | Guide support | 0.390 kg | 97.79 €97.79 $ | ||||
| 8 | 31331092887 | Self-locking collar nut | M8-8-ZNS | 0.007 kg | 0.49 €0.49 $ | |||
| 8 | 07119904295 | Self-locking collar nut | M8-8-ZNS3 | 0.010 kg | 0.40 €0.40 $ | |||
| 9 | 33521093415 | Plate | 0.054 kg | 2.05 €2.05 $ | ||||
| 10 | 31121095420 | Self-locking hex nut | M14X1,5 ZNFE | 0.010 kg | 0.72 €0.72 $ | |||
| 10 | 31106774714 | Self-locking hex nut | M14X1,5-05 ZNS3 | 0.020 kg | 3.04 €3.04 $ | |||
| 11 | 33521093418 | PROTECTION CAP | 0.022 kg | 14.91 €14.91 $ | ||||
| 12 | 33531093785 | SPRING PAD LOWER | 0.090 kg | 10.42 €10.42 $ | ||||
| 13 | 33531093786 | SPRING PAD UPPER | 0.080 kg | 9.68 €9.68 $ | ||||
| 14 | 33531093787 | Cover | 0.010 kg | 4.65 €4.65 $ |
