E39 M5 S62 Sedan / Seats/ Through Loading Facility Rear Seat
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

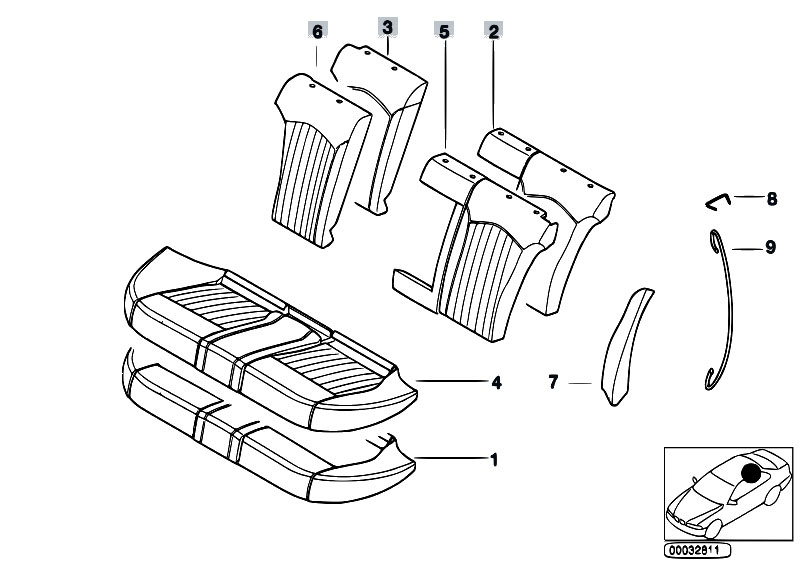

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 52202498846 | FOAM PLASTIC SEAT | 5.290 kg | 190.74 €190.74 $ | ||||
| 1 | 52208159678 | FOAM PLASTIC SEAT | B7/N6/N9/P2 | 5.040 kg | 331.72 €331.72 $ | |||
| 1 | 52208176176 | FOAM PLASTIC SEAT | 5.100 kg | 165.84 €165.84 $ | ||||
| 2 | 52208176231 | LEFT BACKREST FOAM PLASTIC PART | 1.055 kg | 198.78 €198.78 $ | ||||
| 3 | 52208176232 | Foam section, backrest, right | 0.912 kg | 126.48 €126.48 $ | ||||
| 4 | 52202498913 | Seat cover cloth | F2AT ANTHRAZIT | 1.180 kg | 709.86 €709.86 $ | |||
| 4 | 52202499738 | Seat cover, leather | O5SW,O6SW SCHW. | 1.320 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52202499740 | Seat cover, leather | O5IM,O6IM SCHW. | 1.320 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52202499742 | Seat cover, leather | O5LB,O6LB BLAU | 1.320 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52202499744 | Seat cover, leather | O5SS,O6SS SILV | 1.320 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52202499808 | Seat cover, leather | M1SW,M3SW SCHW. | 1.350 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52202499810 | Seat cover, leather | M1CR,M3CR CARAM | 1.350 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52202499812 | Seat cover, leather | M1EG,M3EG GRUEN | 1.350 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52207902308 | Seat cover, leather | M1SW,M3SW SCHW. | 1.490 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52207902539 | Seat cover, leather | M1CR,M3CR CARAM | 1.490 kg | 1,002.13 €1,002.13 $ | |||
| 4 | 52207902540 | Seat cover, leather | M1EG,M3EG CARAM | 1.490 kg | 1,002.13 €1,002.13 $ | |||
| 5 | 52202498789 | Cover backrest, leather, left | F2AT ANTHRAZIT | 0.690 kg | 512.70 €512.70 $ | |||
| 5 | 52202499757 | Cover backrest, leather, left | O5SW,O6SW SCHW: | 0.750 kg | 723.78 €723.78 $ | |||
| 5 | 52202499759 | Cover backrest, leather, left | O5IM,O6IM ROT | 0.750 kg | 723.78 €723.78 $ | |||
| 5 | 52202499761 | Cover backrest, leather, left | O5LB,O6LB BLAU | 0.750 kg | 922.21 €922.21 $ | |||
| 5 | 52202499763 | Cover backrest, leather, left | O5SS,O6SS SILV. | 0.750 kg | 723.78 €723.78 $ | |||
| 5 | 52202499827 | Cover backrest, leather, left | M1SW,M3SW SCHW. | 0.710 kg | 723.78 €723.78 $ | |||
| 5 | 52202499829 | Cover backrest, leather, left | M1CR,M3CR CARAM | 0.710 kg | 723.78 €723.78 $ | |||
| 5 | 52202499831 | Cover backrest, leather, left | M1EG,M3EG GRUEN | 0.710 kg | 723.78 €723.78 $ | |||
| 5 | 52207902312 | Cover backrest, leather, left | M1SW,M3SW SCHW. | 0.800 kg | 723.78 €723.78 $ | |||
| 5 | 52207902543 | Cover backrest, leather, left | M1CR,M3CR CARAM | 0.800 kg | 723.78 €723.78 $ | |||
| 5 | 52207902545 | Cover backrest, leather, left | M1EG,M3EG GRUEN | 0.800 kg | 723.78 €723.78 $ | |||
| 6 | 52202498790 | Cover backrest, leather, right | F2AT ANTHRAZIT | 0.500 kg | 354.96 €354.96 $ | |||
| 6 | 52202499758 | Cover backrest, leather, right | O5SW,O6SW SCHW. | 0.560 kg | 501.09 €501.09 $ | |||
| 6 | 52202499760 | Cover backrest, leather, right | O5IM,O6IM ROT | 0.560 kg | 501.09 €501.09 $ | |||
| 6 | 52202499762 | Cover backrest, leather, right | O5LB,O6LB BLAU | 0.560 kg | 501.09 €501.09 $ | |||
| 6 | 52202499764 | Cover backrest, leather, right | O5SS,O6SS SILV. | 0.560 kg | 501.09 €501.09 $ | |||
| 6 | 52202499828 | Cover backrest, leather, right | M1SW,M3SW SCHW: | 0.570 kg | 501.09 €501.09 $ | |||
| 6 | 52202499830 | Cover backrest, leather, right | M1CR,M3CR CARAM | 0.570 kg | 501.09 €501.09 $ | |||
| 6 | 52202499832 | Cover backrest, leather, right | M1EG,M3EG GRUEN | 0.570 kg | 501.09 €501.09 $ | |||
| 6 | 52207902318 | Cover backrest, leather, right | M1SW,M3SW SCHW. | 0.590 kg | 501.09 €501.09 $ | |||
| 6 | 52207902544 | Cover backrest, leather, right | M1CR,M3CR CARAM | 0.590 kg | 501.09 €501.09 $ | |||
| 6 | 52207902546 | Cover backrest, leather, right | M1EG,M3EG GRUEN | 0.590 kg | 501.09 €501.09 $ | |||
| 7 | 52202498803 | LATERAL TRIM PANEL LEFT | F2AT ANTHRAZIT | 0.000 kg | 189.35 €189.35 $ | |||
| 7 | 52202498804 | LATERAL TRIM PANEL RIGHT | F2AT ANTHRAZIT | 0.000 kg | 189.35 €189.35 $ | |||
| 7 | 52202698865 | LATERAL TRIM PANEL LEFT | O5SW,O6SW SCHW. | 0.980 kg | 253.25 €253.25 $ | |||
| 7 | 52202698866 | LATERAL TRIM PANEL RIGHT | O5SW,O6SW SCHW. | 0.980 kg | 253.25 €253.25 $ | |||
| 7 | 52202698867 | LATERAL TRIM PANEL LEFT | O5IM,O6IM ROT | 0.980 kg | 253.25 €253.25 $ | |||
| 7 | 52202698868 | LATERAL TRIM PANEL RIGHT | O5IM,O6IM ROT | 0.980 kg | 253.25 €253.25 $ | |||
| 7 | 52202698869 | LATERAL TRIM PANEL LEFT | O5LB,O6LB BLAU | 0.980 kg | 312.91 €312.91 $ | |||
| 7 | 52202698870 | LATERAL TRIM PANEL RIGHT | O5LB,O6LB BLAU | 0.980 kg | 253.25 €253.25 $ | |||
| 7 | 52202698871 | LATERAL TRIM PANEL LEFT | O5SS,O6SS SILV. | 1.070 kg | 253.25 €253.25 $ | |||
| 7 | 52202698872 | LATERAL TRIM PANEL RIGHT | O5SS,O6SS SILV. | 1.070 kg | 253.25 €253.25 $ | |||
| 7 | 52202499947 | LATERAL TRIM PANEL LEFT | M1SW,M3SW SCHW. | 1.030 kg | 253.25 €253.25 $ | |||
| 7 | 52202499948 | LATERAL TRIM PANEL RIGHT | M1SW,M3SW SCHW. | 1.030 kg | 253.25 €253.25 $ | |||
| 7 | 52202499949 | LATERAL TRIM PANEL LEFT | M1CR,M3CR CARAM | 1.055 kg | 253.25 €253.25 $ | |||
| 7 | 52202499950 | LATERAL TRIM PANEL RIGHT | M1CR,M3CR CARAM | 1.001 kg | 253.25 €253.25 $ | |||
| 7 | 52202499951 | LATERAL TRIM PANEL LEFT | M1EG,M3EG GRUEN | 1.030 kg | 253.25 €253.25 $ | |||
| 7 | 52202499952 | LATERAL TRIM PANEL RIGHT | M1EG,M3EG GRUEN | 0.000 kg | 253.25 €253.25 $ | |||
| 7 | 52207902293 | LATERAL TRIM PANEL LEFT | M1SW,M3SW SCHW. | 0.000 kg | 253.25 €253.25 $ | |||
| 7 | 52207902294 | LATERAL TRIM PANEL RIGHT | M1SW,M3SW SCHW. | 0.000 kg | 253.25 €253.25 $ | |||
| 7 | 52207902509 | LATERAL TRIM PANEL LEFT | M1CR,M3CR CARAM | 0.000 kg | 253.25 €253.25 $ | |||
| 7 | 52207902510 | LATERAL TRIM PANEL RIGHT | M1CR,M3CR CARAM | 0.000 kg | 253.25 €253.25 $ | |||
| 7 | 52207902511 | LATERAL TRIM PANEL LEFT | M1EG,M3EG GRUEN | 0.000 kg | 253.25 €253.25 $ | |||
| 7 | 52207902512 | LATERAL TRIM PANEL RIGHT | M1EG,M3EG GRUEN | 0.000 kg | 253.25 €253.25 $ | |||
| 8 | 52101945543 | Clamp | 1,6X20X10,1 | 0.001 kg | 0.26 €0.26 $ | |||
| 9 | 52208129296 | WIRE-STRAP | L=1800MM | 0.037 kg | 6.77 €6.77 $ |
