E46 M3 CSL S54 Coupe / Rear Axle/ Rear Axle Carrier
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

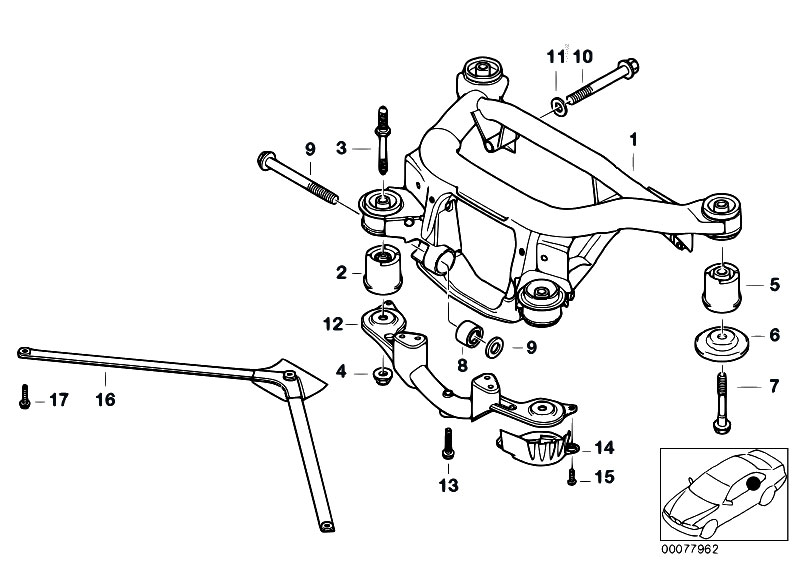

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33312282490 | REAR AXLE CARRIER | 13.770 kg | 1,156.10 €1,156.10 $ | ||||
| 2 | 33312283573 | RUBBER MOUNTING front left | 0.320 kg | 46.79 €46.79 $ | ||||
| 2 | 33312283574 | RUBBER MOUNTING front right | 0.320 kg | 46.79 €46.79 $ | ||||
| 3 | 33311094383 | Original OEM part | 0.100 kg | 3.31 €3.31 $ | ||||
| 3 | 33326760360 | Threaded bolt | M12X1,5 ZNS3 | 0.010 kg | 11.02 €11.02 $ | |||
| 4 | 33321093103 | Original OEM part | 0.100 kg | 1.37 €1.37 $ | ||||
| 4 | 33326760374 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.030 kg | 5.92 €5.92 $ | |||
| 5 | 33312283419 | RUBBER MOUNTING rear | 0.320 kg | 73.47 €73.47 $ | ||||
| 6 | 33312282251 | Stopper, rear | 0.167 kg | 44.36 €44.36 $ | ||||
| 7 | 33321094476 | REDUCED-SHAFT BOLT | M12X1,5X116-8.8 | 0.110 kg | 1.96 €1.96 $ | |||
| 7 | 33326760361 | REDUCED-SHAFT BOLT | M12X1,5X116-8.8 | 0.110 kg | 9.46 €9.46 $ | |||
| 8 | 33172282484 | Rubber mounting front | 0.360 kg | 35.56 €35.56 $ | ||||
| 9 | 33172282077 | Hex Bolt with washer | M14X1,5X65-10.9 | 0.100 kg | 4.95 €4.95 $ | |||
| 10 | 23002282240 | Torx bolt | M12X50-8.8-ZN | 0.050 kg | 3.87 €3.87 $ | |||
| 10 | 23001222891 | Torx bolt | M12X50-8.8-ZNS3 | 0.060 kg | 5.42 €5.42 $ | |||
| 11 | 07119931021 | Washer | A13 | 0.010 kg | 0.33 €0.33 $ | |||
| 12 | 33312229295 | PUSH ROD | 1.540 kg | 230.69 €230.69 $ | ||||
| 13 | 33311093957 | Hex Bolt with washer | M8X20,5-8.8 | 0.020 kg | 0.50 €0.50 $ | |||
| 13 | 33326760345 | Hex Bolt with washer | M8X20,5-8.8ZNS3 | 0.020 kg | 8.62 €8.62 $ | |||
| 14 | 33312229748 | Heat resistant plate | 0.055 kg | 27.46 €27.46 $ | ||||
| 15 | 07119913015 | Hex Bolt | M6X16-8.8-ZNS | 0.006 kg | 1.35 €1.35 $ | |||
| 16 | 33312229899 | ROD | 2.800 kg | 274.85 €274.85 $ | ||||
| 17 | 33306760652 | Hex Bolt with washer | M10X35-Z1-10.9 | 0.030 kg | 2.85 €2.85 $ |
