E46 M3 CSL S54 Coupe / Rear Axle/ Rear Axle Support Wheel Suspension
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

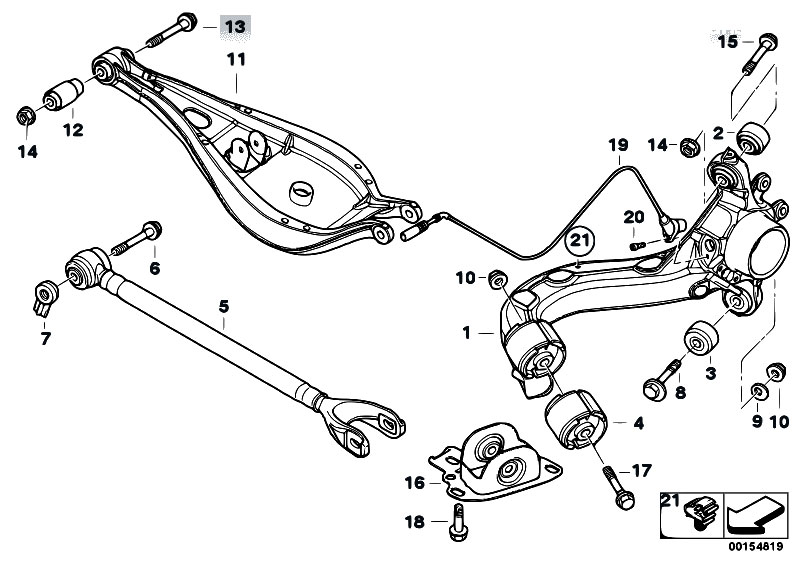

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33322229685 | Trailing arm, left | 10.110 kg | 572.92 €572.92 $ | ||||
| 1 | 33322229686 | Trailing arm, right | 10.110 kg | 572.92 €572.92 $ | ||||
| 2 | 33326775551 | Ball joint | 0.290 kg | 45.36 €45.36 $ | ||||
| 3 | 33326775551 | Ball joint | 0.290 kg | 45.36 €45.36 $ | ||||
| 4 | 33326770817 | Rubber mounting | 0.210 kg | 53.57 €53.57 $ | ||||
| 5 | 33322283074 | LOWER WISHBONE | 0.861 kg | 302.60 €302.60 $ | ||||
| 6 | 33171090824 | Hex Bolt with washer | M12X1.5X80-10.9 | 0.080 kg | 12.20 €12.20 $ | |||
| 7 | 33321136512 | Original OEM part | 0.100 kg | 4.84 €4.84 $ | ||||
| 7 | 33326760364 | Lock plate | ZNS3 | 0.040 kg | 8.81 €8.81 $ | |||
| 8 | 33321095102 | ECCENTRIC BOLT | M12X1,5X98 | 0.123 kg | 19.26 €19.26 $ | |||
| 9 | 33321092310 | Eccentric flat washer | 0.030 kg | 2.24 €2.24 $ | ||||
| 10 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.84 €1.84 $ | |||
| 11 | 33321094887 | Original OEM part | 0.100 kg | 164.69 €164.69 $ | ||||
| 11 | 33326781625 | UPPER LEFT WISHBONE | 2.510 kg | 156.39 €156.39 $ | ||||
| 11 | 33321094888 | Original OEM part | 0.100 kg | 164.69 €164.69 $ | ||||
| 11 | 33326781626 | UPPER RIGHT WISHBONE | 2.510 kg | 156.33 €156.33 $ | ||||
| 12 | 33321092247 | Rubber mounting | 0.090 kg | 15.67 €15.67 $ | ||||
| 13 | 33321090693 | Hex Bolt with washer | M12X1,5X88-10.9 | 0.089 kg | 8.65 €8.65 $ | |||
| 14 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.84 €1.84 $ | |||
| 15 | 33321094474 | Hex Bolt with washer | M12X100-10.9 | 0.100 kg | 3.83 €3.83 $ | |||
| 15 | 33176760343 | Hex Bolt with washer | M12X100-10.9 | 0.100 kg | 6.77 €6.77 $ | |||
| 16 | 33331096601 | Bracket, left | 0.530 kg | 17.91 €17.91 $ | ||||
| 16 | 33303411877 | Bracket, left | 0.610 kg | 48.00 €48.00 $ | ||||
| 16 | 33331096602 | Bracket, right | 0.530 kg | 14.45 €14.45 $ | ||||
| 16 | 33303411878 | Bracket, right | 0.610 kg | 45.09 €45.09 $ | ||||
| 17 | 33321094603 | Original OEM part | 0.100 kg | 1.45 €1.45 $ | ||||
| 17 | 33326760389 | Collar screw | M12X1,5X70-10.9 | 0.080 kg | 9.68 €9.68 $ | |||
| 18 | 33321097023 | Original OEM part | 0.100 kg | 1.26 €1.26 $ | ||||
| 18 | 33326760386 | Collar screw | M12X1,5X43 ZNS3 | 0.070 kg | 6.19 €6.19 $ | |||
| 19 | 34526752683 | Pulse generator, ABS rear | 0.083 kg | 144.36 €144.36 $ | ||||
| 20 | 07119901438 | Fillister head screw | M6X16-ZNS | 0.005 kg | 0.29 €0.29 $ | |||
| 20 | 07129905536 | Fillister head screw | M6X16 | 0.010 kg | 0.78 €0.78 $ | |||
| 21 | 34521164653 | Cable clip | 0.000 kg | 0.65 €0.65 $ |
