E52 Z8 S62 Roadster / Bodywork/ Mechanical Connect And Repair Elements
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

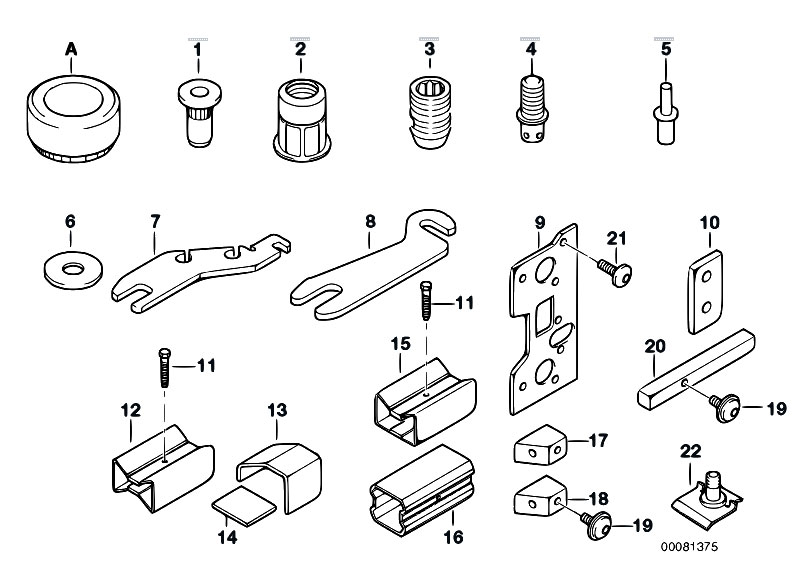

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 41117000240 | Blind rivet nut, flat headed | M6 | 0.000 kg | 1.30 €1.30 $ | |||
| 1 | 41358268548 | Blind rivet nut, countersunk head | M4 | 0.001 kg | 2.43 €2.43 $ | |||
| 1 | 41328245731 | Blind rivet nut, countersunk head | M5 | 0.002 kg | 4.00 €4.00 $ | |||
| 1 | 41118244332 | Blind rivet nut, flat headed | M6 | 0.010 kg | 1.42 €1.42 $ | |||
| 1 | 41148257673 | Blind rivet nut, countersunk head | M8 | 0.005 kg | 5.85 €5.85 $ | |||
| 1 | 41218260242 | Blind rivet nut, flat headed | M8 | 0.010 kg | 1.28 €1.28 $ | |||
| 1 | 07146989335 | Blind rivet nut, flat headed | M8 | 0.010 kg | 2.65 €2.65 $ | |||
| 1 | 41328257508 | Blind rivet nut, countersunk head | M6 | 0.003 kg | 2.64 €2.64 $ | |||
| 1 | 41118262614 | Blind rivet nut, countersunk head | M6 | 0.007 kg | 6.18 €6.18 $ | |||
| 1 | 07146989337 | Blind rivet nut, flat headed | M5 | 0.000 kg | 3.77 €3.77 $ | |||
| 2 | 41007029667 | Clip nut | M6 | 0.002 kg | 4.19 €4.19 $ | |||
| 2 | 41007029666 | Clip nut | M5 | 0.002 kg | 3.70 €3.70 $ | |||
| 2 | 41007029668 | Clip nut | M8 | 0.007 kg | 7.80 €7.80 $ | |||
| 3 | 41138257514 | Threaded plug | M14X1.5 | 0.015 kg | 6.66 €6.66 $ | |||
| 3 | 41138257512 | Original OEM part | 0.100 kg | 4.07 €4.07 $ | ||||
| 4 | 41347015032 | Rivet pin | M6 | 0.008 kg | 6.35 €6.35 $ | |||
| 4 | 41128244333 | Rivet pin with coarse thread | 0.005 kg | 5.35 €5.35 $ | ||||
| 4 | 07147116813 | Rivet pin | M5 | 0.000 kg | 3.00 €3.00 $ | |||
| 4 | 07147133779 | Rivet pin with coarse thread | M5X24MM | 0.000 kg | 3.12 €3.12 $ | |||
| 5 | 41007031969 | Blind rivet, flat headed | A6,5X16,3 | 0.003 kg | 3.16 €3.16 $ | |||
| 5 | 41007054489 | Blind rivet, flat headed | 6,5X14,9 | 0.000 kg | 3.15 €3.15 $ | |||
| 5 | 07147128043 | Blind rivet, countersunk head | 3,0X8,5 | 0.000 kg | 0.64 €0.64 $ | |||
| 5 | 41007031968 | Blind rivet, countersunk head | B4,0X11,2 | 0.000 kg | 1.03 €1.03 $ | |||
| 5 | 41007054490 | Blind rivet, flat headed | 6,5X18,3 | 0.003 kg | 3.32 €3.32 $ | |||
| 5 | 41007054384 | Blind rivet, flat headed | 6,5X14,3 | 0.000 kg | 3.11 €3.11 $ | |||
| 6 | 41357001794 | Spacer | 1.4MM | 0.001 kg | 1.61 €1.61 $ | |||
| 7 | 41617007969 | Spacer | 1.2MM | 0.010 kg | 8.81 €8.81 $ | |||
| 8 | 41618241418 | Spacer | 1.2MM | 0.008 kg | 14.96 €14.96 $ | |||
| 8 | 41618241419 | Spacer | 3.0MM | 0.019 kg | 12.71 €12.71 $ | |||
| 9 | 41217006239 | Lock plate, A column left | M8 | 0.455 kg | 72.82 €72.82 $ | |||
| 9 | 41217006240 | Lock plate, A column right | M8 | 0.455 kg | 72.82 €72.82 $ | |||
| 10 | 41217006289 | Lock plate, B column | M8 | 0.037 kg | 15.80 €15.80 $ | |||
| 11 | 41117006311 | Hex Bolt | M8X65 | 0.030 kg | 22.82 €22.82 $ | |||
| 12 | 41117006154 | Repair element, engine support | 0.147 kg | 55.39 €55.39 $ | ||||
| 13 | 41117006303 | Repair element,carrier, upper part | 0.029 kg | 68.17 €68.17 $ | ||||
| 14 | 41117006304 | Repair element,carrier, bottom part | 0.021 kg | 37.86 €37.86 $ | ||||
| 15 | 41117001444 | Repair element, side member, upper part | 0.103 kg | 53.89 €53.89 $ | ||||
| 16 | 41117001445 | Repair element, side member, bottom part | 0.144 kg | 46.31 €46.31 $ | ||||
| 17 | 41347001446 | Repair element, tail trim, top | 0.098 kg | 64.17 €64.17 $ | ||||
| 18 | 41347001447 | Repair element, tail trim, bottom | 0.081 kg | 62.08 €62.08 $ | ||||
| 19 | 51238234695 | Torx-bolt with washer | ISA M6X16 | 0.009 kg | 0.45 €0.45 $ | |||
| 20 | 41117006302 | Repair element, entrance | 0.058 kg | 35.05 €35.05 $ | ||||
| 21 | 41357003224 | Torx-bolt with washer | ISA M6X18 | 0.010 kg | 1.64 €1.64 $ | |||
| 22 | 41118386006 | EARTH PIN | M6 | 0.024 kg | 20.18 €20.18 $ | |||
| 22 | 41118386009 | EARTH PIN | M8 | 0.030 kg | 20.18 €20.18 $ |
