E52 Z8 S62 Roadster / Engine/ Cylinder Head
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

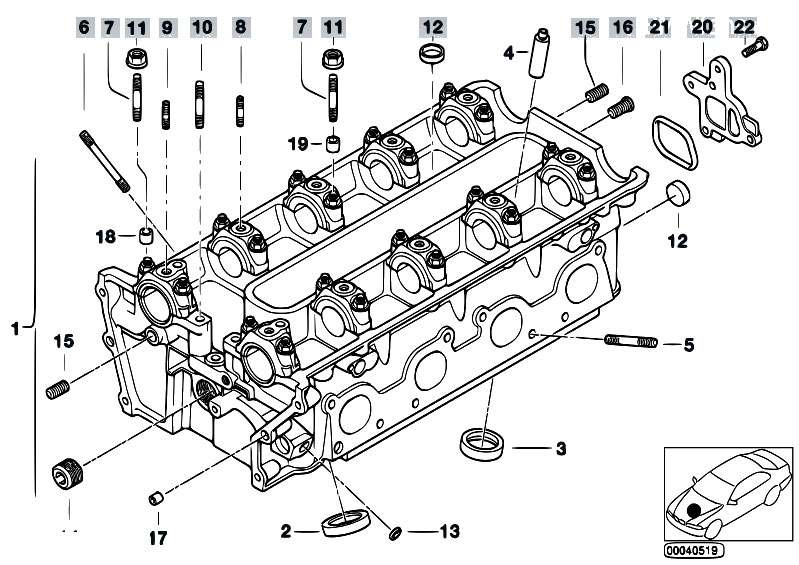

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11121407003 | Cylinder head | ZYL. 1-4 | 13.420 kg | 6,166.96 €6,166.96 $ | |||
| 1 | 11121407007 | Cylinder head | ZYL. 5-8 | 13.490 kg | 6,166.96 €6,166.96 $ | |||
| 2 | 11121432426 | Valve Seat Ring Intake | 36,50MM(+0,4) | 0.016 kg | 25.07 €25.07 $ | |||
| 3 | 11121432427 | Valve Seat Ring Exhaust | 32,00MM(+0,4) | 0.017 kg | 42.33 €42.33 $ | |||
| 4 | 11121735533 | Valve Guide | 12,7MM(+0,2) | 0.000 kg | 0.00 €0.00 $ | |||
| 5 | 07129908157 | Stud bolt | M8X42-10.9-PHR | 0.010 kg | 0.89 €0.89 $ | |||
| 6 | 07129901925 | Stud bolt | M7X45-ZNS | 0.011 kg | 2.23 €2.23 $ | |||
| 7 | 07129908191 | Stud bolt | M7X50-10.9-PHR | 0.010 kg | 2.23 €2.23 $ | |||
| 8 | 07129908102 | Stud bolt | M6X30-ZN | 0.004 kg | 0.51 €0.51 $ | |||
| 9 | 07129908100 | Stud bolt | M6X25-ZN | 0.000 kg | 1.68 €1.68 $ | |||
| 10 | 07129908191 | Stud bolt | M7X50-10.9-PHR | 0.010 kg | 2.23 €2.23 $ | |||
| 11 | 11617573839 | Flange nut | M7 | 0.000 kg | 3.08 €3.08 $ | |||
| 12 | 11121733403 | Cover lid | 22,0MM | 0.010 kg | 5.47 €5.47 $ | |||
| 13 | 11121736330 | Cover lid | 12,0MM | 0.002 kg | 3.95 €3.95 $ | |||
| 14 | 11121407412 | Screw plug | M26X1,5 | 0.013 kg | 7.51 €7.51 $ | |||
| 15 | 11127539543 | Screw plug | M10X1 | 0.000 kg | 17.45 €17.45 $ | |||
| 16 | 07119900680 | Screw plug | M10X1-ZNS | 0.003 kg | 0.70 €0.70 $ | |||
| 16 | 07119900680 | Screw plug | M10X1-ZNS | 0.003 kg | 0.70 €0.70 $ | |||
| 17 | 11121726242 | Dowel | D=8,5X9MM | 0.000 kg | 1.04 €1.04 $ | |||
| 18 | 11121713264 | Dowel | D=9,5MM | 0.000 kg | 10.27 €10.27 $ | |||
| 19 | 11121407564 | Dowel | 9,5/16,5MM | 0.003 kg | 8.45 €8.45 $ | |||
| 20 | 11127830118 | Cover | ZYL. 1-4 | 0.079 kg | 32.06 €32.06 $ | |||
| 20 | 11127830118 | Cover | ZYL. 1-4 | 0.079 kg | 32.06 €32.06 $ | |||
| 20 | 11127830117 | Cover | ZYL. 5-8 | 0.079 kg | 32.06 €32.06 $ | |||
| 20 | 11127830117 | Cover | ZYL. 5-8 | 0.079 kg | 32.06 €32.06 $ | |||
| 21 | 11127830119 | O-ring | 0.001 kg | 6.51 €6.51 $ | ||||
| 22 | 07119913114 | Hex Bolt with washer | M6X20-Z3-ZNS | 0.007 kg | 1.06 €1.06 $ |
