E52 Z8 S62 Roadster / Engine/ Oil Pan Upper Part Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

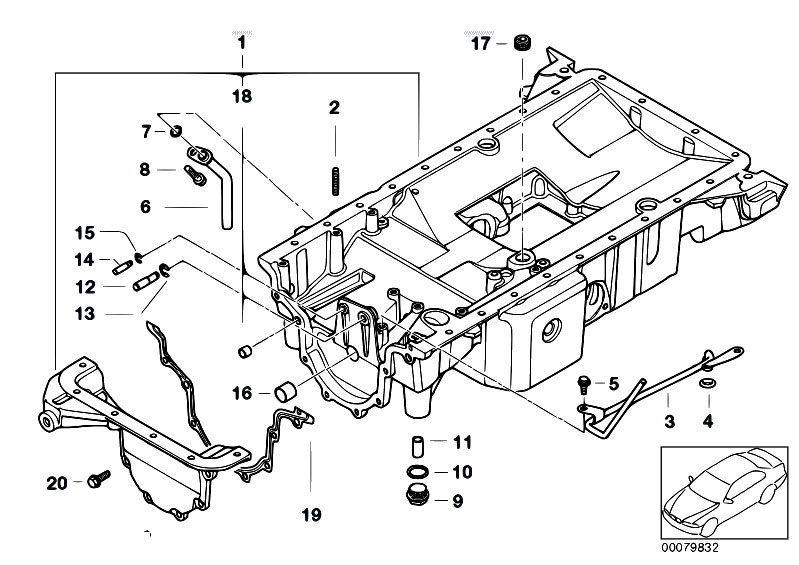

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11137831631 | Oil pan upper part | 5.676 kg | 1,759.78 €1,759.78 $ | ||||
| 2 | 07129908111 | Stud bolt | M6X28-ZN | 0.004 kg | 4.16 €4.16 $ | |||
| 3 | 11137831634 | Oil pipe | 0.055 kg | 53.47 €53.47 $ | ||||
| 4 | 11421713597 | O-ring | 6,0X2,5 | 0.000 kg | 3.76 €3.76 $ | |||
| 5 | 07119913115 | Hex Bolt with washer | M5X12-Z1-ZNS | 0.003 kg | 0.38 €0.38 $ | |||
| 6 | 11137831040 | OIL PIPE OUTLET | 0.034 kg | 41.48 €41.48 $ | ||||
| 7 | 11311317318 | O-ring | 10,0X2,0MM | 0.001 kg | 3.69 €3.69 $ | |||
| 8 | 07119900636 | Fillister head with washer | M6X16-Z1-ZNS | 0.006 kg | 0.58 €0.58 $ | |||
| 9 | 07119919249 | Screw plug | AM18X1,5-ZNS | 0.028 kg | 2.57 €2.57 $ | |||
| 10 | 07119963300 | Gasket ring | A18X22 | 0.000 kg | 1.14 €1.14 $ | |||
| 11 | 11137830631 | STRAINER | 0.002 kg | 18.71 €18.71 $ | ||||
| 12 | 11137831665 | Bearing bolt | 0.006 kg | 9.14 €9.14 $ | ||||
| 13 | 07119902284 | Circlip | 6 | 0.001 kg | 0.51 €0.51 $ | |||
| 14 | 11137831667 | Bearing bolt | 0.012 kg | 8.72 €8.72 $ | ||||
| 15 | 07119901544 | Circlip | 4 | 0.000 kg | 1.63 €1.63 $ | |||
| 16 | 11137830653 | Bush bearing | 0.005 kg | 7.24 €7.24 $ | ||||
| 17 | 07119903282 | Screw plug | M16X1,5-ZNS | 0.011 kg | 2.77 €2.77 $ | |||
| 18 | 11411722839 | Dowel | 0.000 kg | 2.87 €2.87 $ | ||||
| 19 | 11137830599 | Gasket | 0.016 kg | 36.89 €36.89 $ | ||||
| 20 | 07119901566 | Hex Bolt with washer | M6X22-Z1-ZNS | 0.007 kg | 0.43 €0.43 $ | |||
| 21 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ |
