E52 Z8 S62 Roadster / Engine/ Lubrication System Oil Pump With Drive
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

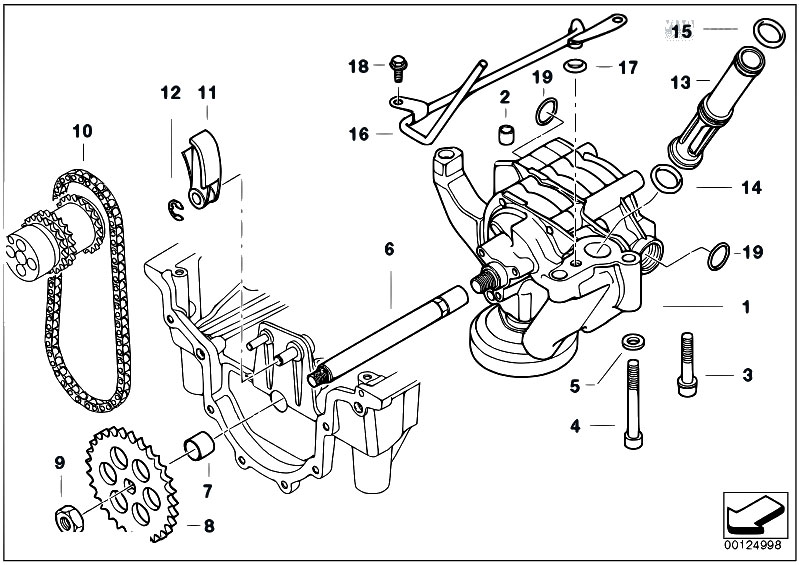

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11417830651 | Oil pump | 2.637 kg | 947.82 €947.82 $ | ||||
| 2 | 11121726238 | Dowel | D=10,5MM | 0.000 kg | 1.05 €1.05 $ | |||
| 3 | 07119901629 | Fillister head with washer | M8X40-Z0-ZNS | 0.020 kg | 2.27 €2.27 $ | |||
| 4 | 07119920152 | Fillister head screw | M8X60-ZNS | 0.030 kg | 0.81 €0.81 $ | |||
| 5 | 07119931019 | Washer | A8,4-ZNS | 0.002 kg | 0.49 €0.49 $ | |||
| 6 | 11417830652 | Drive Shaft | 0.196 kg | 50.31 €50.31 $ | ||||
| 7 | 11137830653 | Bush bearing | 0.005 kg | 8.10 €8.10 $ | ||||
| 8 | 11411406226 | Sprocket | 0.165 kg | 82.65 €82.65 $ | ||||
| 9 | 07119901301 | Hex nut | M10X1 | 0.005 kg | 0.81 €0.81 $ | |||
| 10 | 11311406167 | Chain | 0.233 kg | 88.45 €88.45 $ | ||||
| 11 | 11411407056 | CHAIN TENSIONER | 0.011 kg | 79.10 €79.10 $ | ||||
| 12 | 07119932842 | Circlip | 6,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 13 | 11137830633 | Oil pipe | 0.060 kg | 101.22 €101.22 $ | ||||
| 14 | 11421406872 | O-ring | 21X2,5MM | 0.001 kg | 3.24 €3.24 $ | |||
| 15 | 11421741129 | O-ring | 18,0X2,5MM | 0.000 kg | 3.77 €3.77 $ | |||
| 16 | 11137831634 | Oil pipe | 0.055 kg | 71.09 €71.09 $ | ||||
| 17 | 11421713597 | O-ring | 6,0X2,5 | 0.000 kg | 3.92 €3.92 $ | |||
| 18 | 07119913115 | Hex Bolt with washer | M5X12-Z1-ZNS | 0.003 kg | 0.38 €0.38 $ | |||
| 19 | 11441406693 | O-ring | 20X2,5MM | 0.001 kg | 2.62 €2.62 $ |
