E52 Z8 S62 Roadster / Engine/ Oil Pan Upper Part And Connecting Lines
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

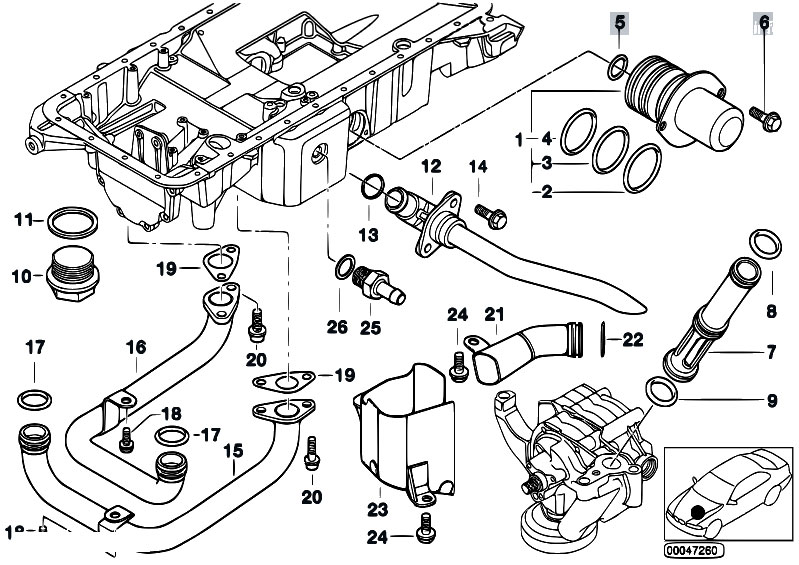

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11131407697 | Solenoid valve (SOLV) | 0.376 kg | 1,641.45 €1,641.45 $ | ||||
| 2 | 11137830114 | O-ring | 39,34X2,62MM | 0.001 kg | 9.34 €9.34 $ | |||
| 3 | 11137830113 | O-ring | 38X2,5MM | 0.001 kg | 7.62 €7.62 $ | |||
| 4 | 11137830112 | O-ring | 37X2,5MM | 0.001 kg | 8.56 €8.56 $ | |||
| 5 | 11441406693 | O-ring | 20X2,5MM | 0.001 kg | 2.62 €2.62 $ | |||
| 6 | 07119900250 | Hex Bolt with washer | M6X16-Z1-ZNS | 0.004 kg | 0.13 €0.13 $ | |||
| 6 | 07119904524 | Hex Bolt with washer | M6X16-U1-8.8 | 0.006 kg | 0.58 €0.58 $ | |||
| 7 | 11137830633 | Oil pipe | 0.060 kg | 101.22 €101.22 $ | ||||
| 8 | 11421741129 | O-ring | 18,0X2,5MM | 0.000 kg | 3.77 €3.77 $ | |||
| 9 | 11421406872 | O-ring | 21X2,5MM | 0.001 kg | 3.24 €3.24 $ | |||
| 10 | 07119903187 | Screw plug | AM30X1,5-ZNS | 0.070 kg | 4.47 €4.47 $ | |||
| 11 | 07119963466 | Gasket ring | A30X36-AL | 0.001 kg | 0.82 €0.82 $ | |||
| 12 | 11131407899 | OIL PIPE OUTLET | 0.072 kg | 102.07 €102.07 $ | ||||
| 13 | 11137830086 | O-ring | 24,0X2,0MM | 0.001 kg | 3.15 €3.15 $ | |||
| 14 | 07119901566 | Hex Bolt with washer | M6X22-Z1-ZNS | 0.007 kg | 0.43 €0.43 $ | |||
| 15 | 11137831632 | Suction pipe left | 0.152 kg | 93.15 €93.15 $ | ||||
| 16 | 11137831633 | Suction pipe right | 0.150 kg | 93.15 €93.15 $ | ||||
| 17 | 11131406559 | O-ring | 18X3MM | 0.001 kg | 3.45 €3.45 $ | |||
| 18 | 07119900272 | Hex Bolt with washer | M6X12-Z1-ZNS | 0.005 kg | 0.15 €0.15 $ | |||
| 19 | 11137831508 | Gasket | 0.002 kg | 4.19 €4.19 $ | ||||
| 20 | 07119900230 | Fillister head with washer | M5X20-ZNS | 0.005 kg | 0.27 €0.27 $ | |||
| 21 | 11137831110 | OIL PIPE OUTLET | 0.050 kg | 74.42 €74.42 $ | ||||
| 22 | 11411304178 | O-ring | 22X2 | 0.001 kg | 2.92 €2.92 $ | |||
| 23 | 11137831111 | Baffle plate | 0.147 kg | 188.98 €188.98 $ | ||||
| 24 | 07119900250 | Hex Bolt with washer | M6X16-Z1-ZNS | 0.004 kg | 0.13 €0.13 $ | |||
| 24 | 07119904524 | Hex Bolt with washer | M6X16-U1-8.8 | 0.006 kg | 0.58 €0.58 $ | |||
| 25 | 13321287132 | Connector | M14X1,5X44,5 | 0.030 kg | 13.81 €13.81 $ | |||
| 26 | 07119963200 | Gasket ring | A14X18-AL | 0.000 kg | 0.29 €0.29 $ |
