E60 530xi N52 Sedan / Front Axle/ Frnt Axle Support Wishbone Tension Strut
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

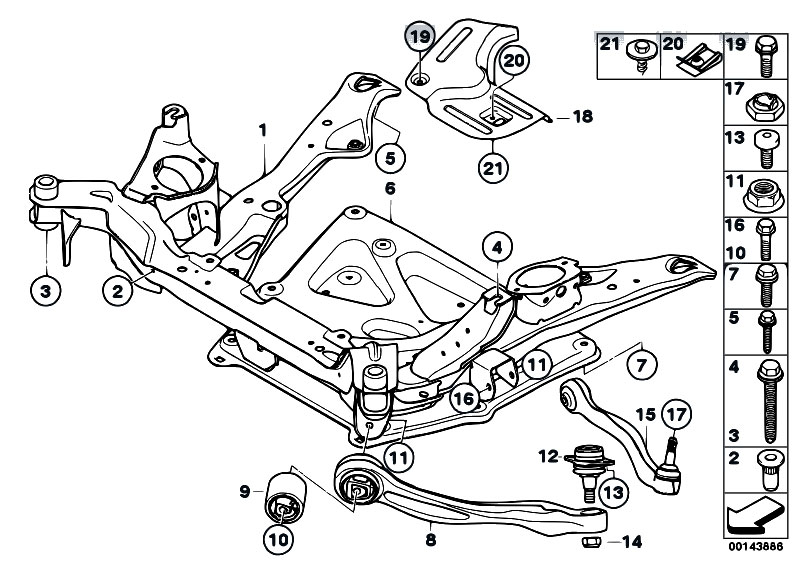

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 31106777362 | Front axle support | 19.500 kg | 6,401.26 €6,401.26 $ | ||||
| 1 | 31106777362 | Front axle support | 19.500 kg | 6,401.26 €6,401.26 $ | ||||
| 2 | 17117571134 | Blind rivet nut, flat headed | M6 | 0.000 kg | 1.65 €1.65 $ | |||
| 3 | 31106760222 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 0.110 kg | 9.85 €9.85 $ | |||
| 4 | 31106760222 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 0.110 kg | 9.85 €9.85 $ | |||
| 5 | 31106770256 | Hexagon screw with flange | M12X1,5X65-10.9 | 0.090 kg | 7.76 €7.76 $ | |||
| 6 | 31106768301 | Reinforcement plate | 2.310 kg | 762.05 €762.05 $ | ||||
| 7 | 31106772199 | Hexagon screw with flange | M10X35-10.9ZNS3 | 0.040 kg | 3.70 €3.70 $ | |||
| 8 | 31106770685 | LEFT tension strut WITH RUBBER MOUNTING | 1.970 kg | 234.72 €234.72 $ | ||||
| 8 | 31106770686 | Right tension strut with rubber mounting | 1.970 kg | 234.72 €234.72 $ | ||||
| 9 | 31120406872 | Set rubber mounting f pull rod | 0.411 kg | 57.81 €57.81 $ | ||||
| 10 | 07119902742 | Hex Bolt | M12X1,5X100 | 0.113 kg | 9.00 €9.00 $ | |||
| 11 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.84 €1.84 $ | |||
| 12 | 31126779840 | WHEEL SUSPENSION JOINT | 0.420 kg | 65.30 €65.30 $ | ||||
| 13 | 31106766780 | Flanged cap screw | M10X1,5X20-10.9 | 0.020 kg | 4.07 €4.07 $ | |||
| 14 | 31106755474 | Flange nut with washer | M14X1,5-10 | 0.080 kg | 1.74 €1.74 $ | |||
| 15 | 31126774827 | Wishbone, left | 1.000 kg | 242.24 €242.24 $ | ||||
| 15 | 31126774828 | Right wishbone | 1.000 kg | 242.24 €242.24 $ | ||||
| 16 | 07119905302 | Hex Bolt | 12X1,5X75-10.9 | 0.090 kg | 4.98 €4.98 $ | |||
| 17 | 31106768936 | Self-locking hex nut | M14X1,5-10.9 | 0.020 kg | 4.42 €4.42 $ | |||
| 18 | 31146768999 | Heat resistant plate | 0.160 kg | 34.88 €34.88 $ | ||||
| 19 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 19 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 20 | 07147154447 | Sheet metal nut, self-locking | 5,5MM | 0.000 kg | 0.61 €0.61 $ | |||
| 21 | 07147129160 | Hex head screw with washer | ST4,8X16MM | 0.010 kg | 0.58 €0.58 $ |
