E61 545i N62 Touring / Engine/ Emission Control Air Pump
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

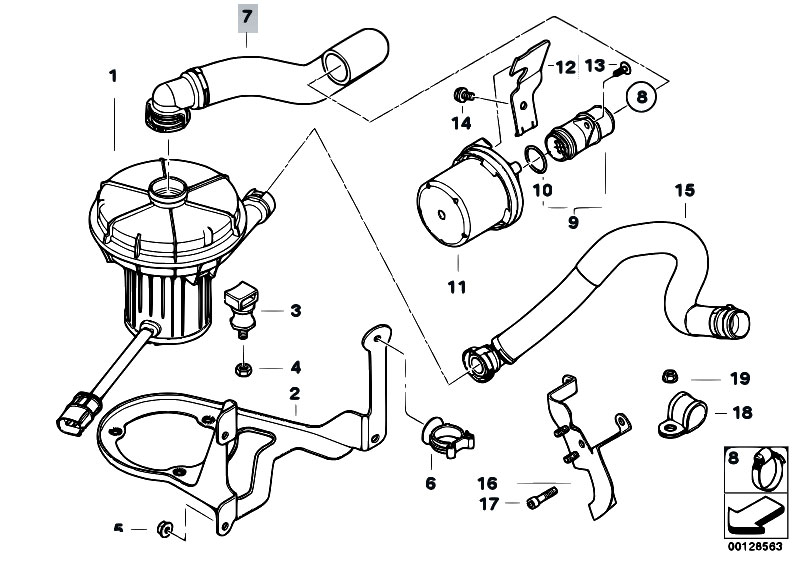

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11727506210 | AIR PUMP | 1.460 kg | 345.62 €345.62 $ | ||||
| 1 | 11727571589 | AIR PUMP | 1.460 kg | 481.22 €481.22 $ | ||||
| 2 | 11727527601 | SECONDARY AIR PUMP BRACKET | 0.390 kg | 57.71 €57.71 $ | ||||
| 3 | 11727506211 | Rubber mounting | 0.010 kg | 7.04 €7.04 $ | ||||
| 4 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 4 | 07119905544 | Hex nut | M6-8-ZNNIV SI | 0.000 kg | 0.40 €0.40 $ | |||
| 5 | 07129900681 | Hex nut with plate | AM6-ZNS | 0.003 kg | 0.22 €0.22 $ | |||
| 5 | 07129904553 | Hex nut with plate | AM6-8-ZNNIV SI | 0.000 kg | 0.74 €0.74 $ | |||
| 6 | 07147525090 | Hose clamp | 0.000 kg | 2.74 €2.74 $ | ||||
| 7 | 11727553096 | SUCTION HOSE | 0.120 kg | 44.43 €44.43 $ | ||||
| 8 | 33341138055 | Clamp | L=34,9-38,1 | 0.000 kg | 6.74 €6.74 $ | |||
| 9 | 11727520833 | Adapter | 0.020 kg | 7.96 €7.96 $ | ||||
| 10 | 07119904649 | O-ring | 25,12X1,78 | 0.000 kg | 1.37 €1.37 $ | |||
| 11 | 11727534722 | Secondary air filter | 0.080 kg | 23.00 €23.00 $ | ||||
| 12 | 11727520834 | Bracket secondary air filter | 0.050 kg | 21.02 €21.02 $ | ||||
| 13 | 51417067920 | Fillister head screw | TS 5X16 | 0.000 kg | 0.65 €0.65 $ | |||
| 14 | 07119903842 | Hex Bolt | M6X10 | 0.005 kg | 1.11 €1.11 $ | |||
| 15 | 11727556957 | Pressure hose assy | 0.180 kg | 51.48 €51.48 $ | ||||
| 16 | 11727506095 | Bracket | 0.090 kg | 12.16 €12.16 $ | ||||
| 17 | 07129905569 | Torx bolt | M6X25-ZNNIV SI | 0.007 kg | 0.93 €0.93 $ | |||
| 18 | 64531372613 | Hose clamp | 0.020 kg | 4.16 €4.16 $ | ||||
| 19 | 07129900681 | Hex nut with plate | AM6-ZNS | 0.003 kg | 0.22 €0.22 $ | |||
| 19 | 07129904553 | Hex nut with plate | AM6-8-ZNNIV SI | 0.000 kg | 0.74 €0.74 $ |
